Speed Sensor Signal Check (Test Mode)

Check the DTC.




1. Hook up the TOYOTA hand-held tester to the DLC3.
2. Start the engine.
3. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit .

4. Drive vehicle straight forward.

HINT: Drive vehicle at faster than 45 KPH (28 MPH) for several seconds.

5. Stop the vehicle.
6. Read the DTC by following the prompts on the tester screen.
Please refer to the TOYOTA hand-held tester operator's manual for further details.

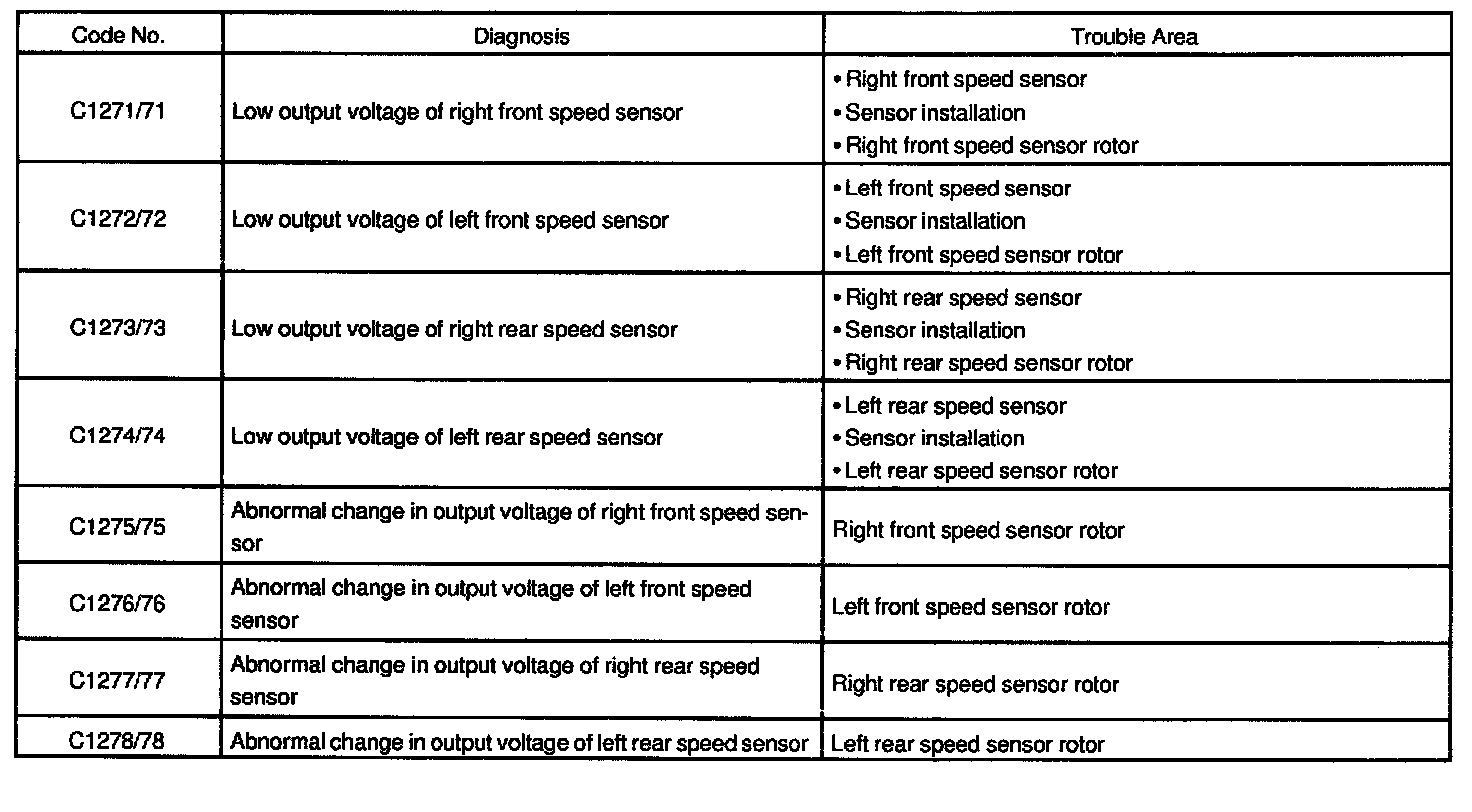

DTC of speed sensor check function:
