Electronic Brake Control Module

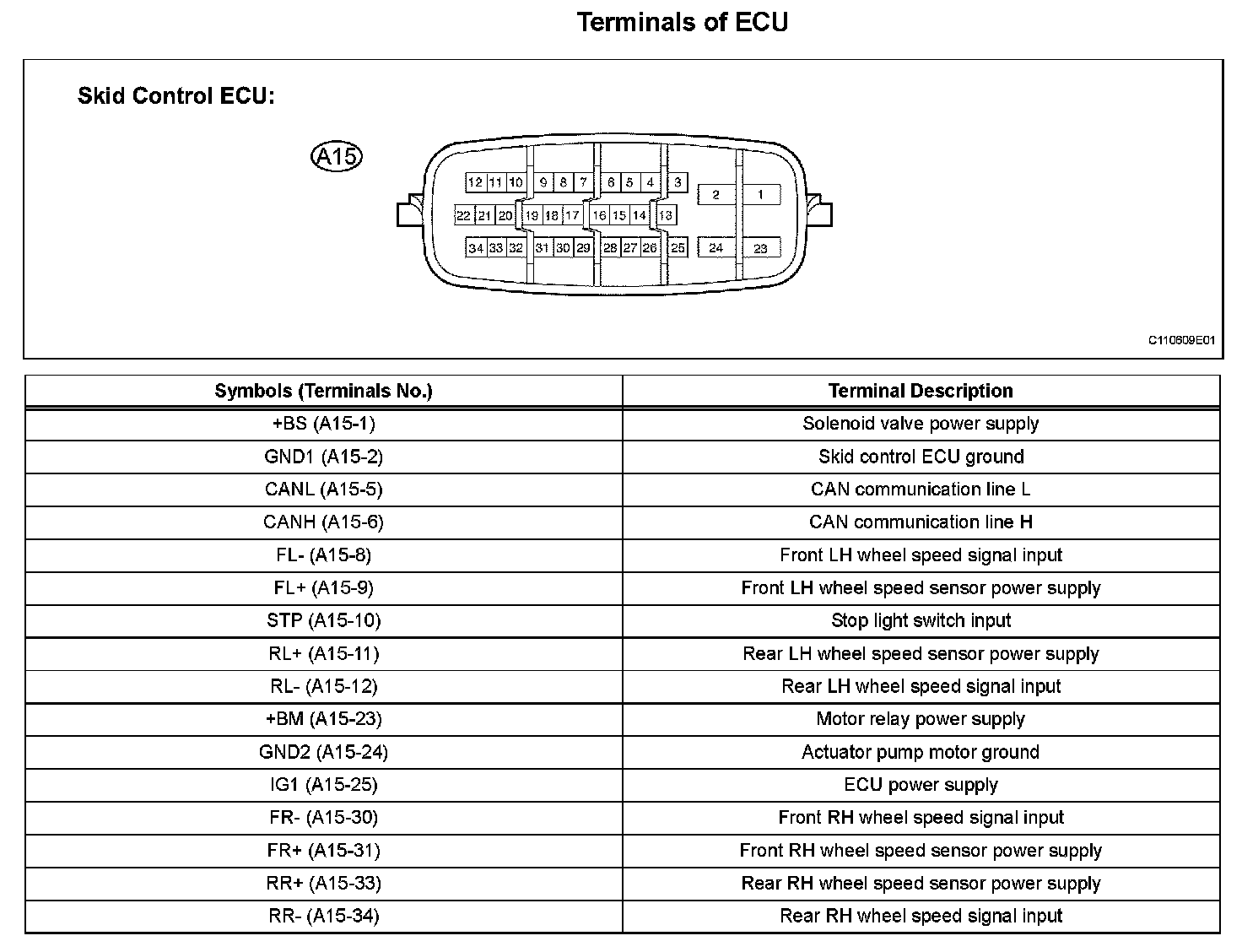

Terminals Of Control Module/Pinouts:

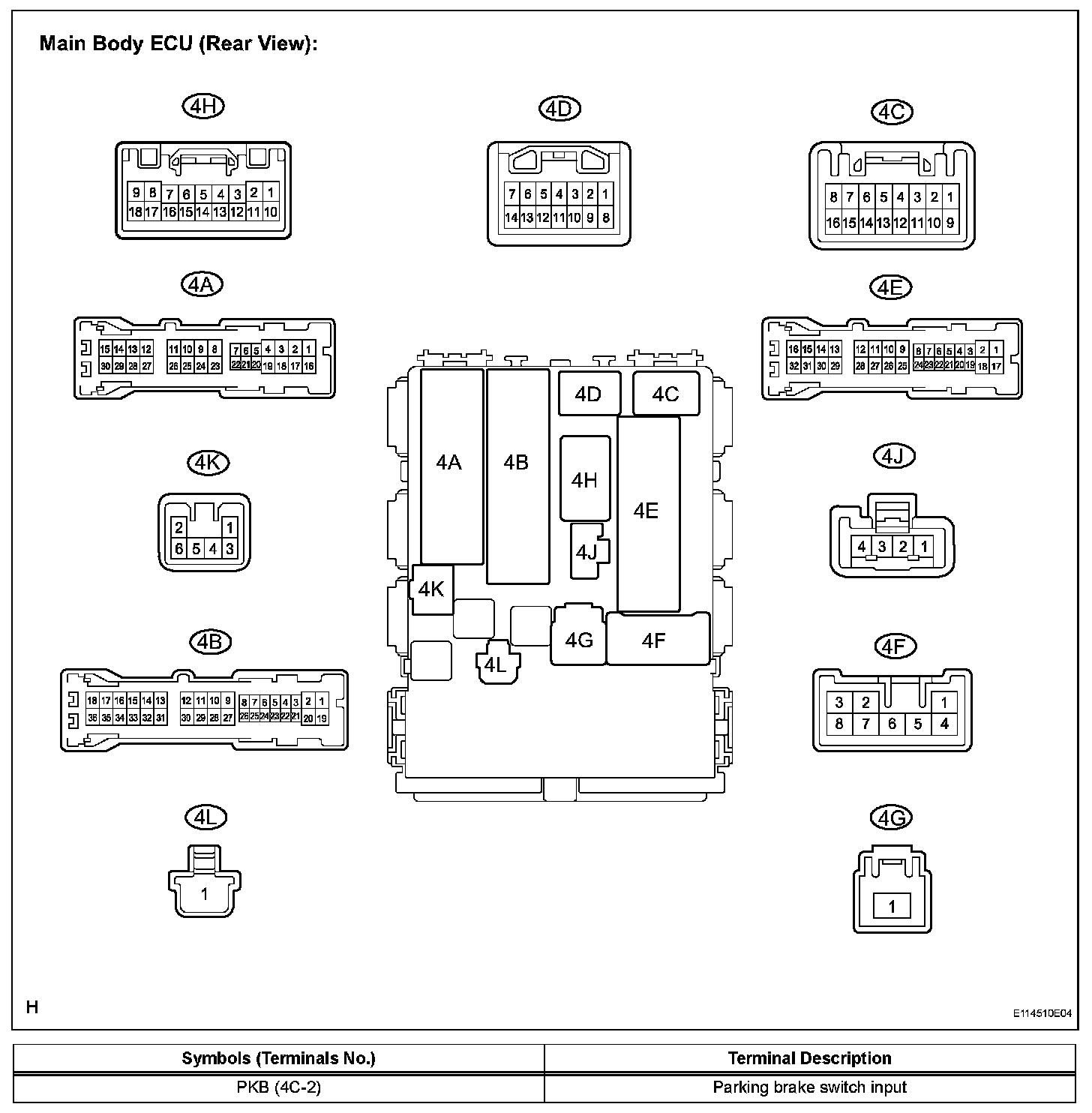

Terminals Of Control Module/Pinouts-Main Body ECU (Rear View):

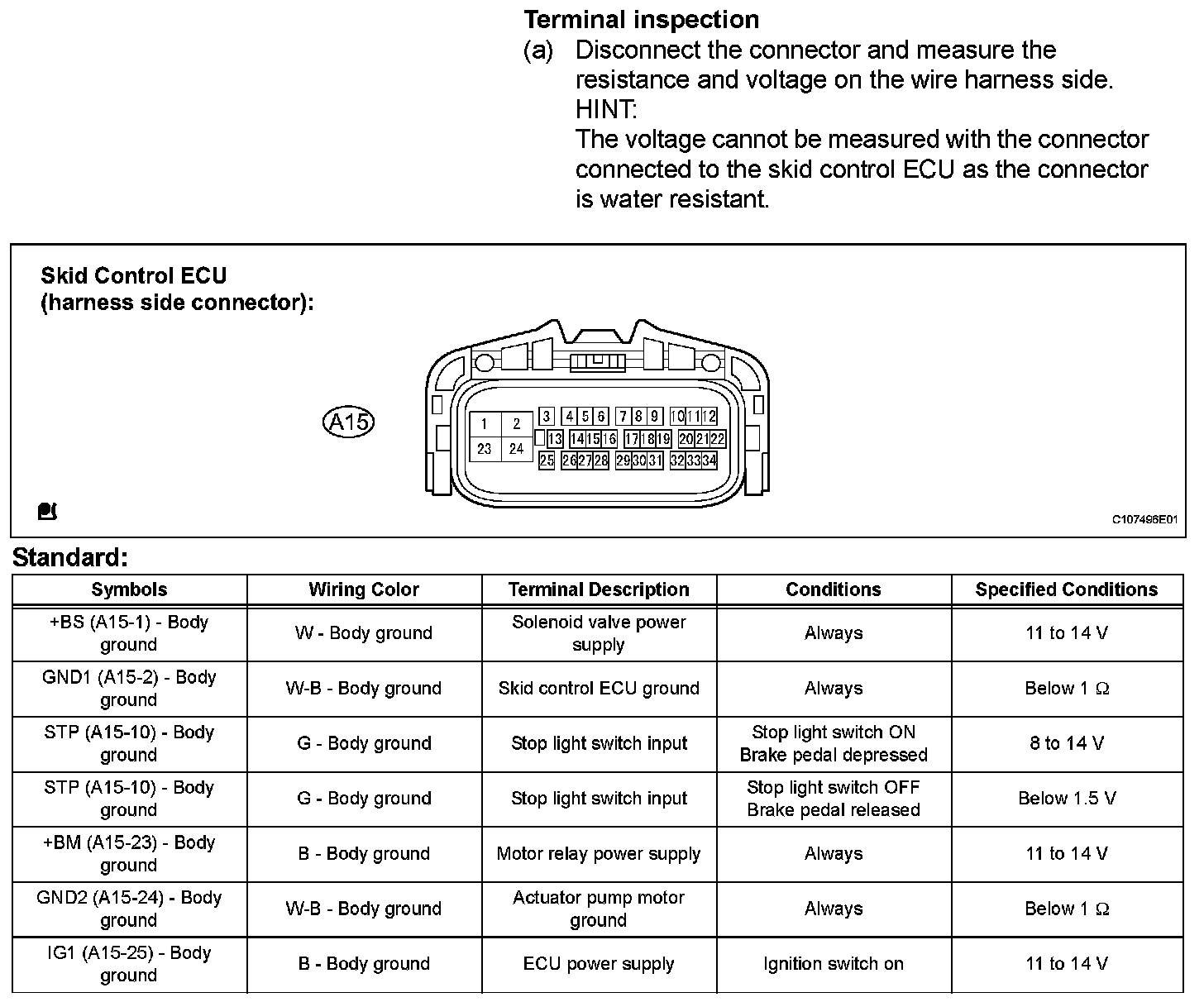

Terminals Of Control Module/Pinouts:

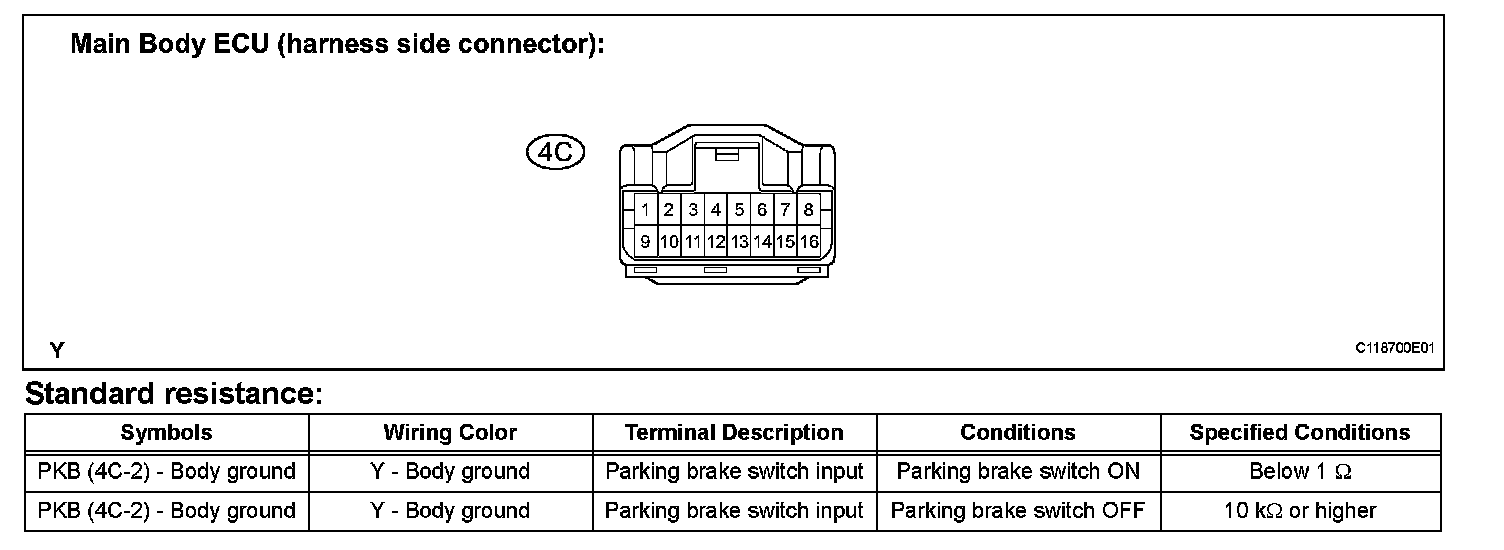

Terminals Of Control Module/Pinouts:
