Air Bag Systems

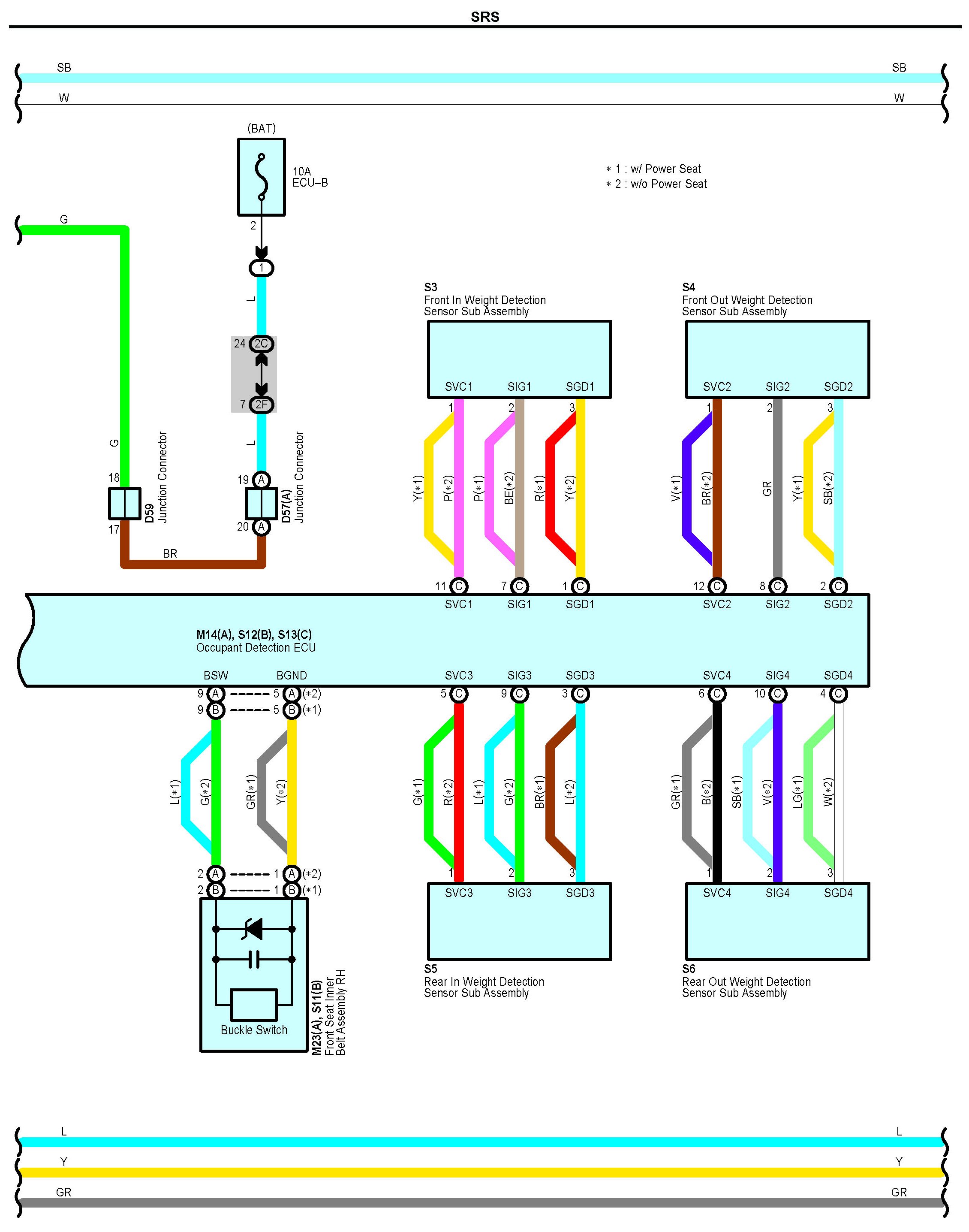

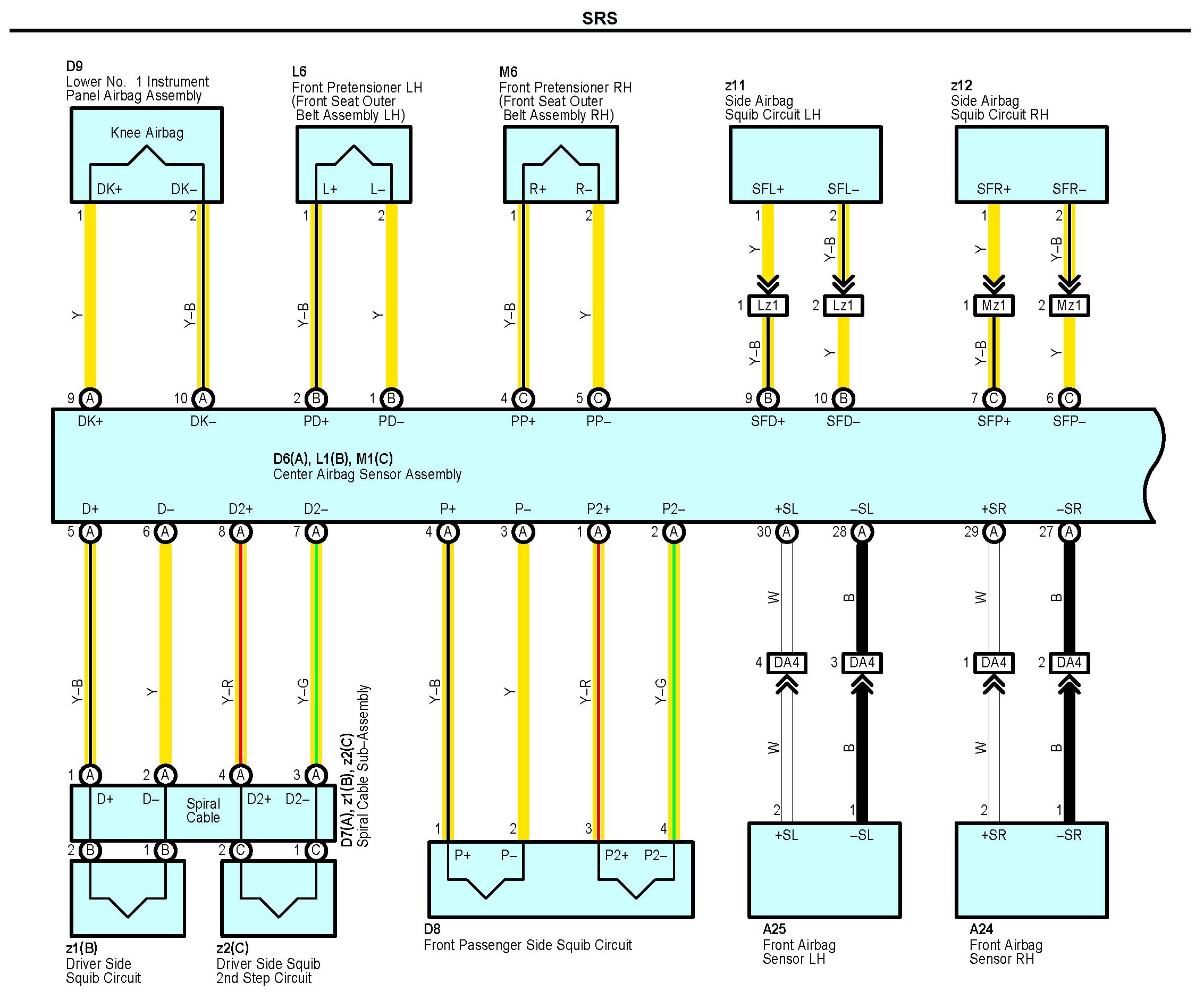

SRS Part 1:

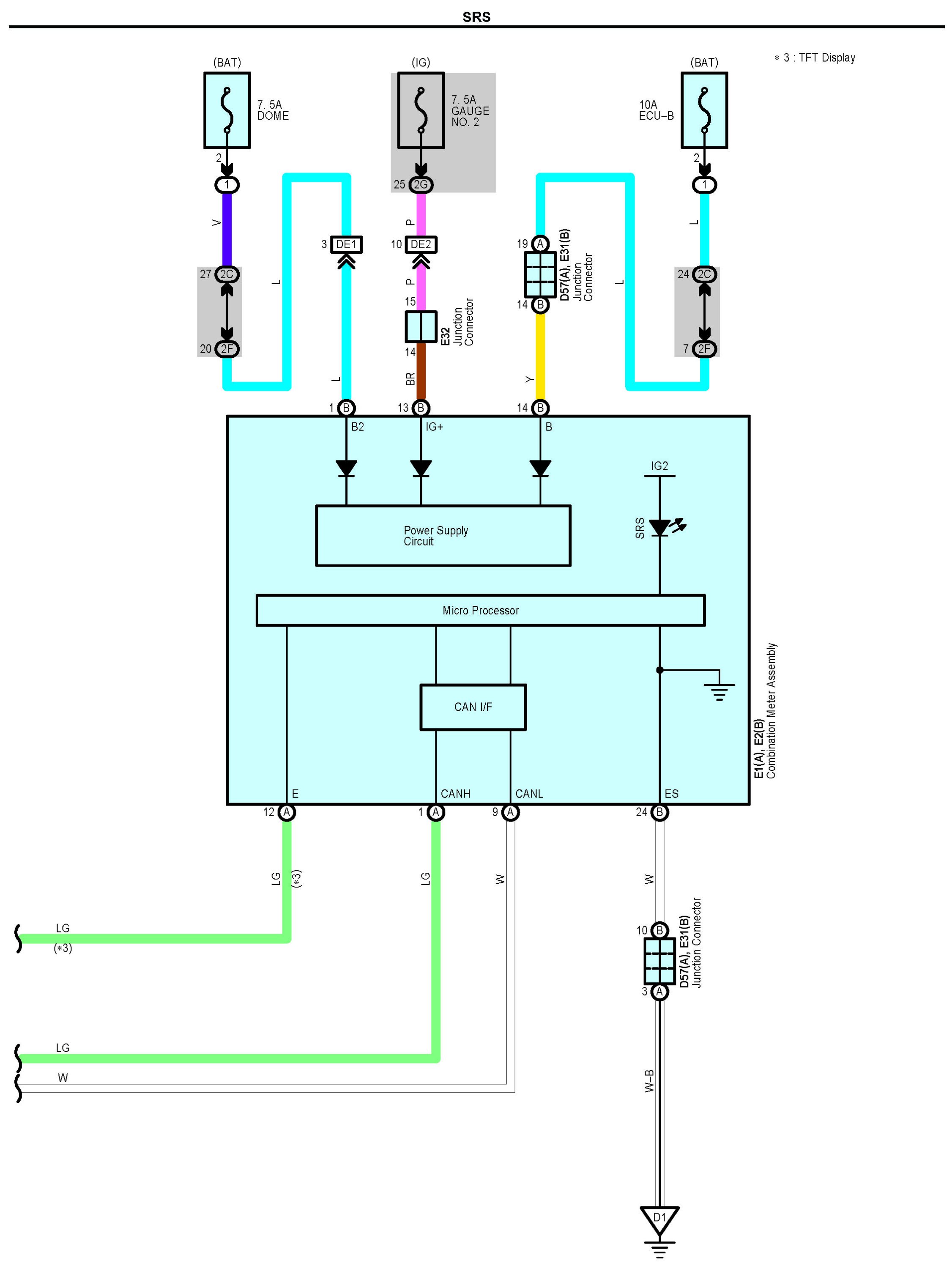

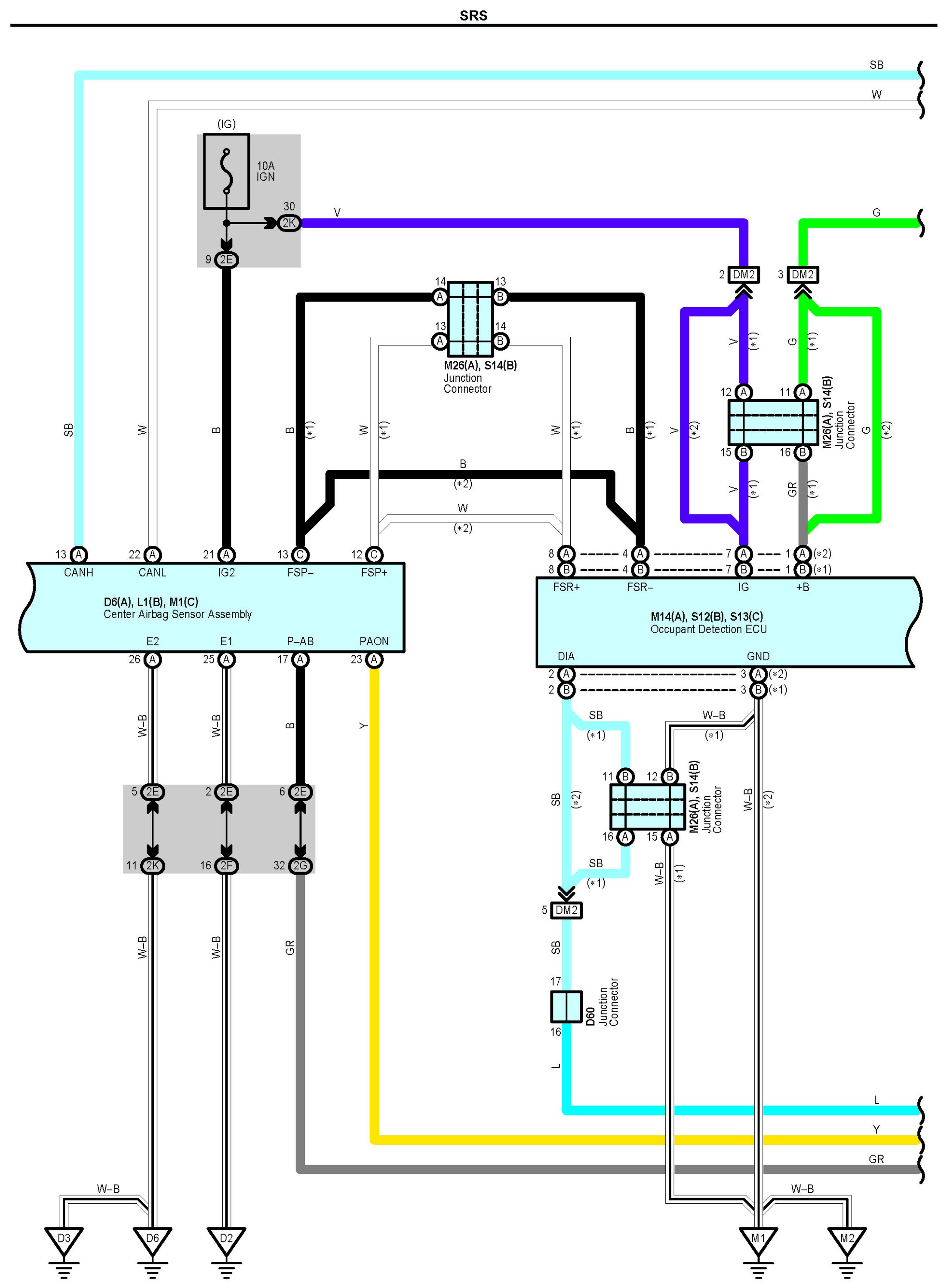

SRS Part 2:

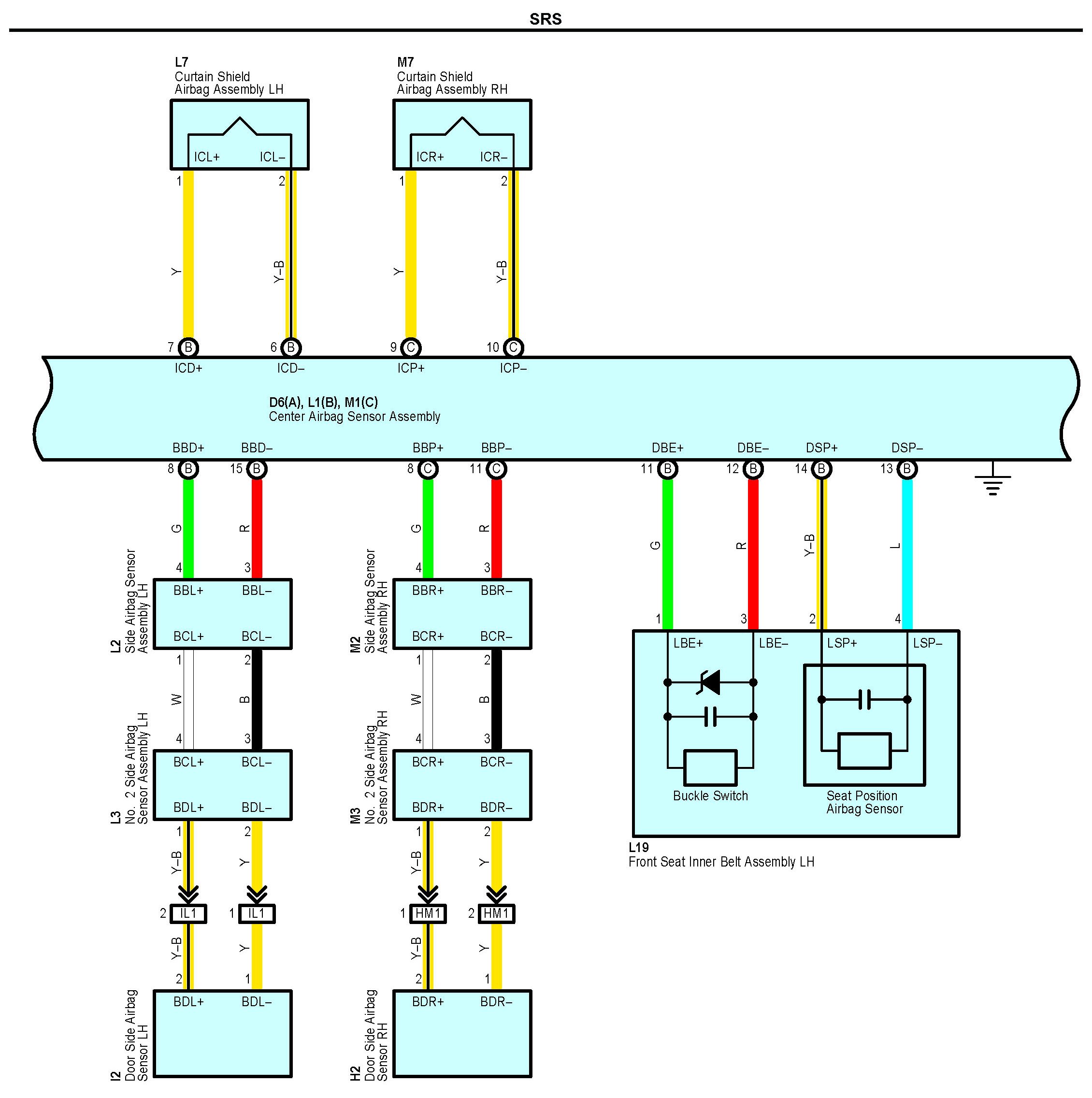

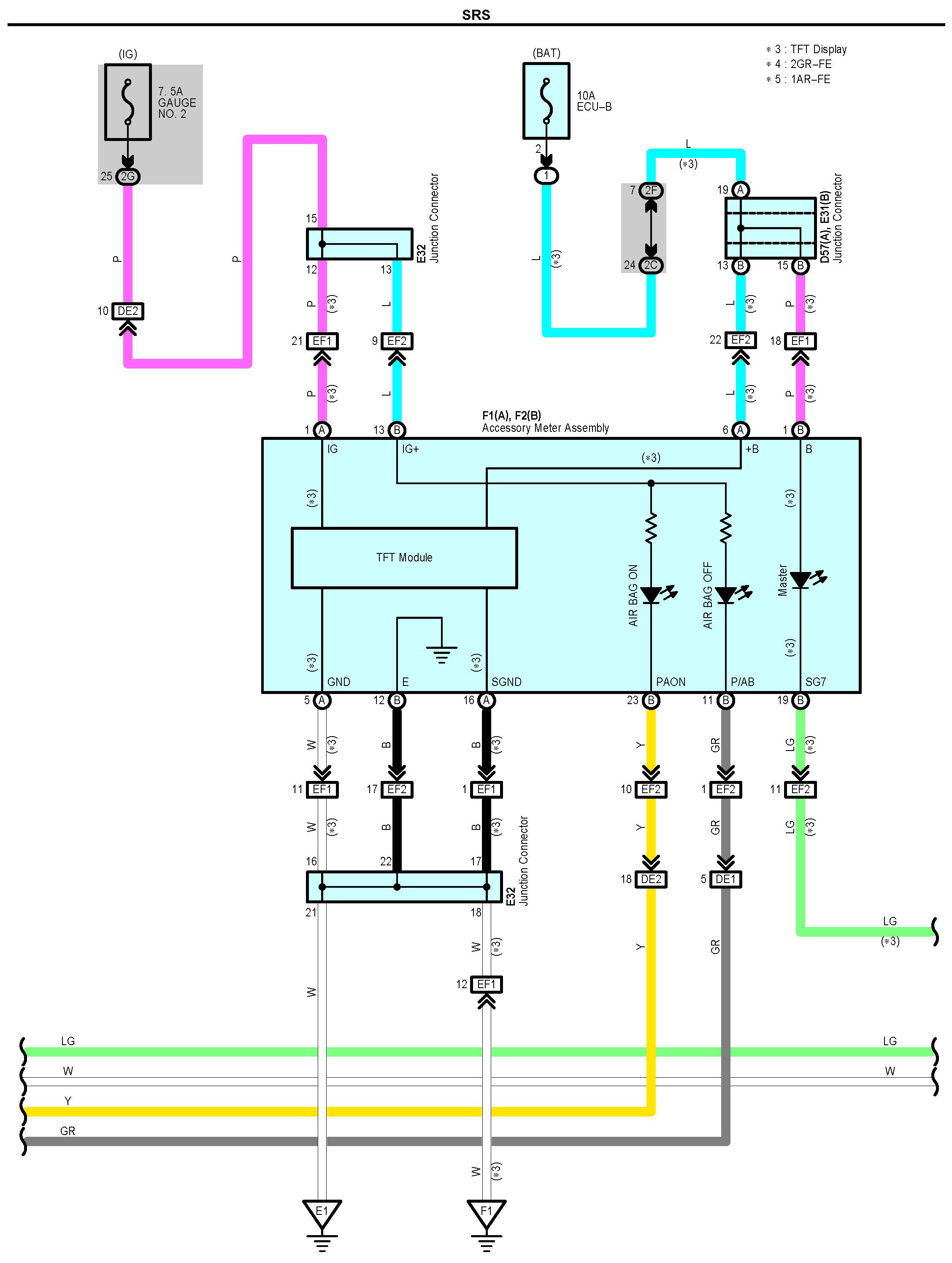

SRS Part 3:

SRS Part 4:

SRS Part 5:

SRS Part 6:

SRS Part 7:

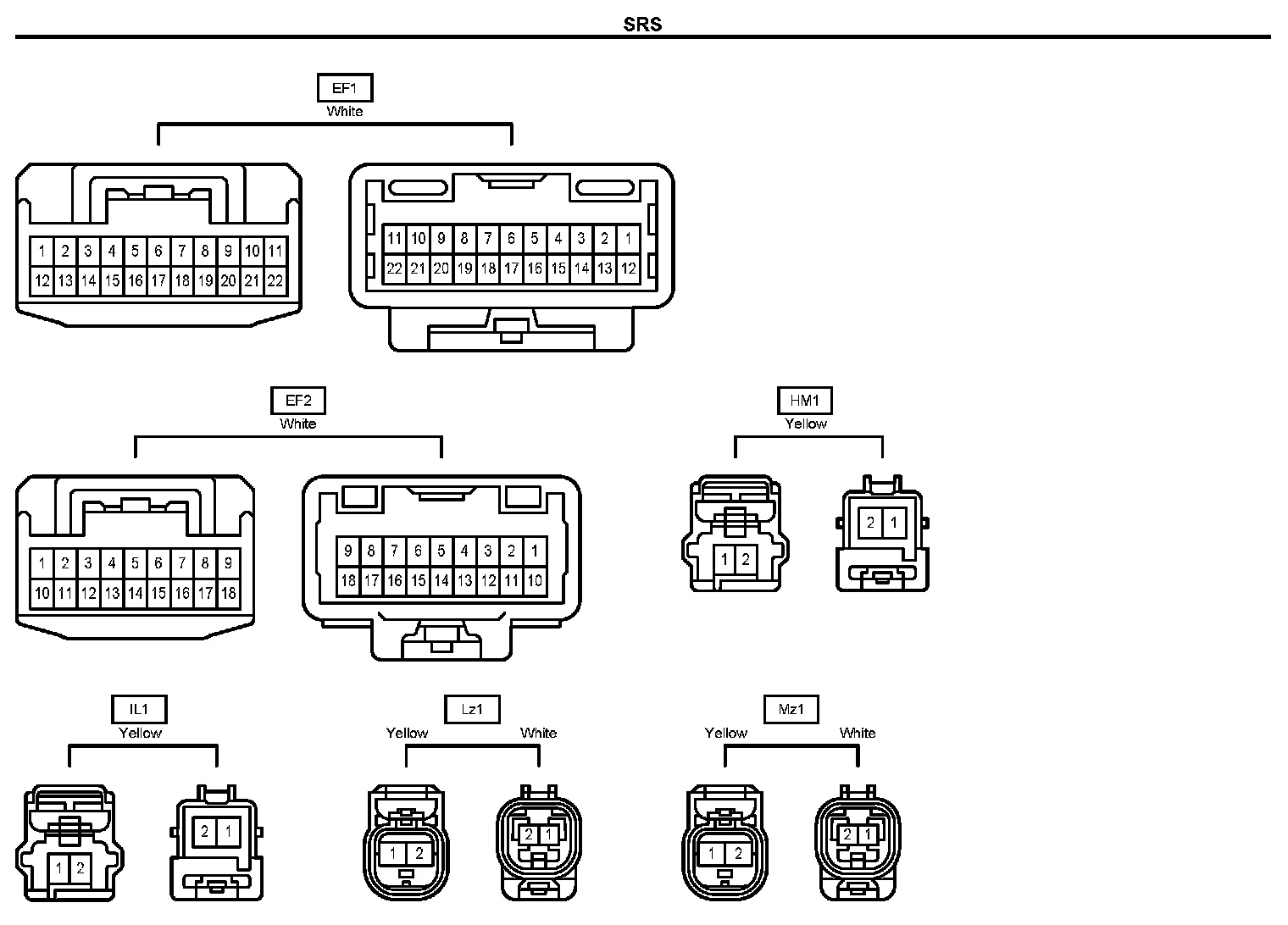

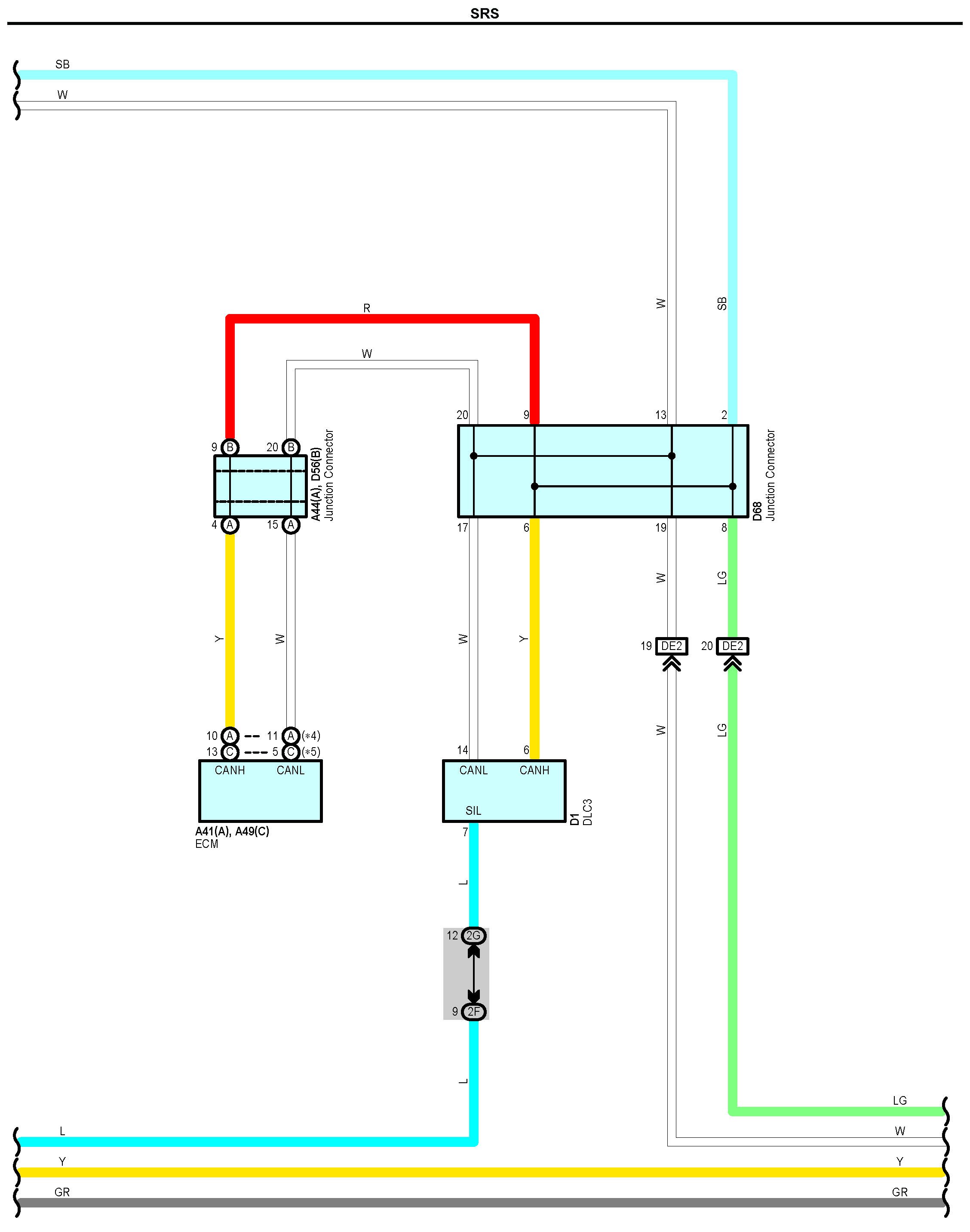

Connectors Part 1:

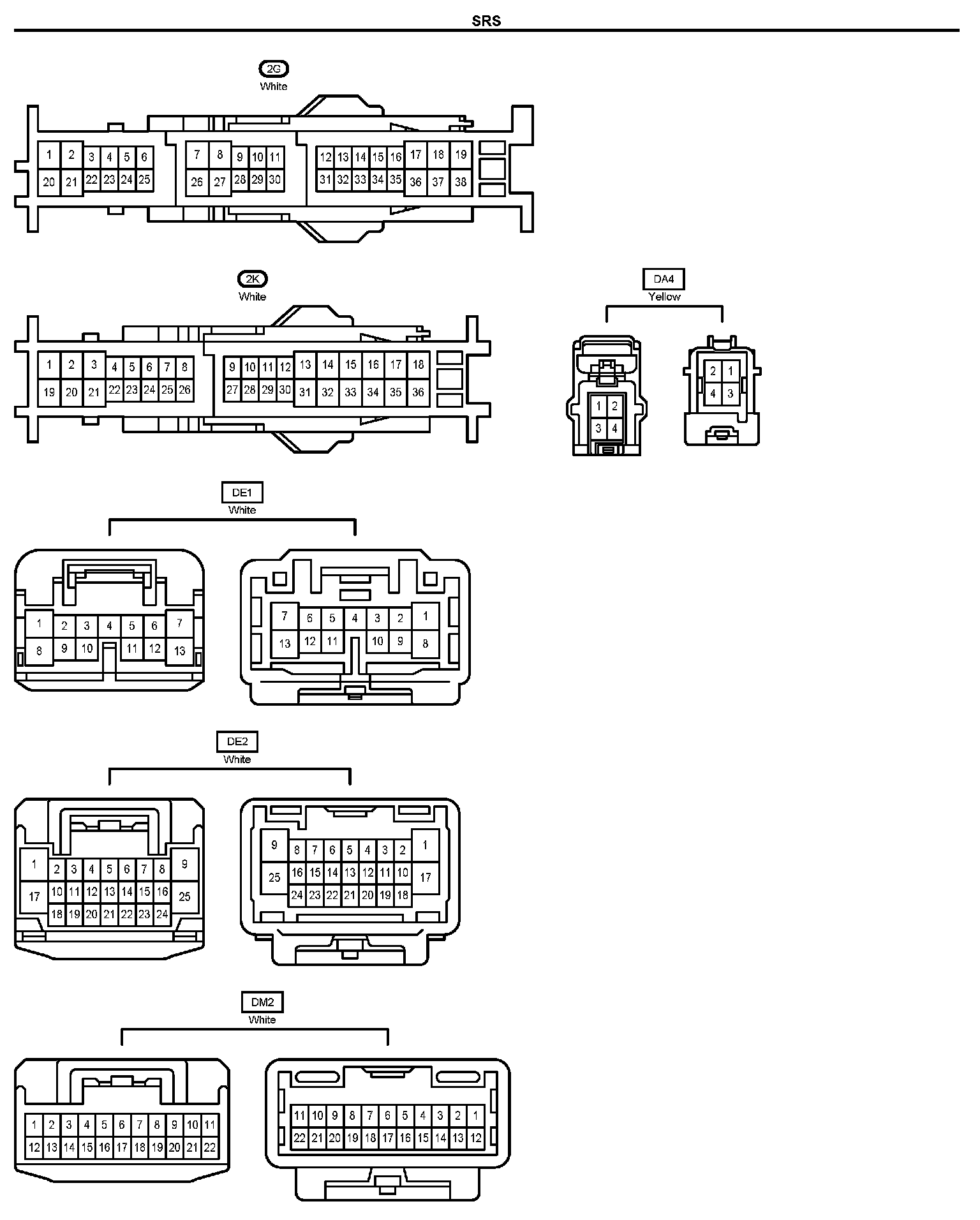

Connectors Part 2:

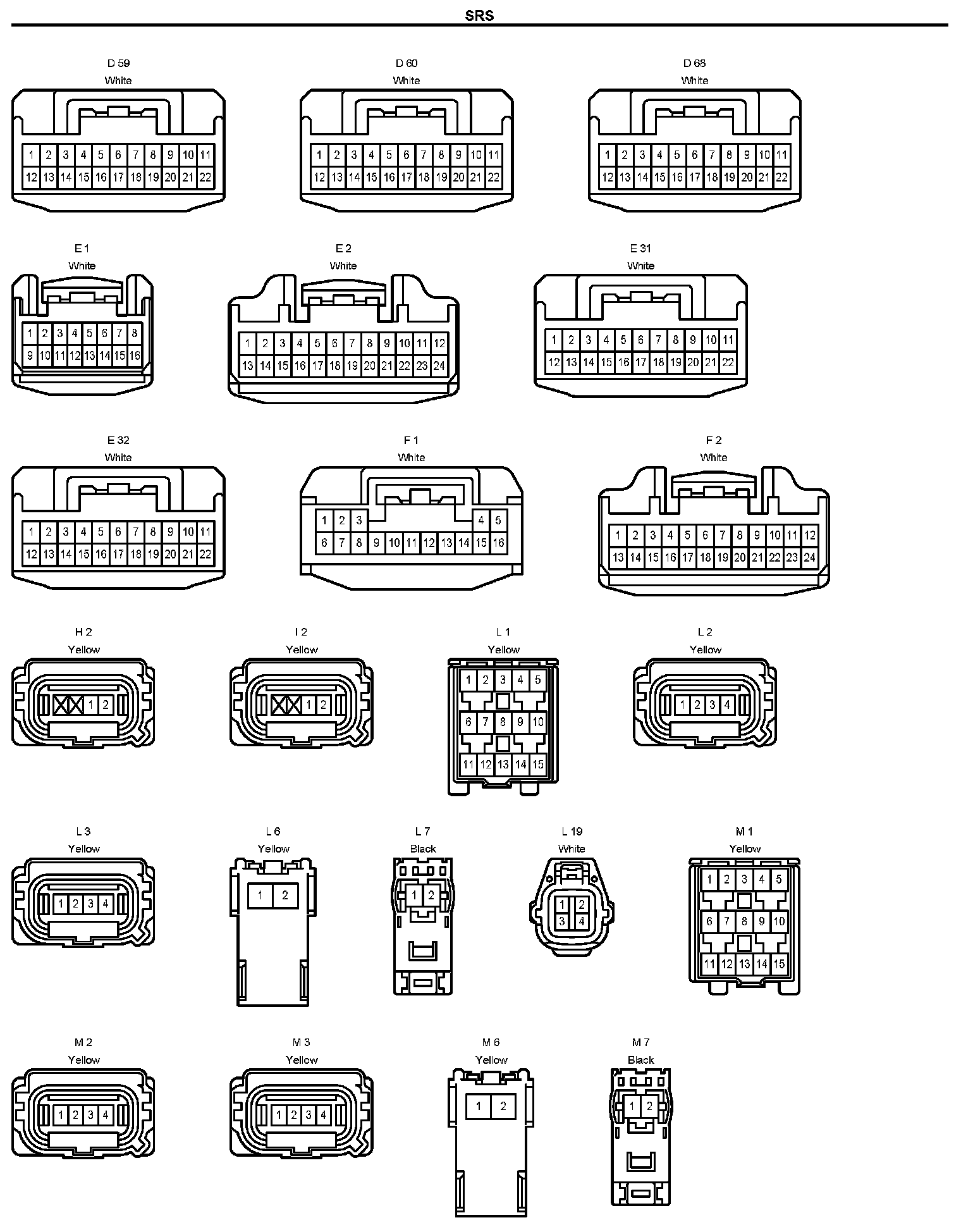

Connectors Part 3:

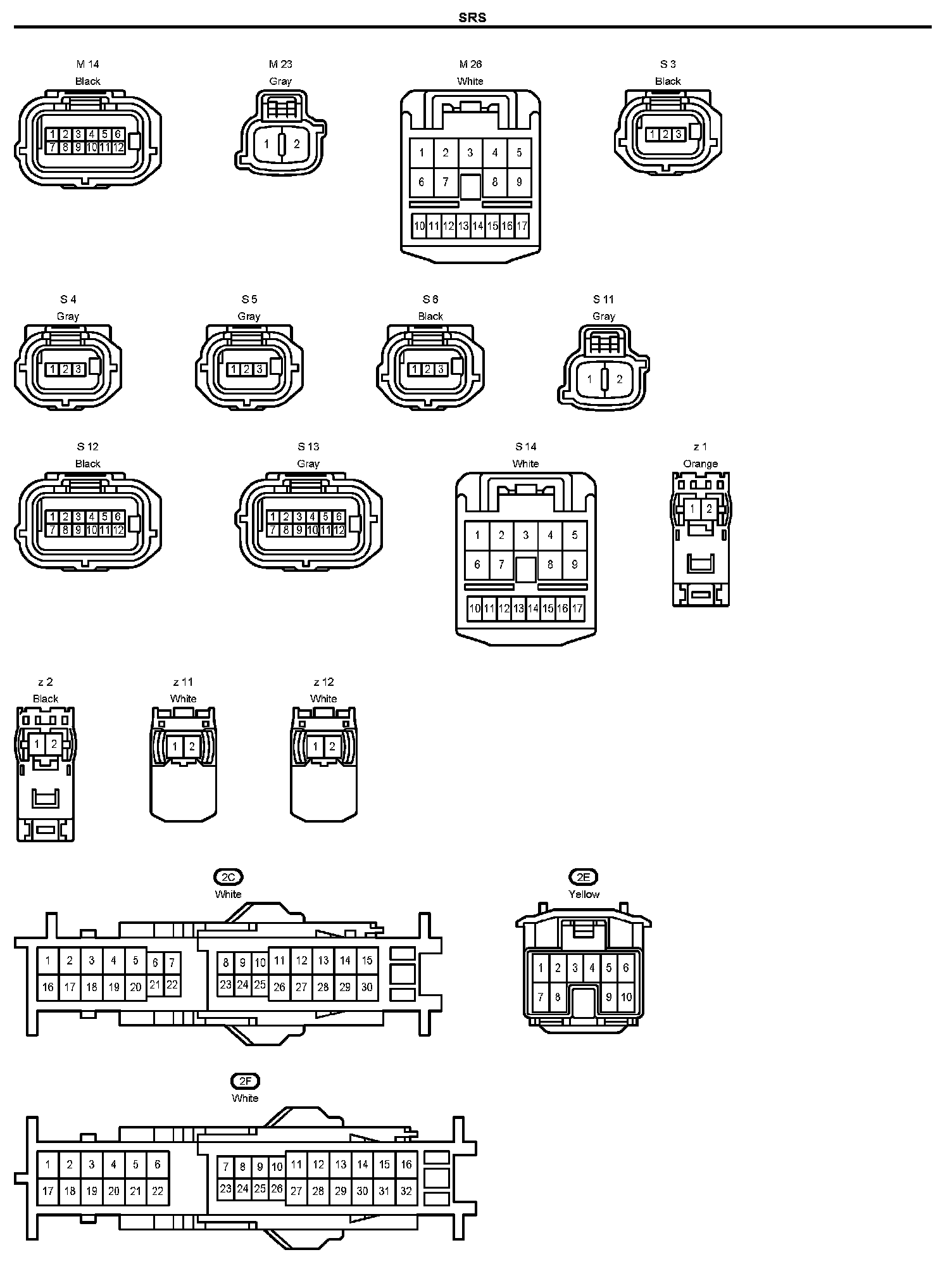

Connectors Part 4:

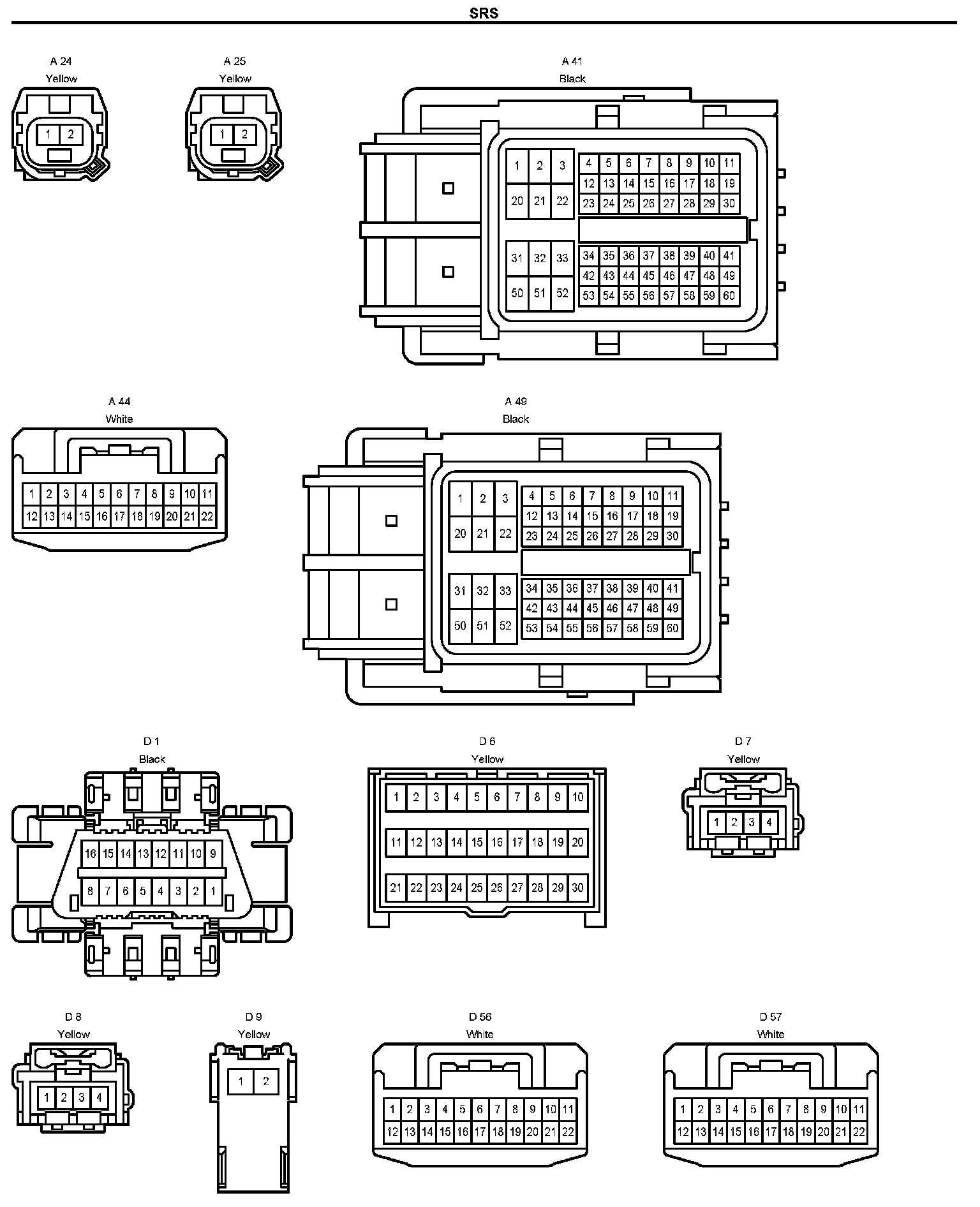

Connectors Part 5:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
