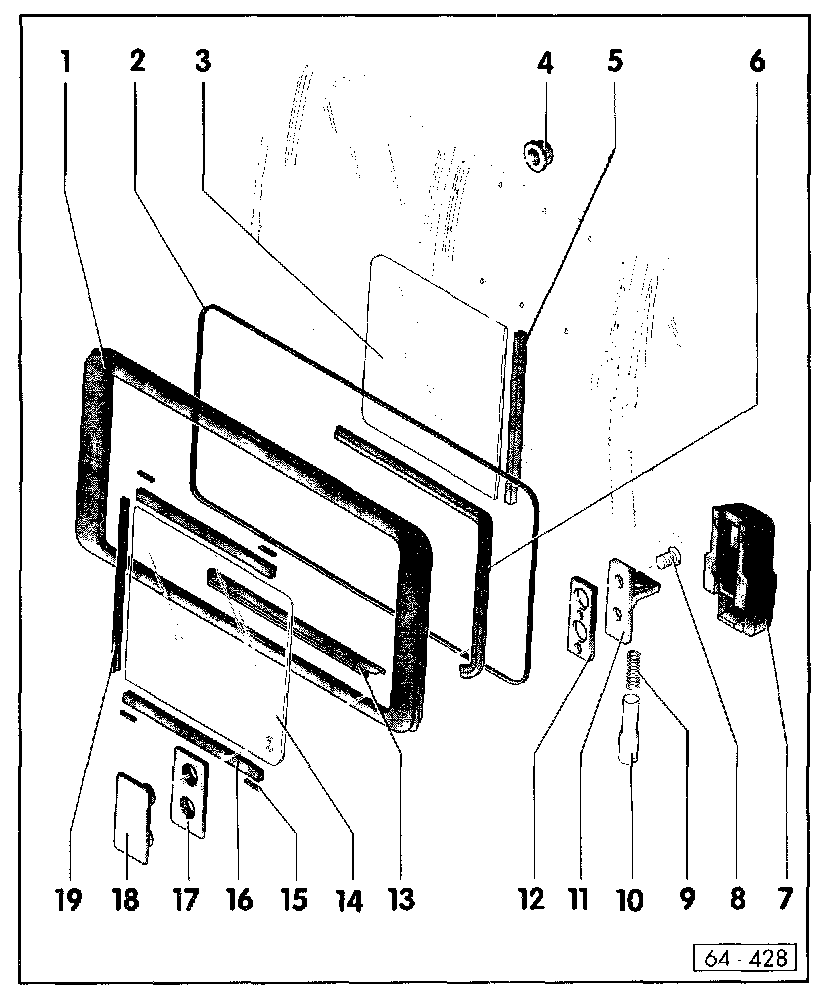

Sliding Window (Sliding Door), Components

CAUTION: Part numbers are far reference only. Always check with your Parts Department far latest information.


NOTE: To remove sliding window (sliding door), first remove molded trim on sliding door See 'Body And Frame, Trim Panel.' Service and Repair


1 - Frame
- With studs
2 - Gasket
- Glued on with frame
3 - Fixed window
- If broken, replace sliding window unit
4 - Hex lock nut
- 1.5 Nm (13 in. lb)
- Cap nut for vehicles without molded trim
5 - Divider post
- Glued with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent
6 - Sealing frame
- If necessary, shorten new sealing frame
- Glued with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent
7 - Handle
8 - Countersunk screw
9 - Spring
10 - Bolt
11 - Bracket
12 - Base plate
13 - Stop rail
- If necessary, shorten new stop rail
- Glued in with silicone adhesive sealing material (black) AMV 176 000 05 or equivalent
14 - Movable window
15 - Guide piece
- For left and right
- Replace in pairs
16 - Guide molding
- Shorten new guide moldings if required.
17 - Gasket
18 - Cover plate
19 - Clamping frame
