Ignition Switch

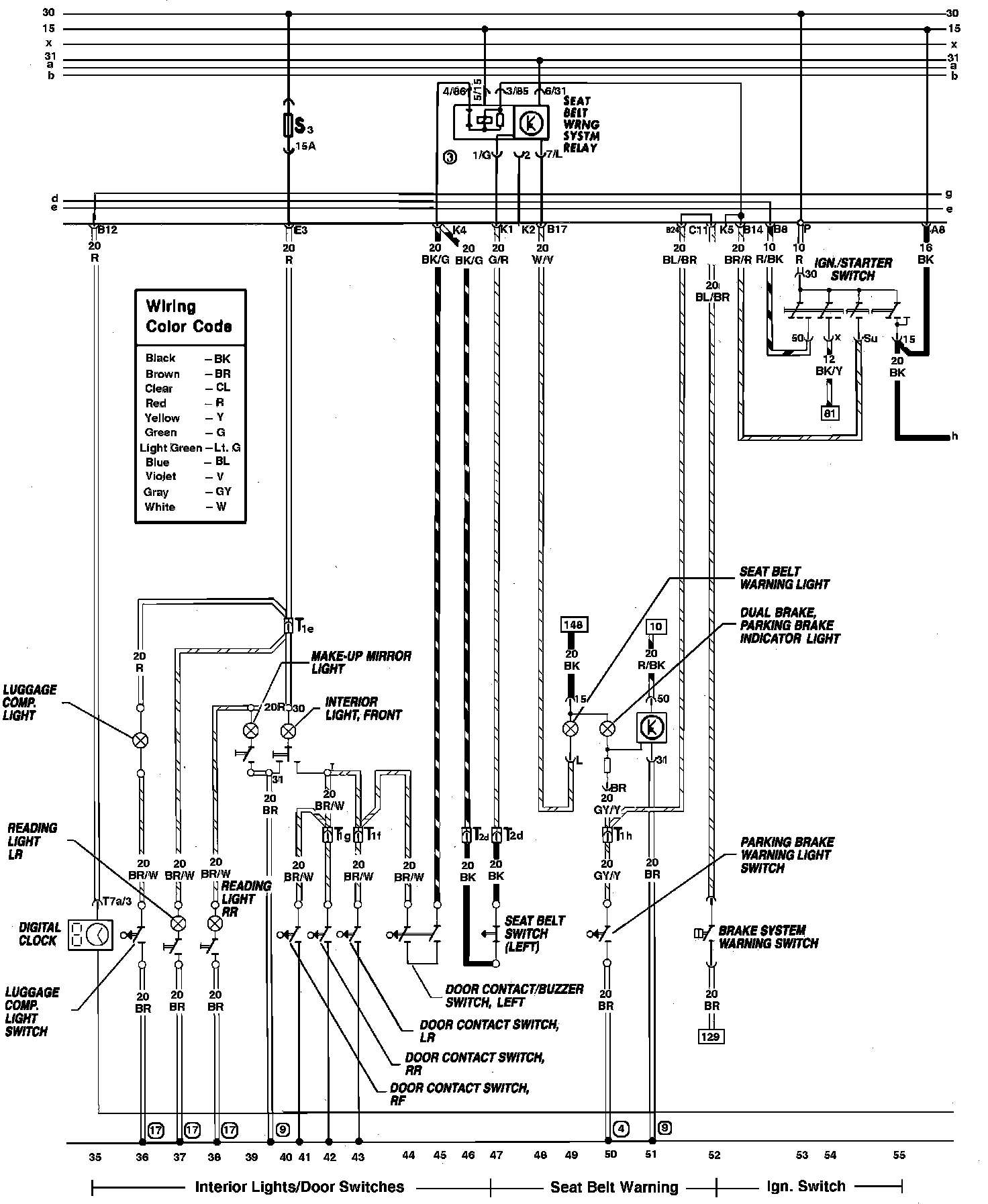

Brake, Seat Belt Warning, Clock, Door Contact Switch, Ignition Switch, Interior, Luggage Compartment & Reading Lights:
