Diagram Information and Instructions
>>
Main Diagrams By Track Number
>>
Track 18 - 34
Track 18 - 34

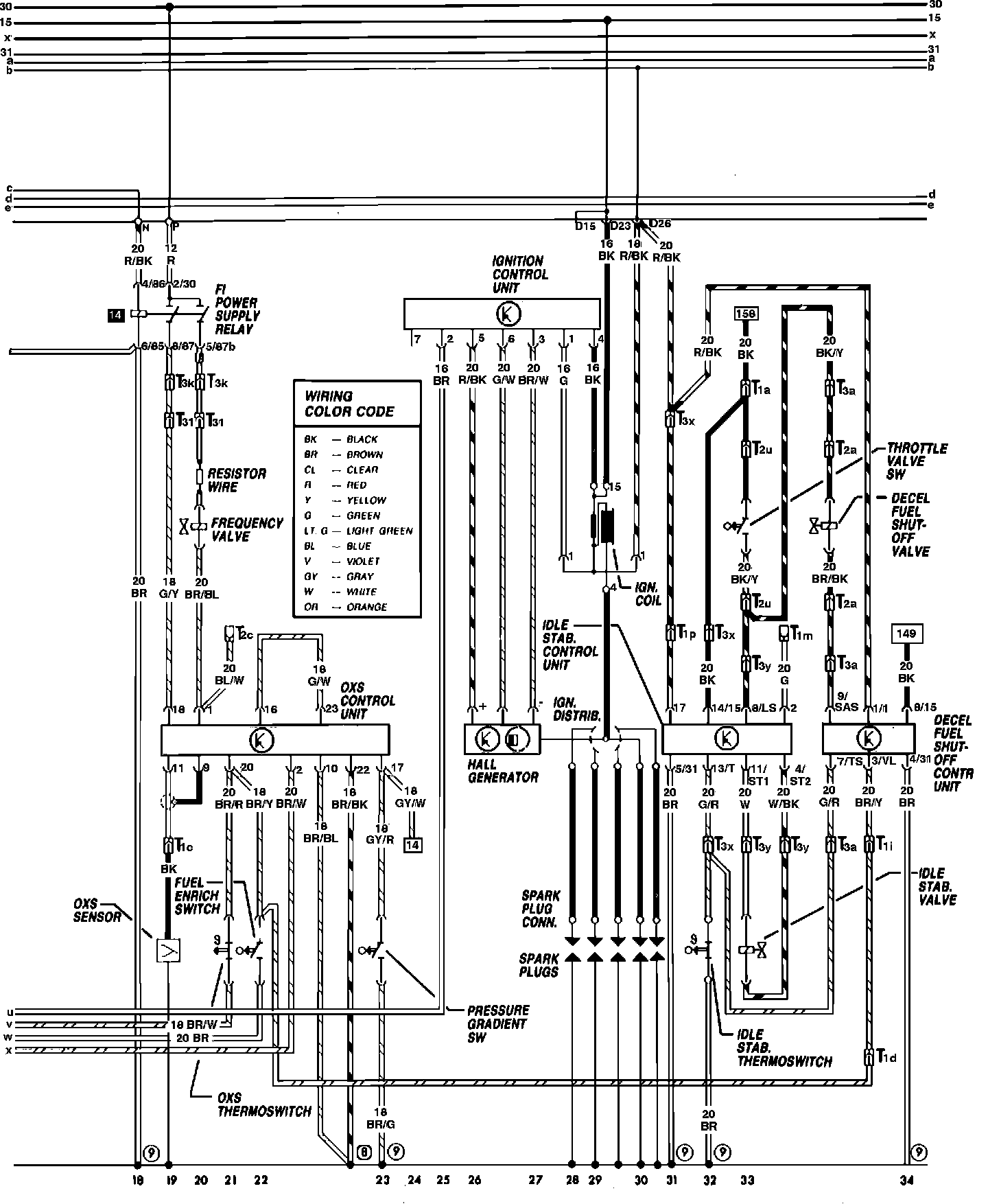

Deceleration Fuel Shut-Off, Idle Stabilizer Control Unit, Ignition System & Oxygen Sensor:
