Multi-Function Indicator Switch, Checking

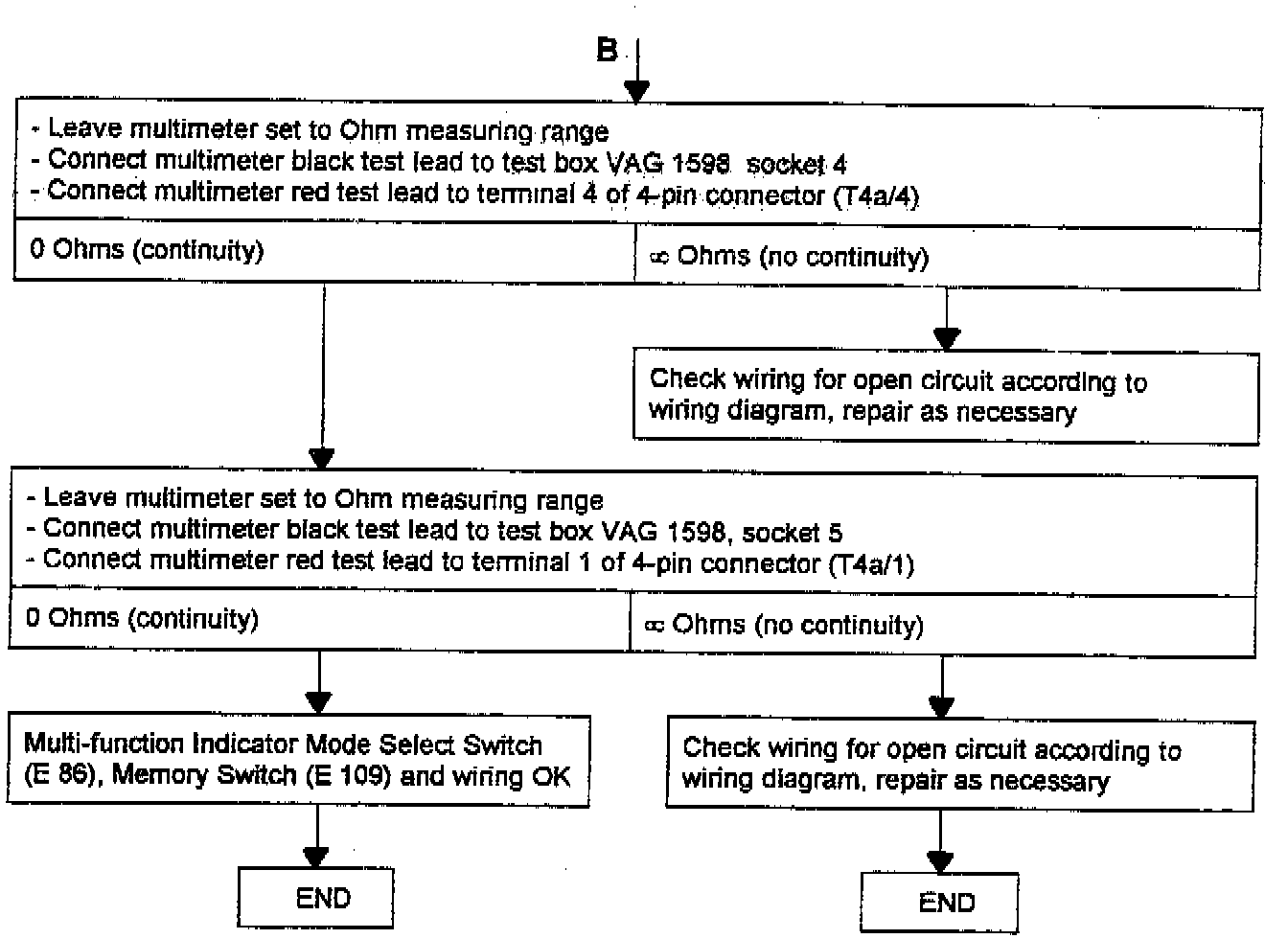

MULTI-FUNCTION INDICATOR MODE SELECT SWITCH (E 86), MEMORY SWITCH (E 109) AND WIRING, CHECKING

Tools required:

^ Multimeter Fluke 83 (US 1119)
^ Connector test kit VW 1594
^ Test box VAG 1598 with adapter harness VAG 1598/8

Troubleshooting preparations:

^ Separate 4-pin connector located behind steering column switch trim
^ Use valid wiring diagram to check wiring
