Control Assembly: Service and Repair

Fresh And Heated Air Control Unit:

Removing:

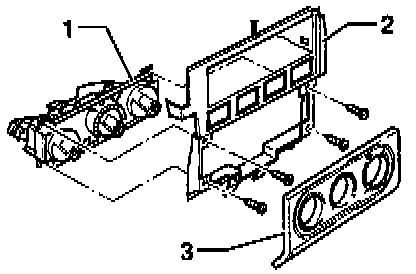

- Heater control trim panel -3-, pull off
- Central vent -2-, remove
- Heater controls -1- with cables attached, pull out of instrument panel.

Installing:
- Secure cables to removed controls.
