Piston, Engine

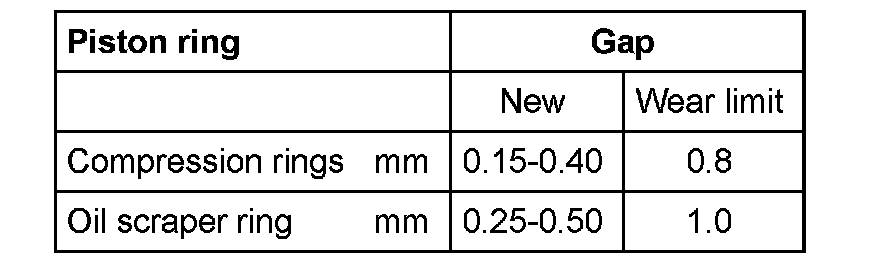

Piston Ring Gap

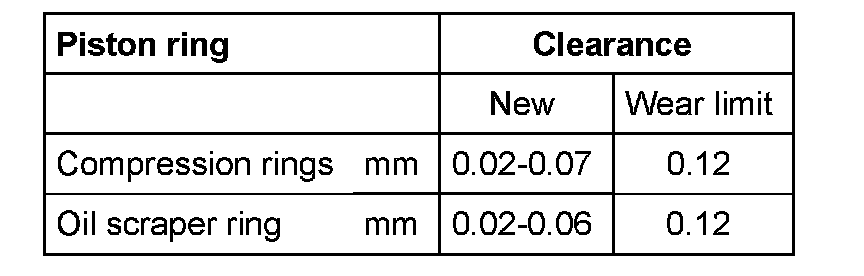

Piston Ring Clearance

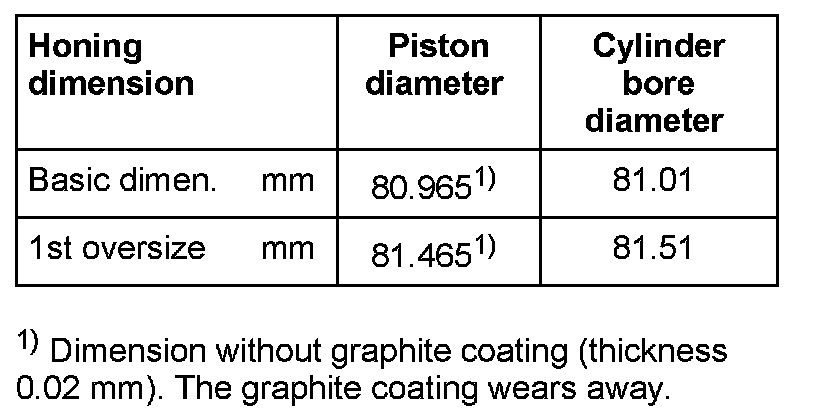

Piston and cylinder dimensions (engine code: APH)
1) Dimension without graphite coating (thickness 0 02 mm). The graphite coating wears away.
