Control Module, A/T
>>
From November 2004
From November 2004

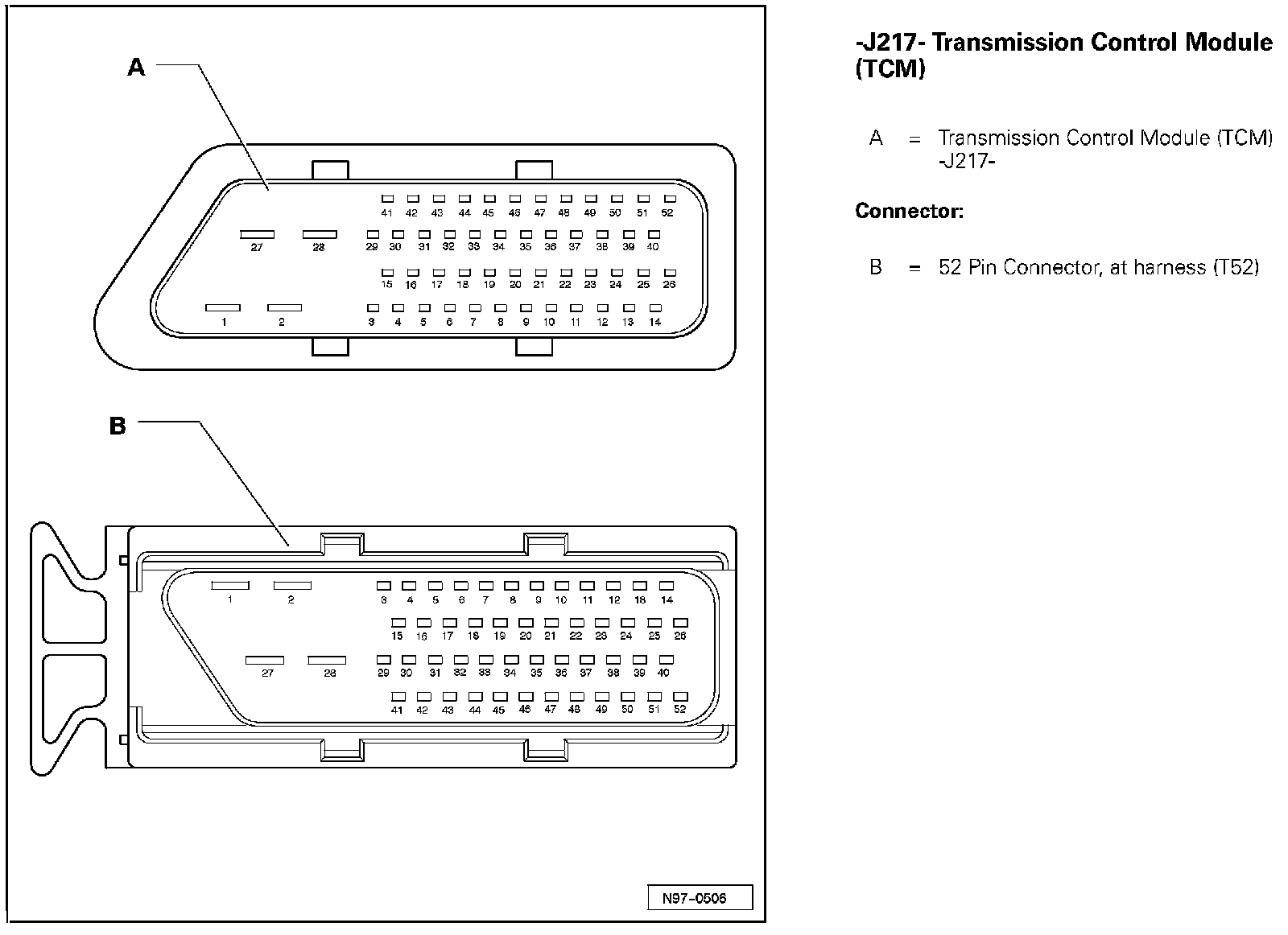

Transmission Control Module (TCM) J217 - Part 1:

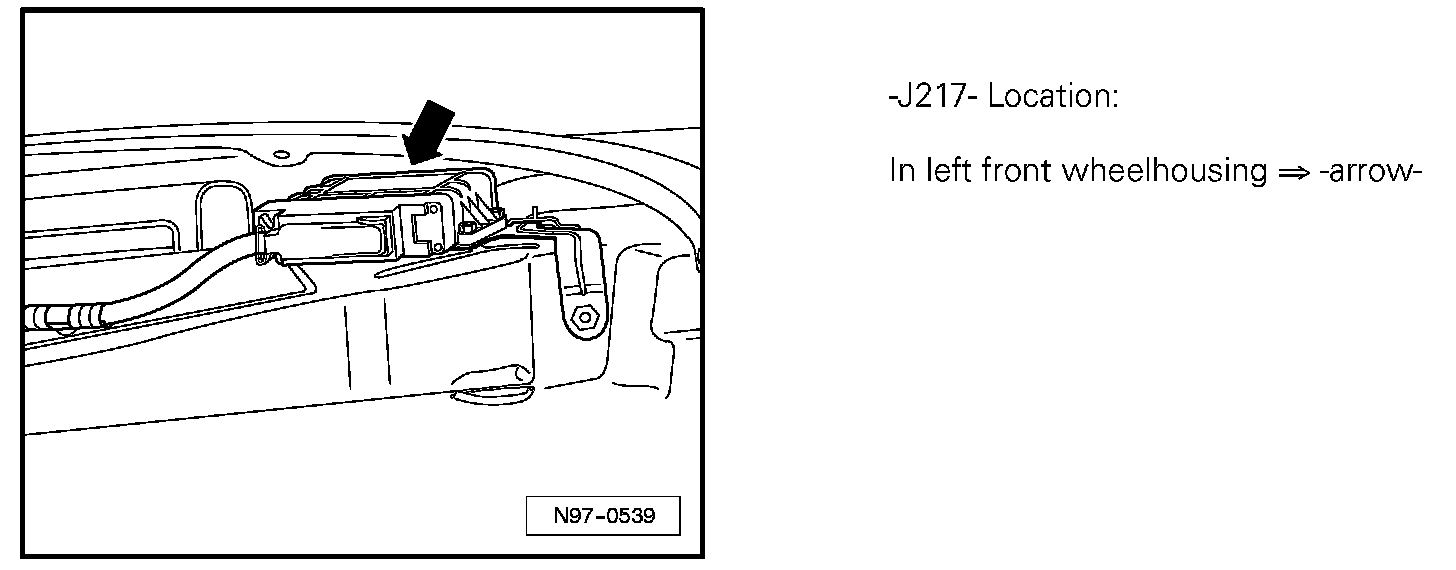

Transmission Control Module (TCM) J217 - Part 2:
