Automatic Climate Control System - Climatronic

A/C Control Head E87 With Climatronic Control Module J255, Removing And Installing

NOTE: The Climatronic Control Module J255 and the A/C Control Head E87 are one component that cannot be disassembled.

Removing
- Remove center instrument panel trim.

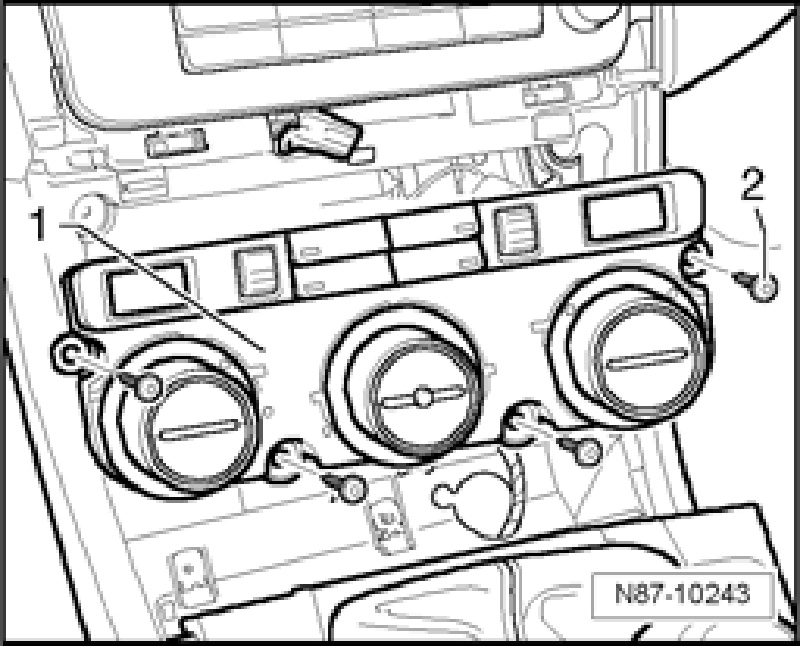

- Unscrew bolts -2- and remove A/C Control Head E87 with Climatronic Control Module J255 -1- from instrument panel.
- Disconnect harness connectors from A/C Control Head E87.

Installing
Installation is performed in the reverse order of removal.
