Climatronic and Climatic Cover



Climatronic and Climatic Cover

NOTE:
- Removal and installation of cover is described for vehicles equipped with "Climatronic".
- Removal and installation of cover for vehicles equipped with "Climatic" is identical.
- The adjacent components are only partially shown in the illustration.

Removing
- Remove Infotainment trim

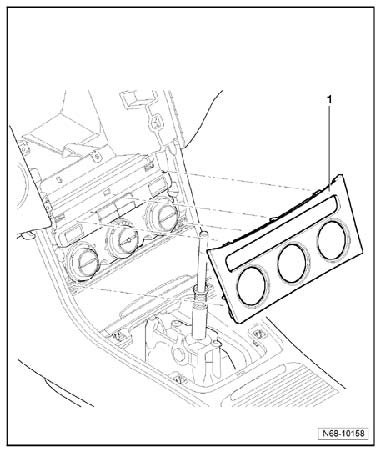

- Remove trim - 1 - from mountings in instrument panel.







Installing
- To install, perform the steps used for removal in reverse order.
