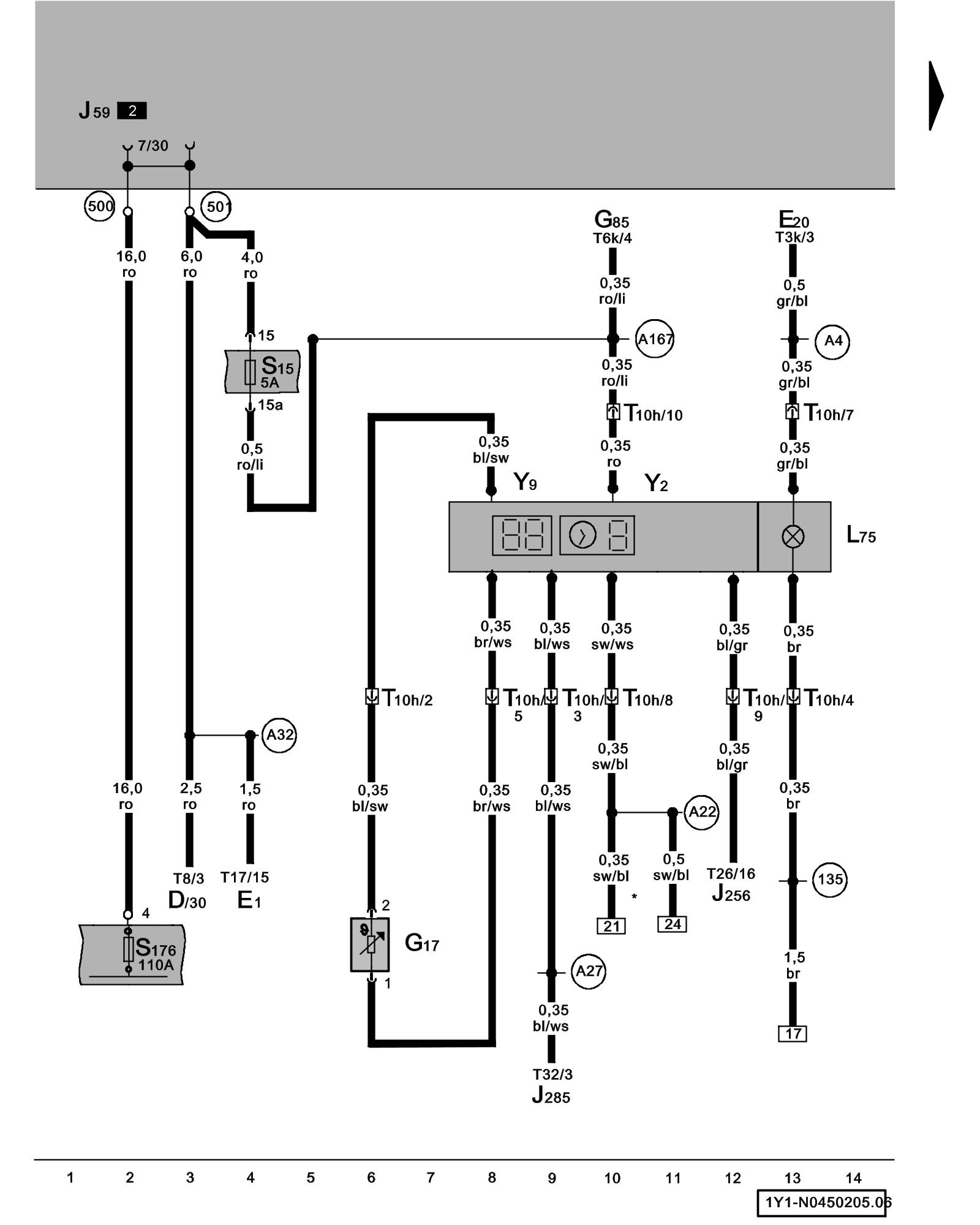

Diagram 645/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Outside Air Temperature Sensor, Digital Clock, Duo-Drive Display Unit





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D - Ignition/Starter Switch

E1 - Light Switch

E20 - Instrument Panel Illumination Dimmer Switch

G17 - Outside Air Temperature Sensor Heating and A/C Engine Compartment Overview

G85 - Steering Angle Sensor ABS - Electrical and Electronic Component Locations - EDL/ASR/ESP

J59 - Load Reduction Relay

J256 - Convertible Top Control Module Electric and Hydraulic Convertible Top Assembly Overview

J285 - Instrument Cluster Control Module

L75 - Light for digital display

S15 - Fuse (on fuse/relay panel)

S176 - Fuse 4 - terminal 30 (on battery fuse holder)

T3k - 3-Pin Connector, at E20

T6k - 6-Pin Connector, at G85

T8 - 8-Pin Connector, at D

T10h - 10-Pin Connector

T17 - 12-Pin Connector, at E1

T26 - 26-Pin Connector, at J256

T32 - 32-Pin Connector

Y2 - Digital Clock

Y9 - Duo-Drive Display Unit

(A4) - Plus Connection (58b) (in instrument panel wiring harness)

(A22) - Connection (75s) (in instrument panel wiring harness)

(A27) - Vehicle Speed Signal (VSS) Connection (in instrument panel wiring harness)

(A32) - Plus Connection (30) (in instrument panel wiring harness)

(A167) - Plus Connection 3 (30a) (in instrument panel wiring harness)

(135) - Ground connection -2-, in instrument panel wiring harness

(500) - Threaded connection -1- (30), on the relay plate

(501) - Threaded connection -2- (30), on the relay plate

* - Only vehicles with Automatic day/night interior mirror

Next Diagram 645/3 (Tracks 15-28)
