Side Luggage Compartment Trim Panel

Side Luggage Compartment Trim Panel

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove the lock carrier cover. Refer to => [ Lock Carrier Cover ] Lock Carrier Cover.

- Remove the side luggage compartment cover support, refer to => [ Side Luggage Compartment Cover ] Side Luggage Compartment Cover.

Only for the right luggage compartment trim panel for vehicles with subwoofer

- Remove the subwoofer.

Procedure for all vehicles

- Remove the luggage compartment lamp and disconnect the wire.

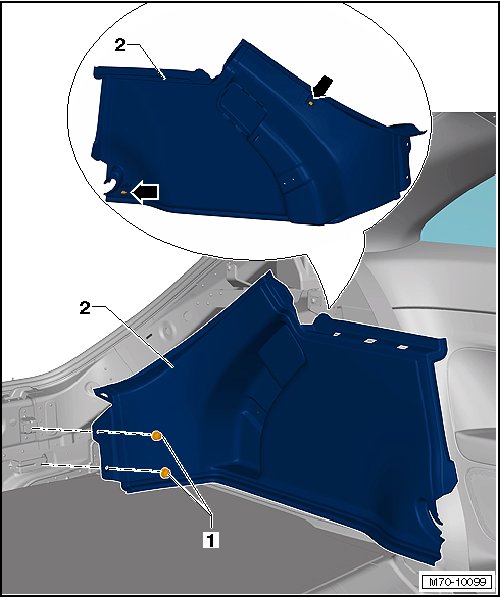

- Remove the expanding clip - 1 - with the release tool (T10236).

- Loosen the trim panel - 2 - from the clip connection point - arrows - and then remove it.

Installing

- Install in reverse order of removal.

• Check all the fasteners for damage and replace if necessary before installing. Replace any damaged components.

• Make sure the side luggage compartment trim panel fits inside the rear lid seal molding after it is installed.
