Engine - Sensor Locations

No. 111
May 1982
Product: CARS
Group: 21

Reference Bulletins:

Subject: Engine Sensor Locations

This Service Bulletin Is Applicable To The U.S. Market

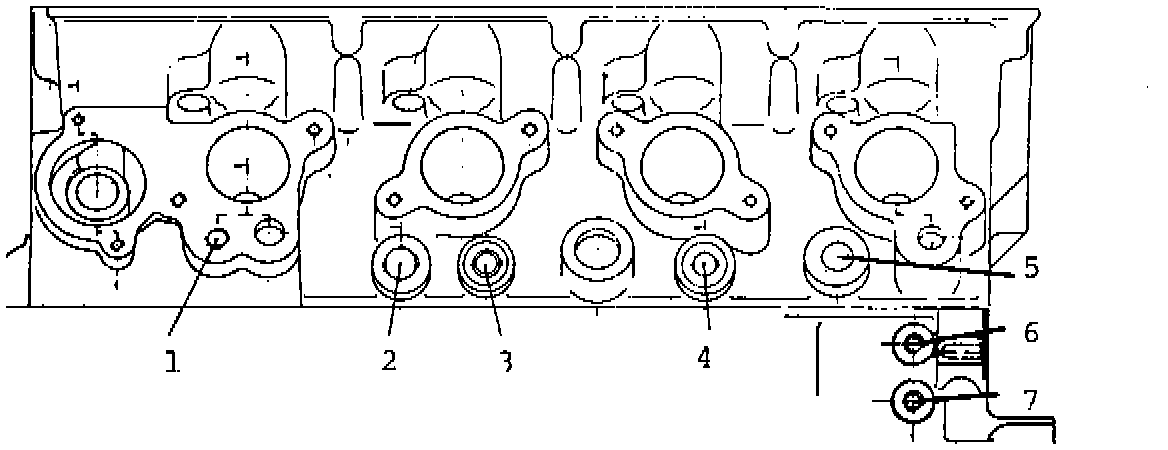

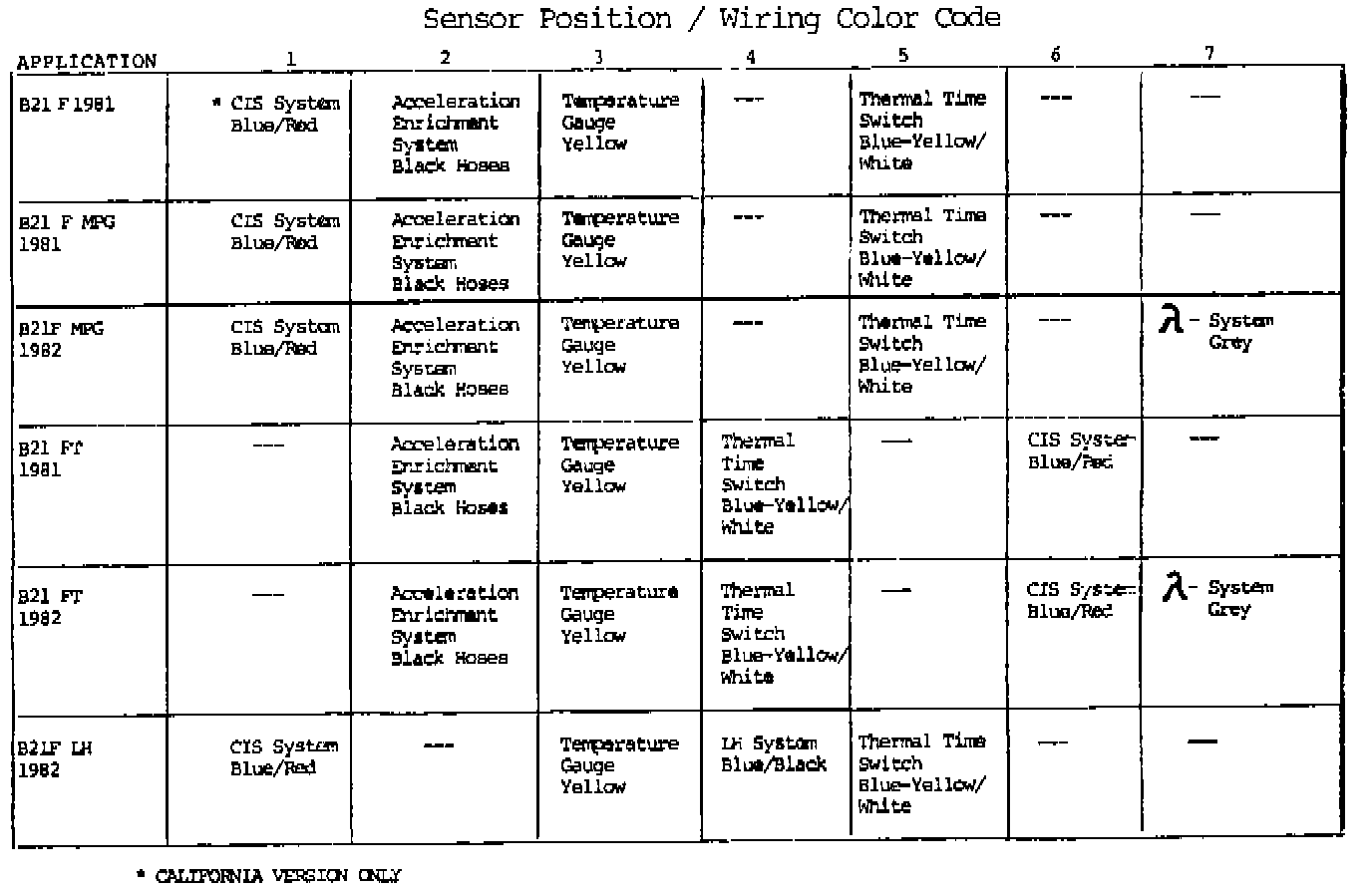

All sensors are located on the left hand side of the cylinder head and engine block as illustrated.

NOTE:
Make sure that the wires for the cold start injector (Blue-Yellow/White) and the wires for the temperature sensors for the CIS and/or LH Systems are installed correctly. They have identical connectors and can be mixed.
