Emission Control Systems: Diagrams

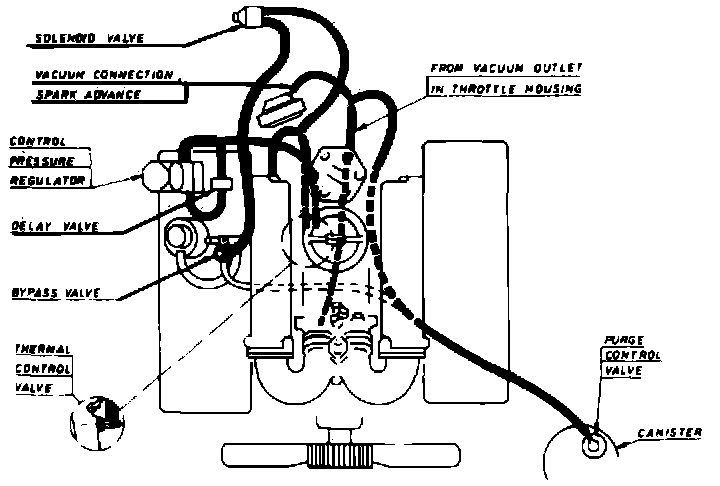

Fig.26 - Vacuum Hose Routing:

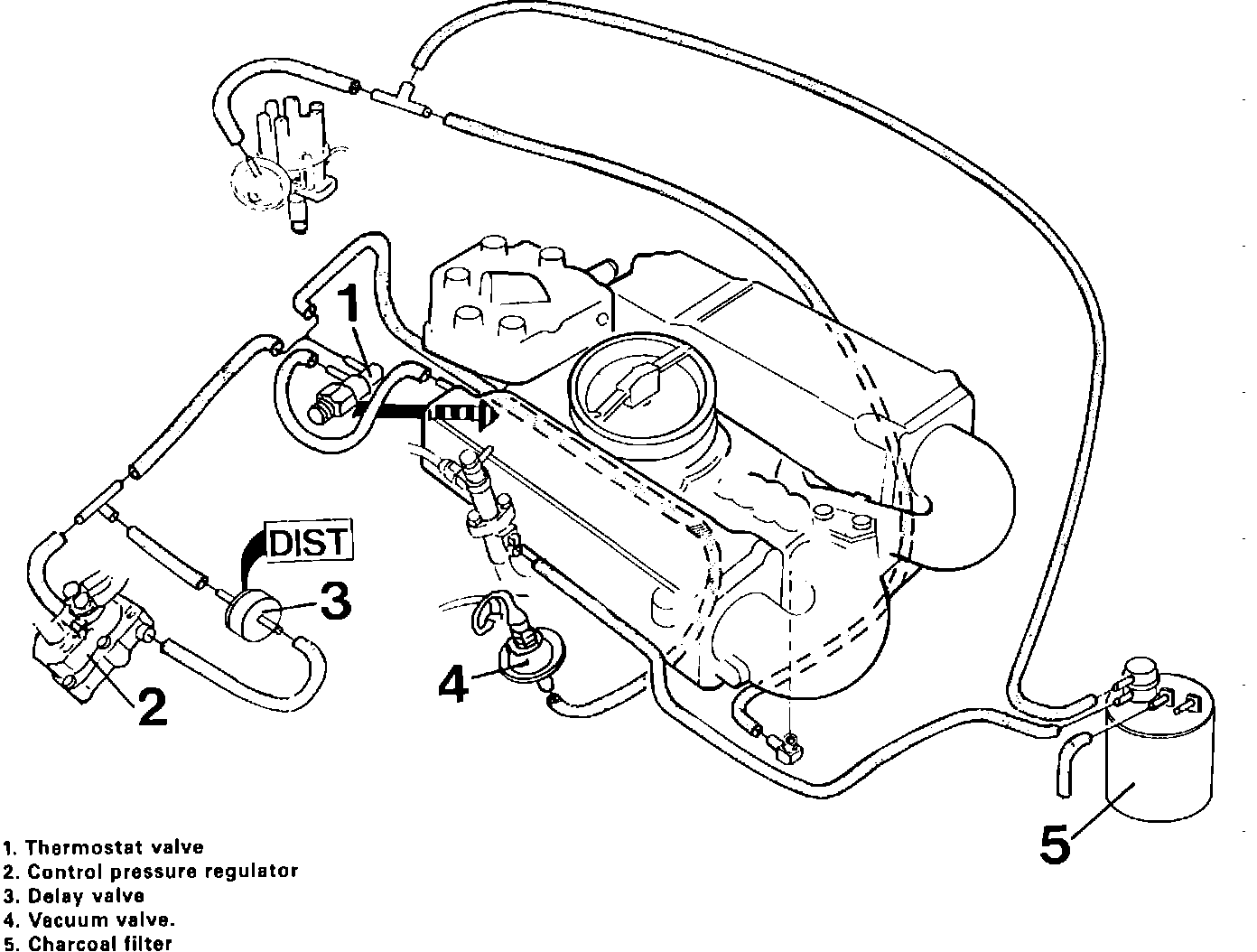

Fig. 154 VACUUM HOSE ROUTING (GENERAL):
