Fuel Injection System
>>
CIS Fuel Injection System
>>
With O2 Sensor
With O2 Sensor

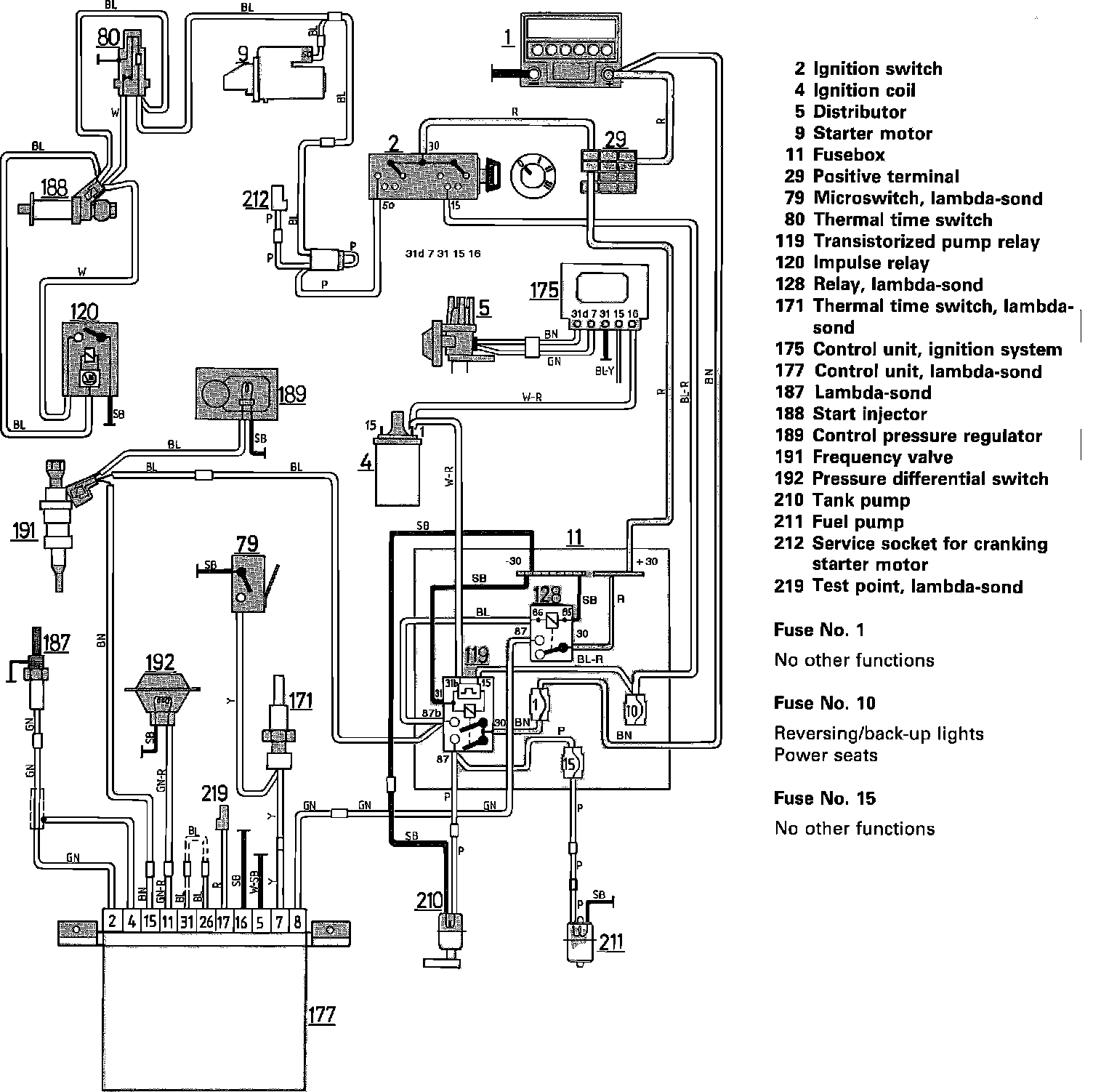

Fig. 107 Fuel Injection System (B28F):
