Fuel Injection System

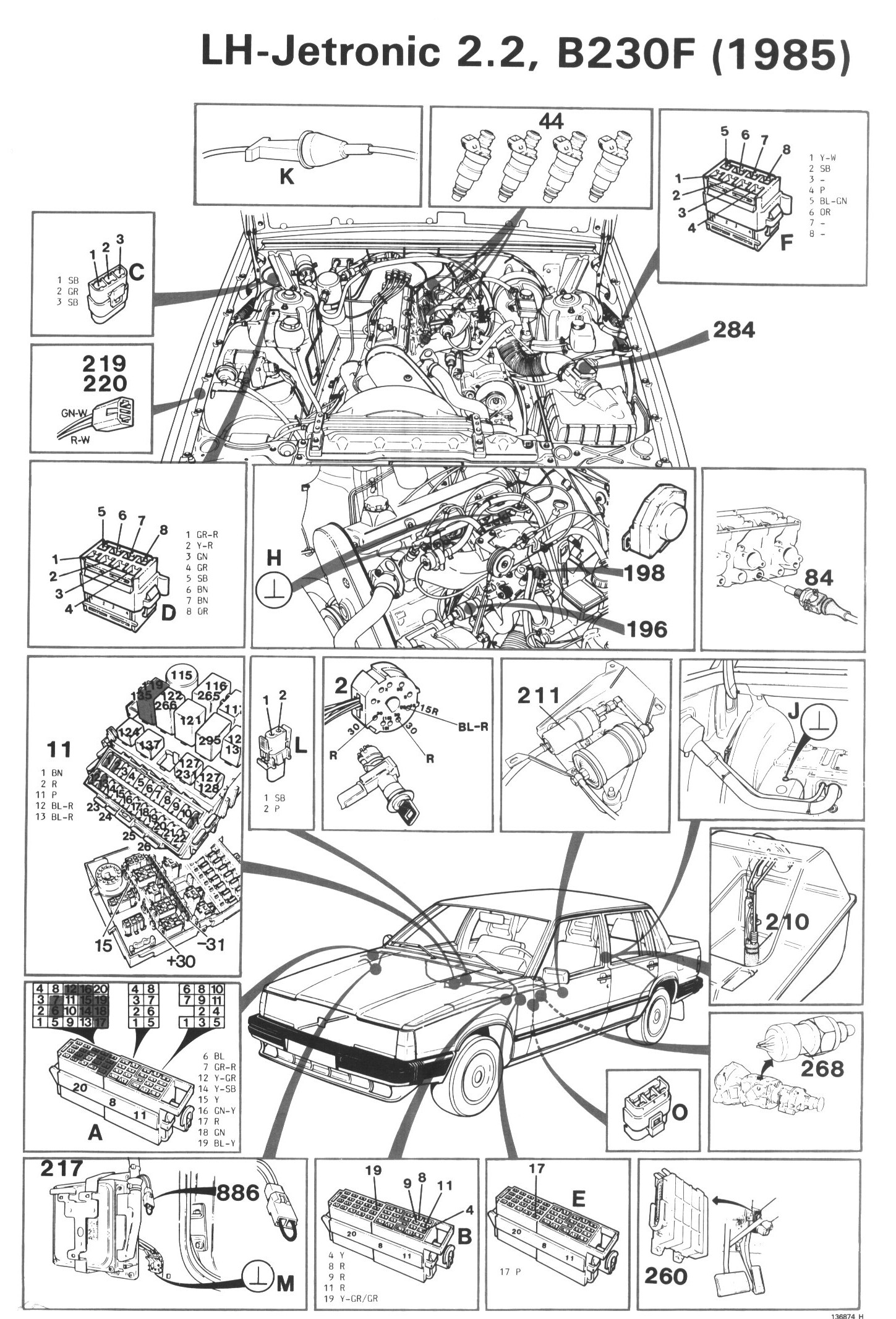

Component Locations:

Wiring Diagram:

LEGEND
2 Ignition switch
31 Ground point, central electrical unit
44 Injector
84 Coolant temperature sensor
135 Fuel injection relay
187 Lambda sond
196 Air control valve
198 Throttle switch, LH-Jetronic CU heater unit
210 Tank pump, 1.6 A
211 Fuel pump, 6.5 A
217 Control unit, LH-Jetronic
219 Service socket, Lambda sond
220 Service socket, CIS
260 Ignition system control unit
284 Air mass meter
286 Bridge connector
A Connector, right A-post
B Connector, left A-post
C Connector, right wheelhouse
E Connector, left A-post
F Connector, left wheelhouse
G Connector, left A-post
H Ground point, inlet manifold
J Ground point in trunk
K Connector on bulkhead
L Connector, central electrical unit
M Ground point, right A-post
0 Connector, transmission
