Cruise Control: Locations

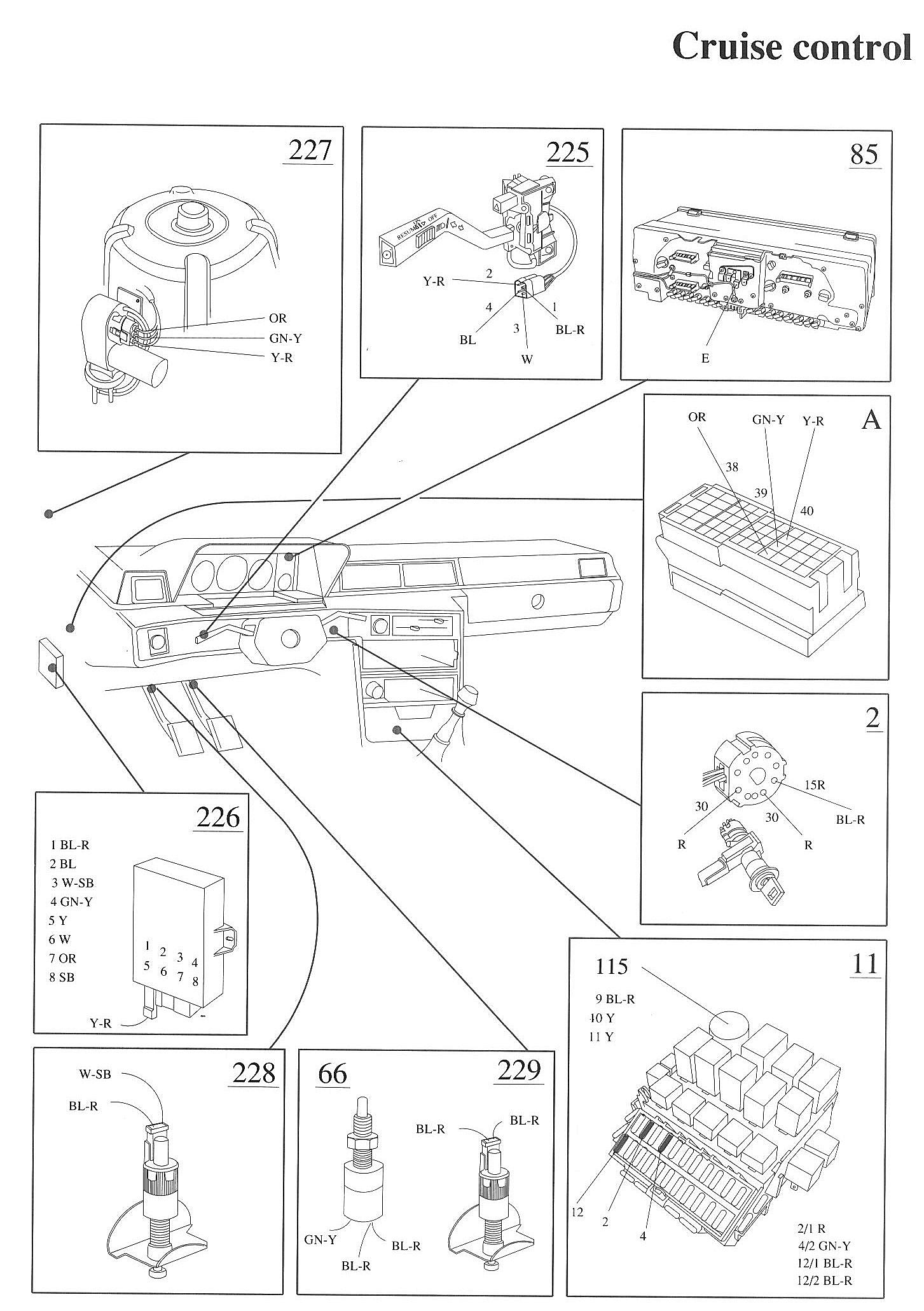

Component / Connector Views:

Wiring Diagrams:

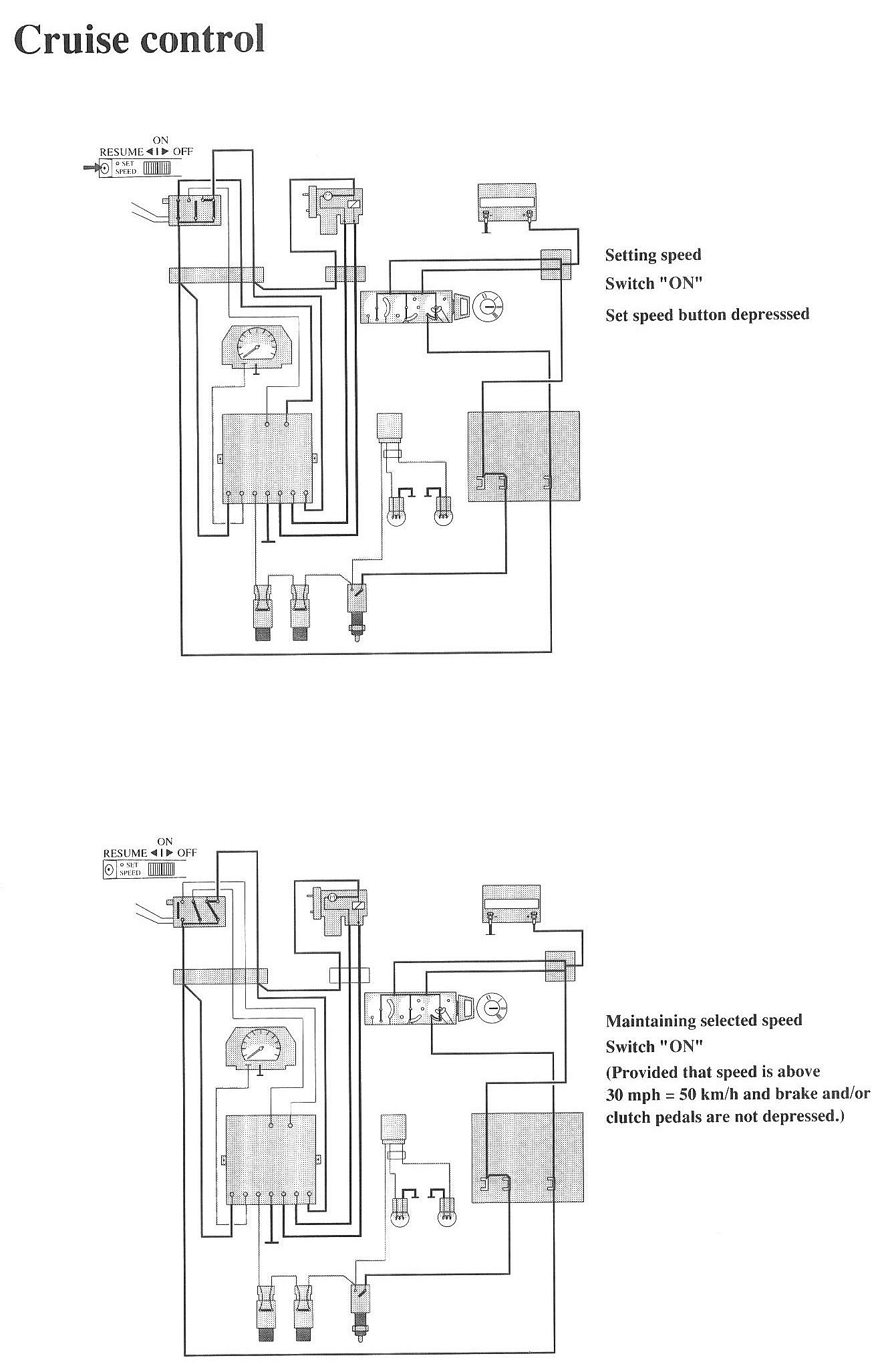

Setting / Maintaining Speed:

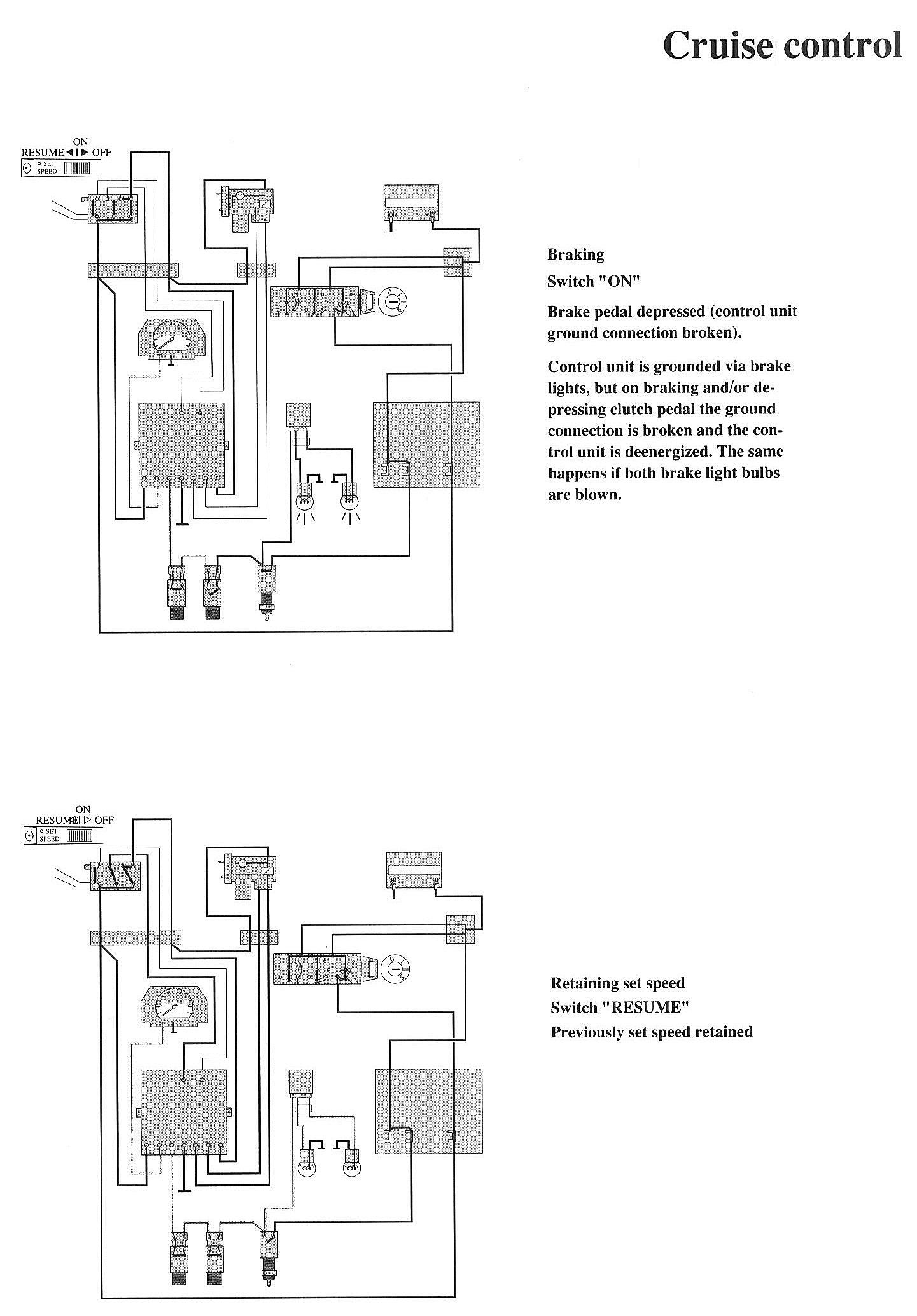

Braking / Retaining Set Speed:

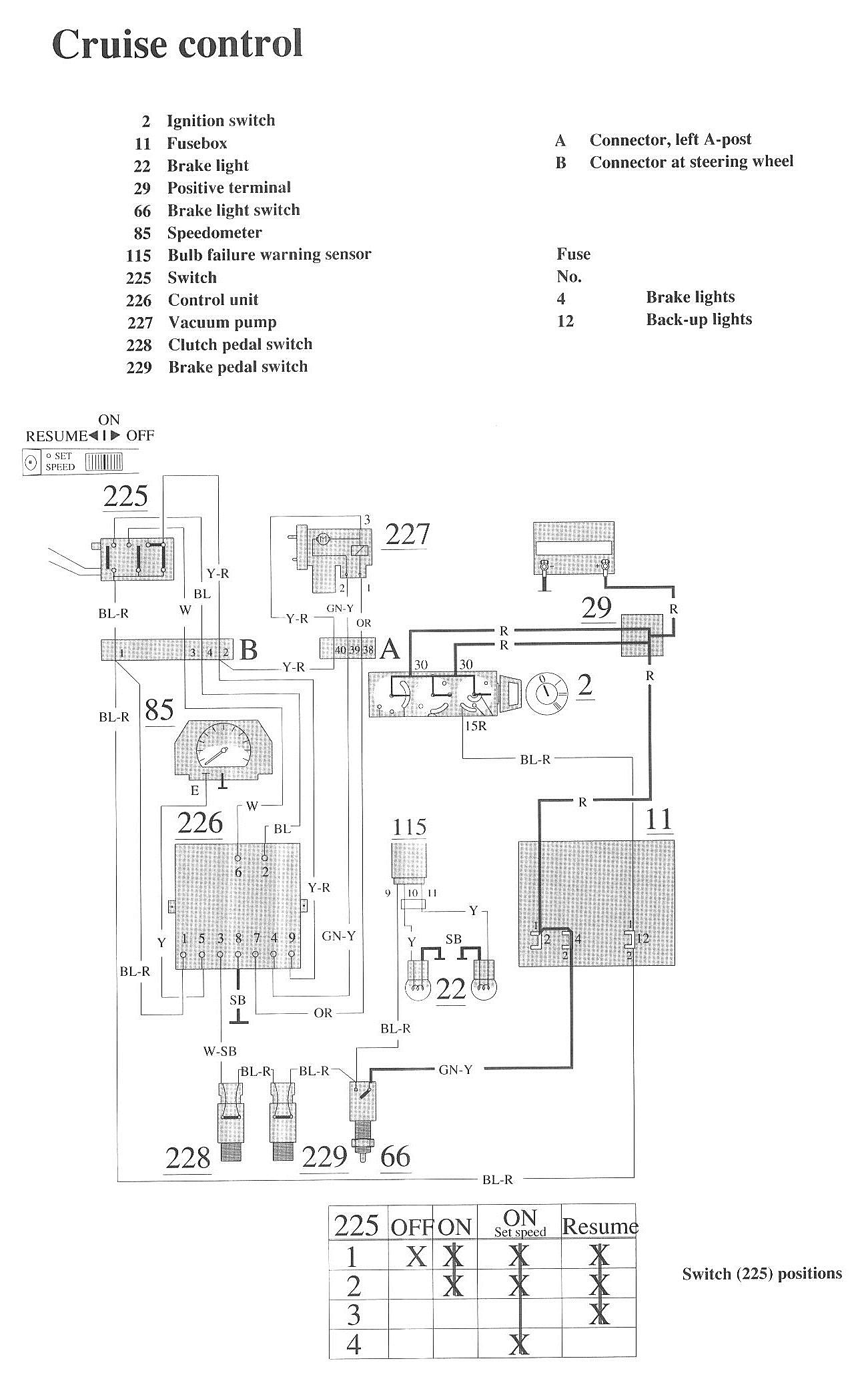

LEGEND
2 Ignition switch

11 Fusebox
22 Brake light
29 Positive terminal
66 Brake light switch
85 Speedometer

115 Bulb failure warning sensor
225 Switch
226 Control unit
227 Vacuum pump
228 Clutch pedal switch
229 Brake pedal switch

A Connector, left A-post
B Connector at steering wheel
