Home >> Volvo >> 1991 >> 240 L4-2.3L SOHC VIN 88 B230F >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Diagram Information and Instructions >> Ground Locations >> Fuel Injection

Fuel Injection

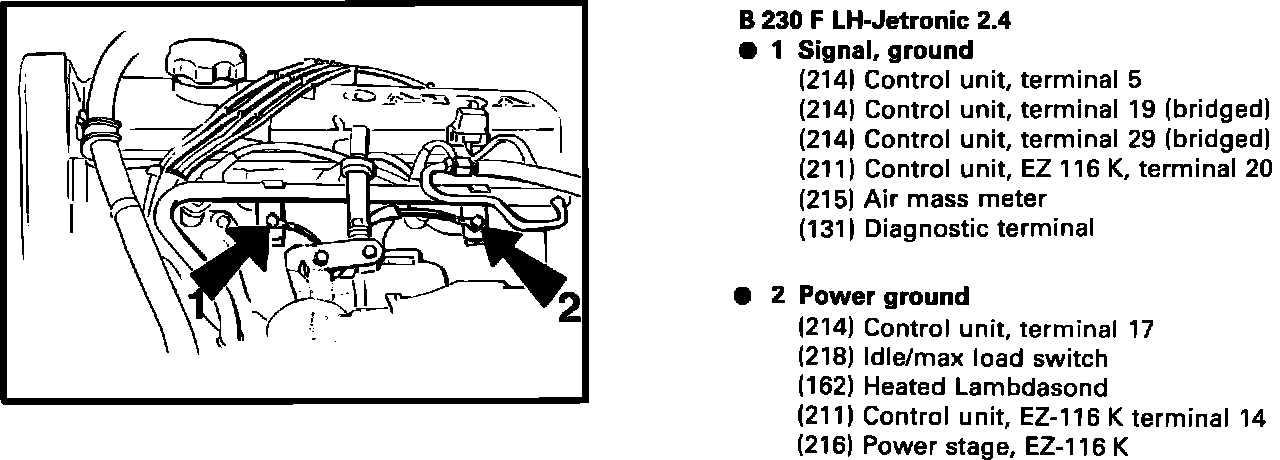

Ground Connections: Fuel Injection:
