Fuel Injection System

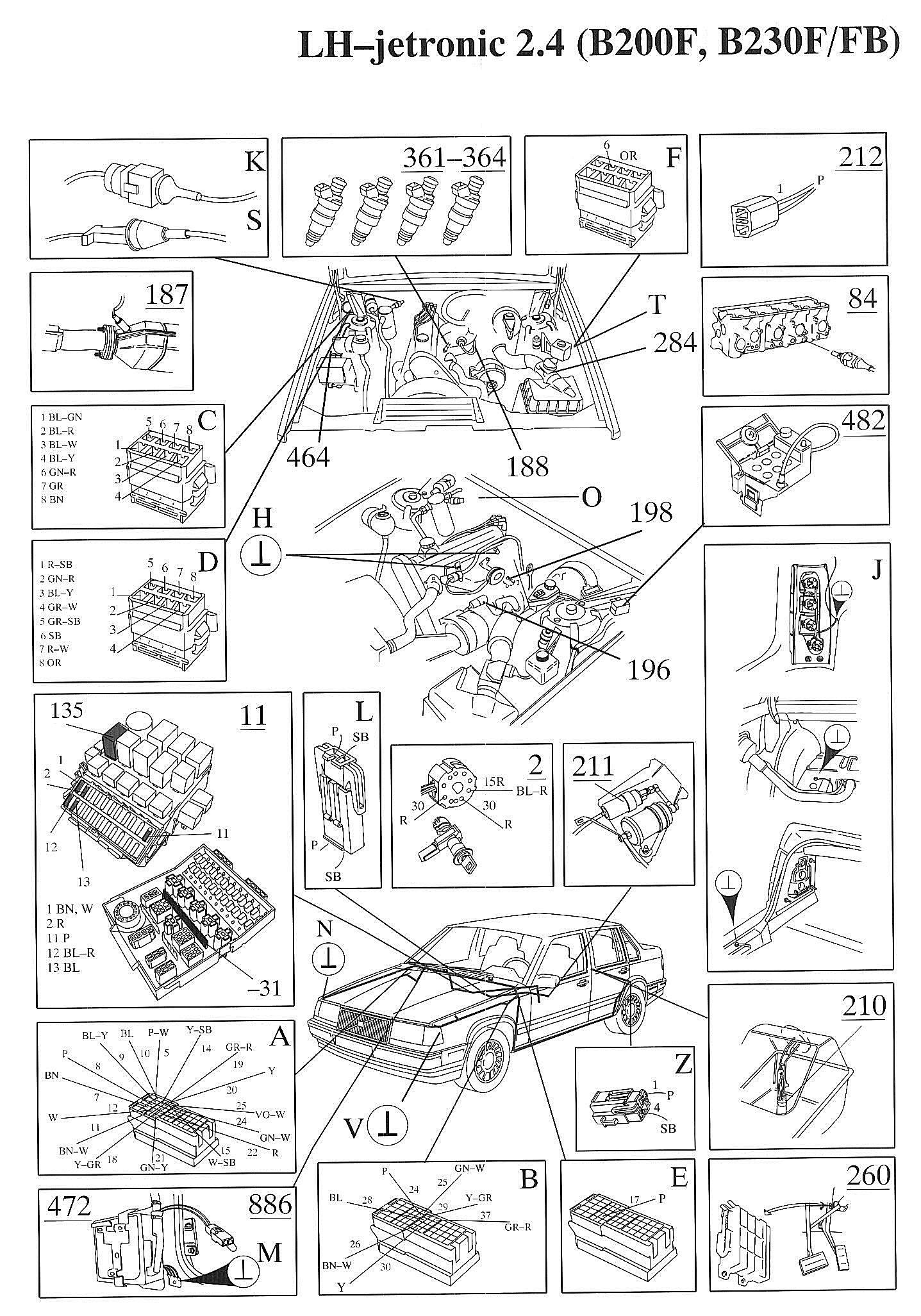

Component / Location Views:

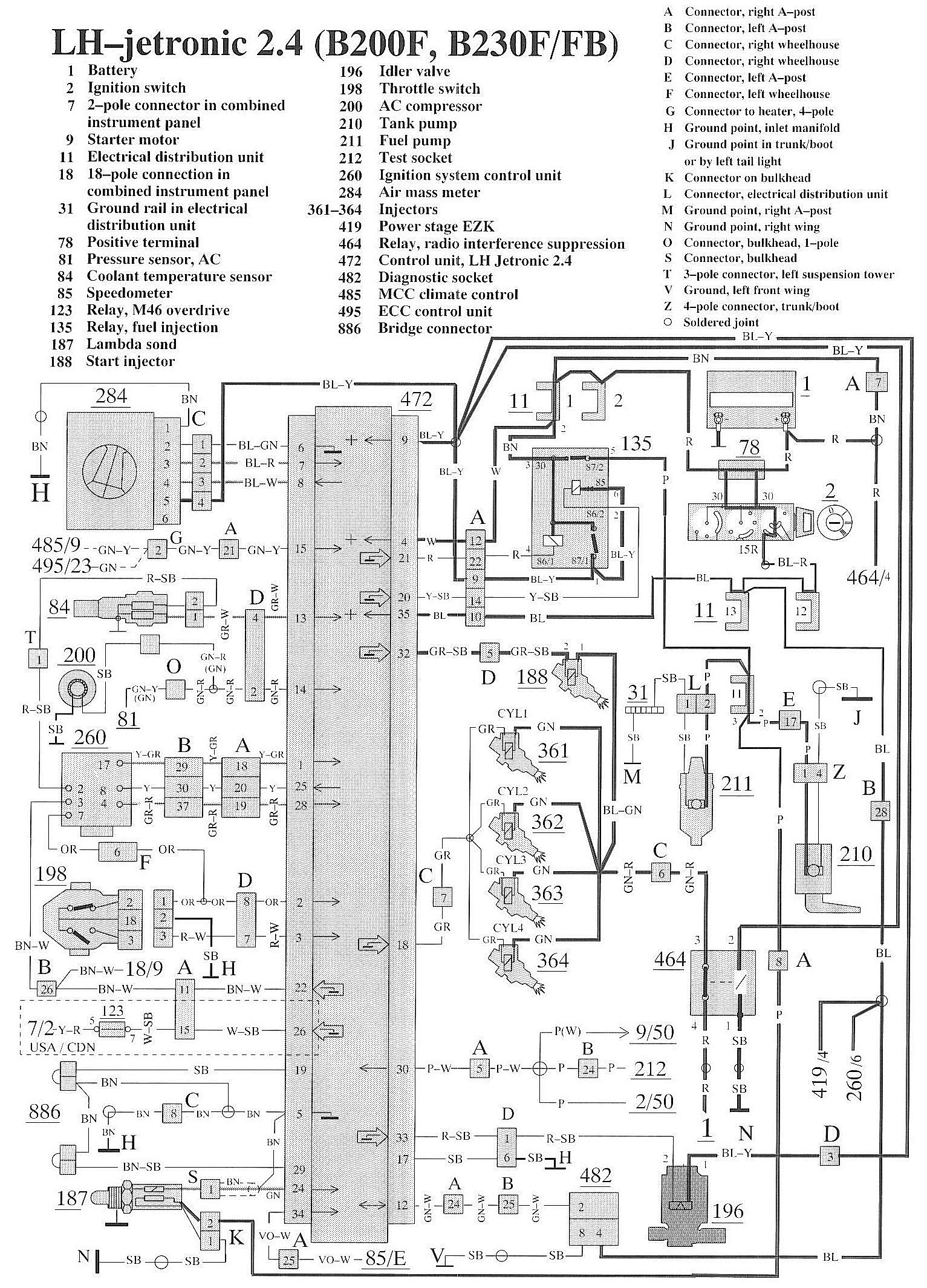

Wiring Diagrams:

LEGEND
1 Battery
2 Ignition switch
7 2-pole connector in combined instrument panel
9 Starter motor

11 Electrical distribution unit
18 18-pole connection in combined instrument panel
31 Ground rail in electrical distribution unit
78 Positive terminal
81 Pressure sensor, AC
84 Coolant temperature sensor
85 Speedometer

123 Relay, M46 overdrive
135 Relay, fuel injection
187 Lambda sond
188 Start injector
196 Idler valve
198 Throttle switch
200 AC compressor
210 Tank pump
211 Fuel pump
212 Test socket
260 Ignition system control unit
284 Air mass meter
361-364 Injectors
419 Power stage EZK
464 Relay, radio interference suppression
472 Control unit, LH Jetronic 2.4
482 Diagnostic socket
485 MCC climate control
495 ECC control unit
886 Bridge connector

A Connector, right A-post
B Connector, left A-post
C Connector, right wheelhouse
D Connector, right wheelhouse
F Connector, left A-post
F Connector, left wheelhouse
G Connector to heater, 4-pole
H Ground point, inlet manifold
J Ground point in trunk/boot or by left tail light
K Connector on bulkhead
L Connector, electrical distribution unit
M Ground point, right A-post
N Ground point, right wing
O Connector, bulkhead, 1-pole
S Connector, bulkhead
T 3-pole connector, left suspension tower
V Ground, left front wing
Z 4-pole connector, trunk/boot
