Windows: Locations

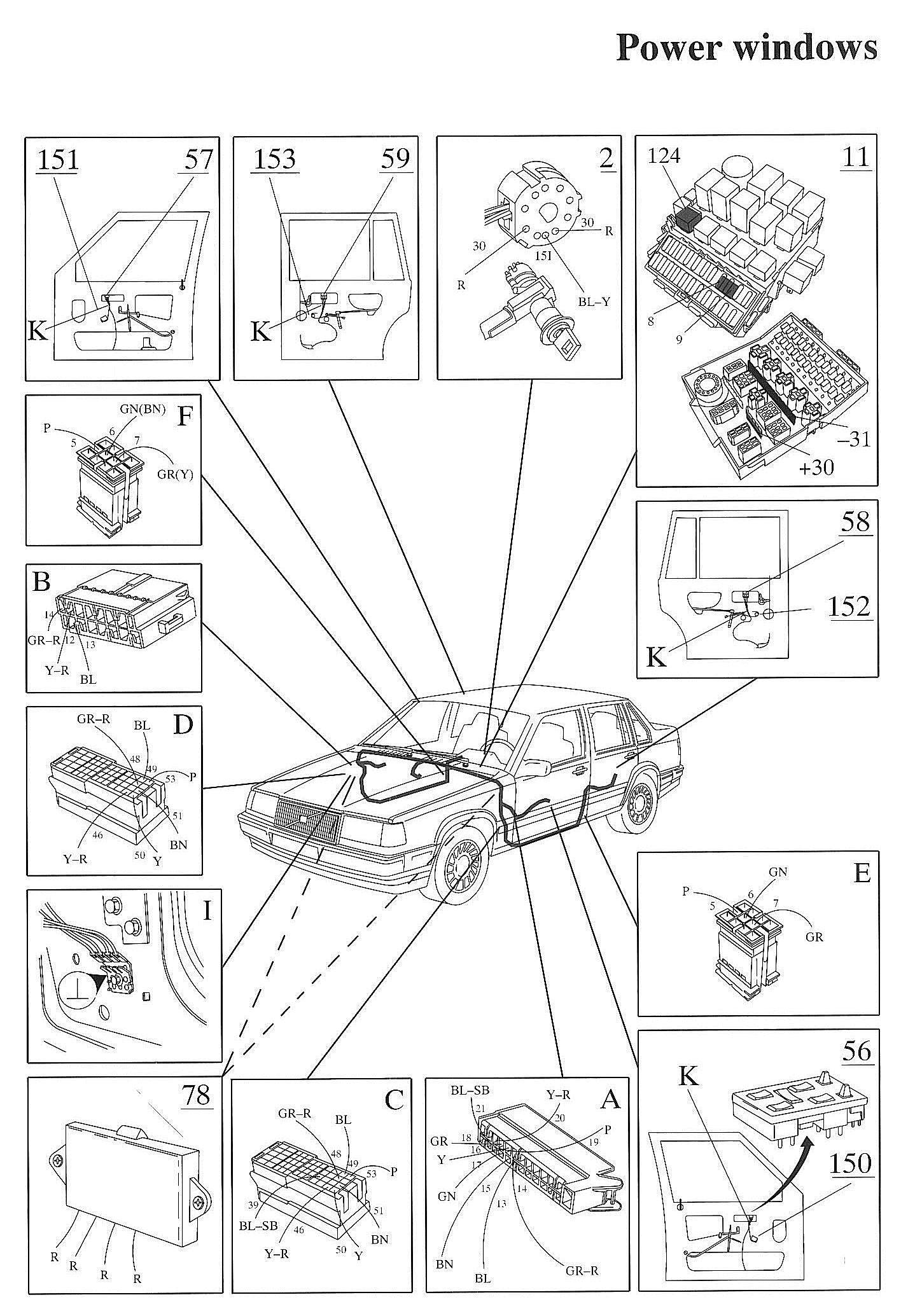

Component / Location Views:

Wiring Diagrams:

LEGEND
2 Ignition switch

11 Fuse box
31 Ground busbar in electrical distribution unit
53 Switch, heater pad, passenger seat
56 Power window switches in driver's door
FL = front left
FR = front right
Rear Switch for rear power windows
RL = rear left
RR = rear right
57 Power window switch in passenger door
58 Switch, RL
59 Switch, RR
78 Positive terminal

124 Relay, power windows/ seat heater pads
142 Thermostat, driver's seat
150 Motor, driver's door
151 Motor, passenger door, front
152 Motor, RL
153 Motor, RR
375 Switch, heater pad, driver seat

2142 Thermostat, passenger seat

A Left A-post
B Right A-post
C Left A-post
D Right A-post
E Left B-post
F Right B-post
I Ground, right A-post
K Door
