Data Link Connector: Locations

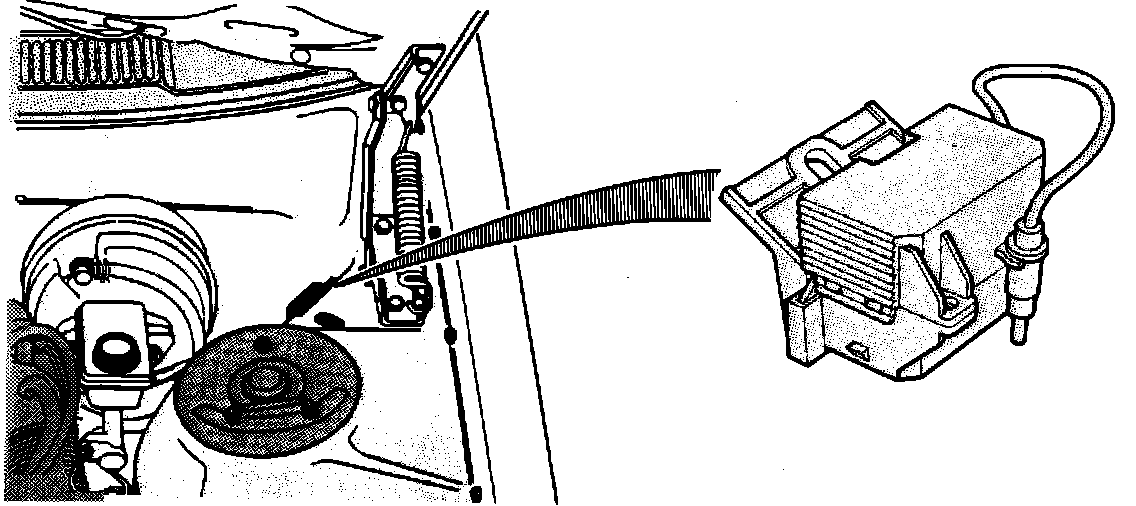

Diagnostic Socket Location:





The diagnostic socket is located behind the left spring strut tower in the engine compartment.
