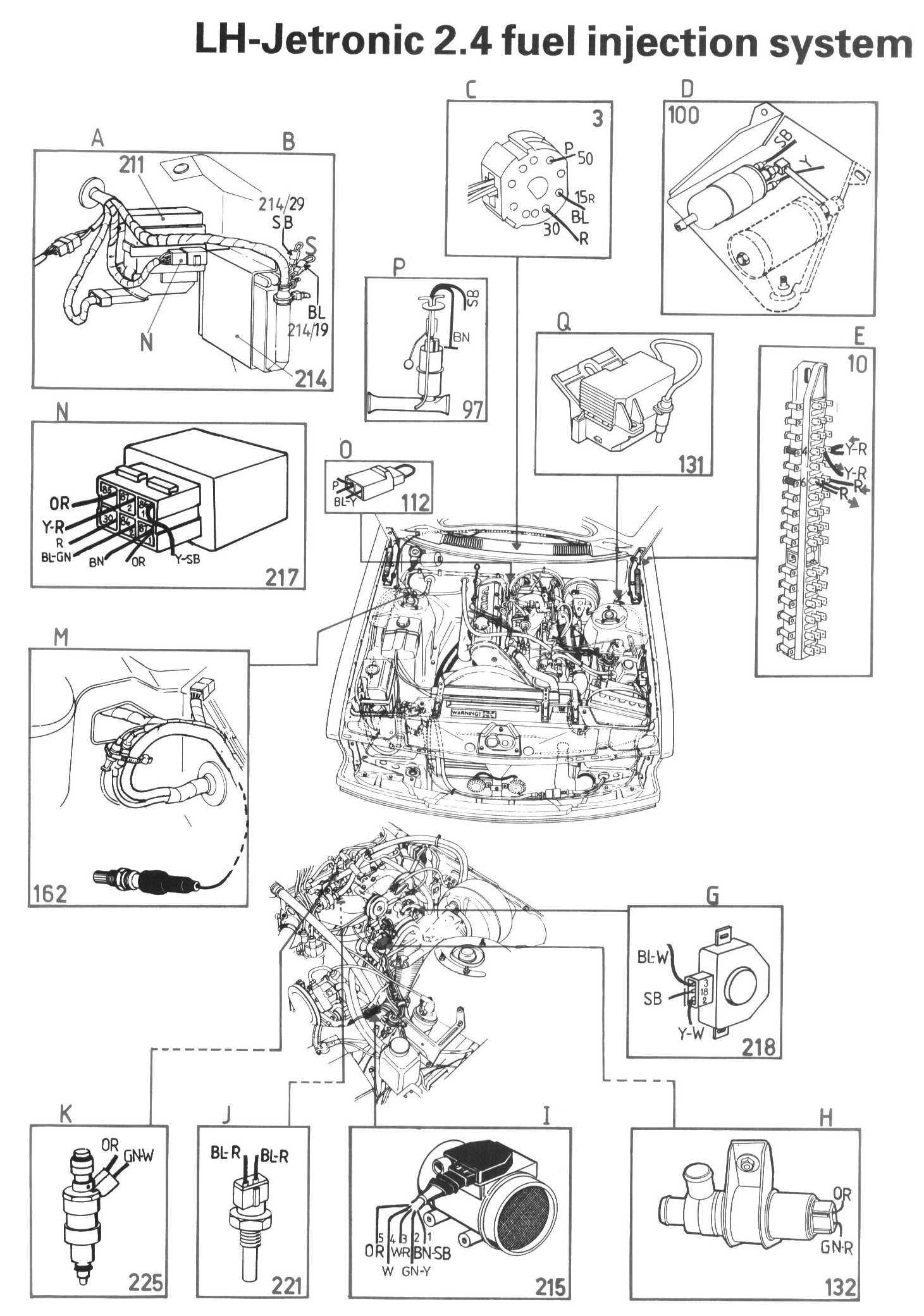

LH-Jetronic Fuel Injection 2.4

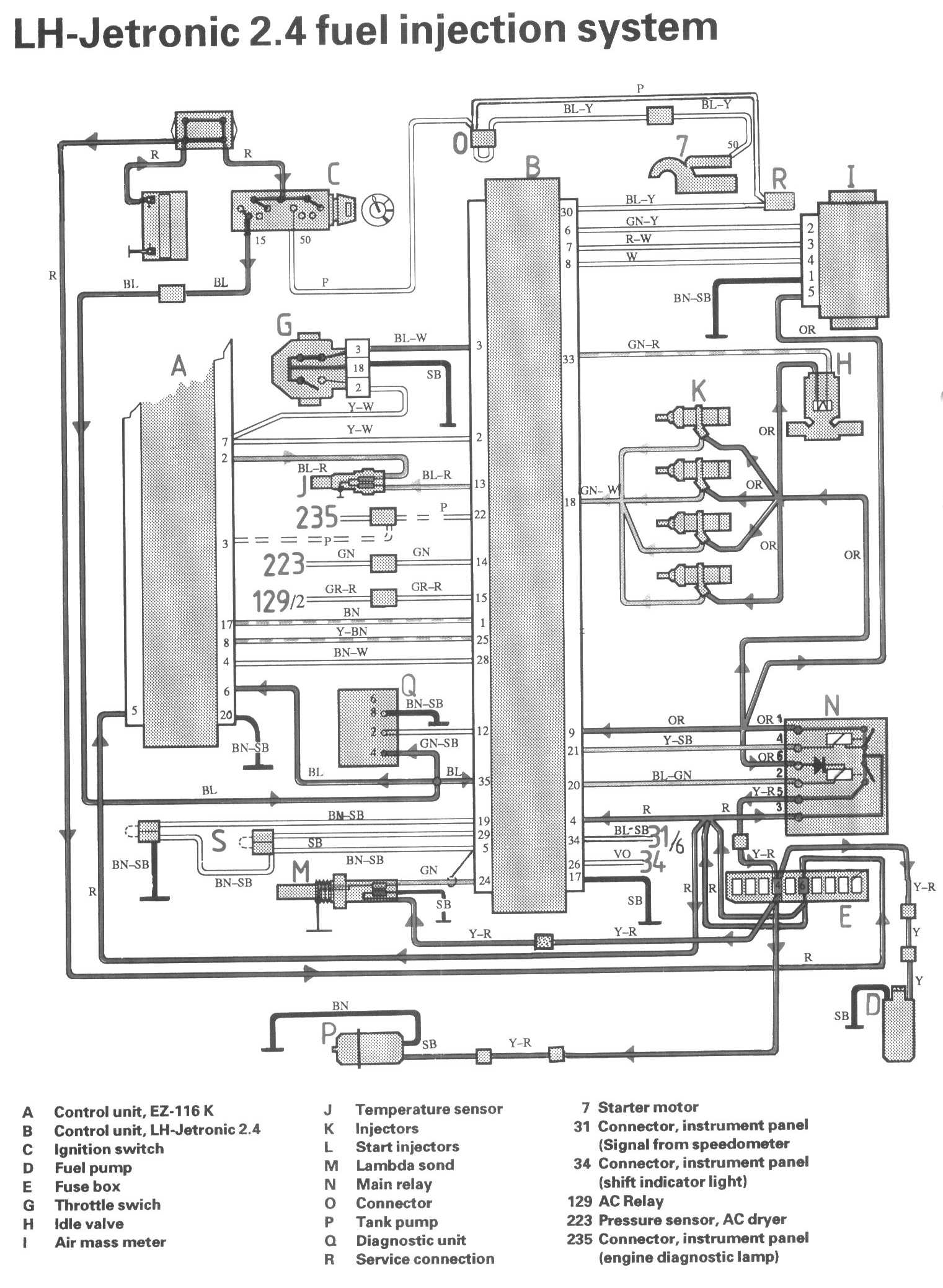

LEGEND
A Control unit. EZ-116 K
B Control unit. LH-Jetronic 2.4
C Ignition switch
D Fuel pump
E Fusebox
G Throttle switch
H Idle valve
I Air mass meter
J Temperature sensor
K Injectors
L Start injectors
M Lambda sond
N Main relay
O Connector
P Tank pump
Q Diagnostic unit
R Service connection

7 Starter motor

31 Connector. instrument panel (Signal from speedometer)
34 Connector. instrument panel (shift indicator light)

129 AC Relay
223 Pressure sensor, AC dryer
335 Connector. instrument panel (engine diagnostic lamp)
