LB. Engine Will Not Rev

LB. THE ENGINE WILL NOT REV OR IS SLUGGISH

Intermittent faults

If symptoms occur intermittently the Volvo ST can help.

LB1

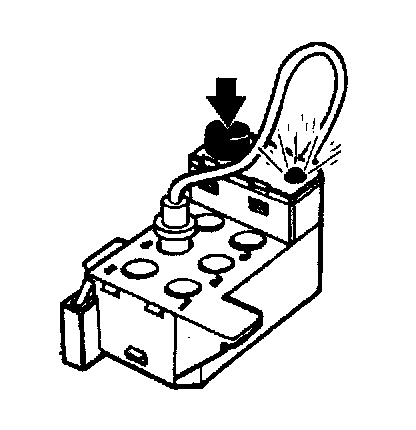

Checking The Diagnostic Trouble Codes (DTCs)

If DTC 2-1-4 EZ 116 K is not logged




-Continue with Mechanical overview LB2.

If DTC 2-14 EZ 116 K Is logged

Cars with automatic transmission:

-Continue with LB7: If DTC 2-1-4 is logged (cars with automatic transmission).

Cars with manual gearboxes:

-Continue with LB8: If DTC 2-1-4 is logged (cars with manual gearboxes).

LB2

Mechanical Overview




-Check the camshaft position relative to the crankshaft in accordance with the Service manual for that engine section.

-Check that the air intake and air filter are not clogged.

-Check that the exhaust system is not clogged.

If camshaft position, air intake and air filter are OK

-Check the RPM sensor connector LB3.

LB3

Checking The RPM Sensor Connector

-Take apart the RPM sensor connector.

-Carefully scrape away dirt and deposits in the connector and clean the terminals.

-Grease the connector. Use PIN 1161417.

-Put the connector together.




-Check that the RPM sensor is properly located in its bracket.

If the connector and RPM sensor are OK

-Check the tank pump resistance LB4.

LB4

Checking The Tank Pump Resistance

-Ignition off.

-Take apart the HC2S 2-pole connector.

-Disconnect interior lighting.




-Remove fuse 4 and check that it is intact.

Connect an ohmmeter between the left-hand terminal on fuse 4 and GND.

The ohmmeter should read approx. 8 OHMS.

If this value is OK

-Check the tank pump LB5.

If the reading is infinite resistance

-Check the wiring and connections between fuse 4 and the tank pump for breaks.

If the reading is 0 OHMS.

-Check the wiring between fuse 4 and the tank pump for grounding.

If the reading Is incorrect

-Check the tank pump connections and GND point for contact resistance.

If the connections and GND point are OK: Try using a new tank pump.

-Reconnect the HO2S connector

-Reconnect interior lighting.

LB5

Checking The Tank Pump

-Ignition on.

Later models:




Listen to hear if the tank pump is Operating.

The tank pump should pump for about three seconds after the ignition has been switched on.

Earlier models:

-Turn starter motor and listen to see if tank pump starts.

-Operate the starter motor and listen to hear if the tank pump is operating.

If the tank pump is operating

X. Check the fuel pressure and residual pressure.

-If the fuel pressure and residual pressure are OK: Continue with Connecting the test box LB6.

If the tank pump Is not operating

-Readings indicate that there is no fault in the tank pump electrical circuit. The tank pump has a mechanical fault:

Try using a new tank pump.

LB6

Connecting The Test Box




-Connect the test box.

-Check all signals to MFI LH 2.4 or LH 3.1.

LB7

If Diagnostic Trouble Code (DTC) 2-1-4 Is Logged (cars With Automatic Transmission)




-Delete the DTC.

-Check the RPM sensor connector for contact resistance.

-Check that the RPM sensor is correctly located in its bracket.

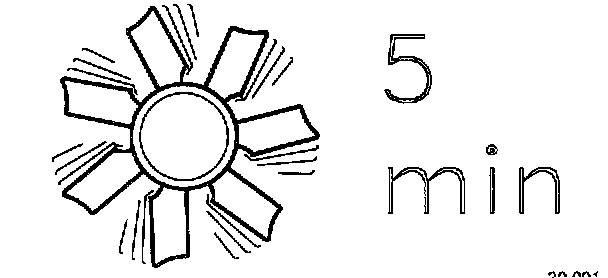

-Run the engine at over 1500 rpm for 5 minutes.

If the DTC recurs

-Check the drive plate for ovality.

If the DTC does not recur

-The fault took the form of contact resistance or an incorrectly located RPM sensor.

LB8

IF Diagnostic Trouble Code (DTC) 2-1-4 Is Logged (cars With Manual Gearboxes)




-Delete the DTC

-Check the RPM sensor connector for contact resistance.

-Check that the RPM sensor is correctly located in its bracket.




-Run the engine at over 1500 rpm for 5 minutes.

If the DTC recurs

-Connect the test box LB6.

If the DTC does not recur

-The fault took the form of contact resistance or an incorrectly located RPM sensor. Clean the RPM sensor connector.
