Cruise Control Servo: Service and Repair

Replacing vacuum servo






Remove knee bolster
Remove knee bolster access panel. Remove screws behind the access panels. Remove bolster.






Fold down sound proofing






Replace vacuum servo

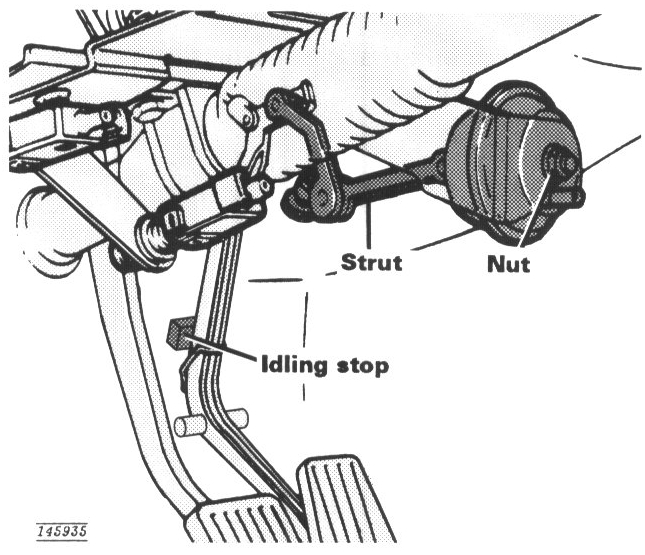

Remove vacuum servo strut. Mark locking strut positions. Disconnect hose and remove nut.
Replace vacuum servo.
Adjust strut so that the throttle pedal reaches the idling stop without play in the joints.
The tightening torque of the nut is 18 ±2 Nm (13 ±1.5 ft lb)


Reinstall all parts
