Volvo
>>
1994
>>
850 L5-2.4L VIN 55 B5254S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Ground Information
Ground Information

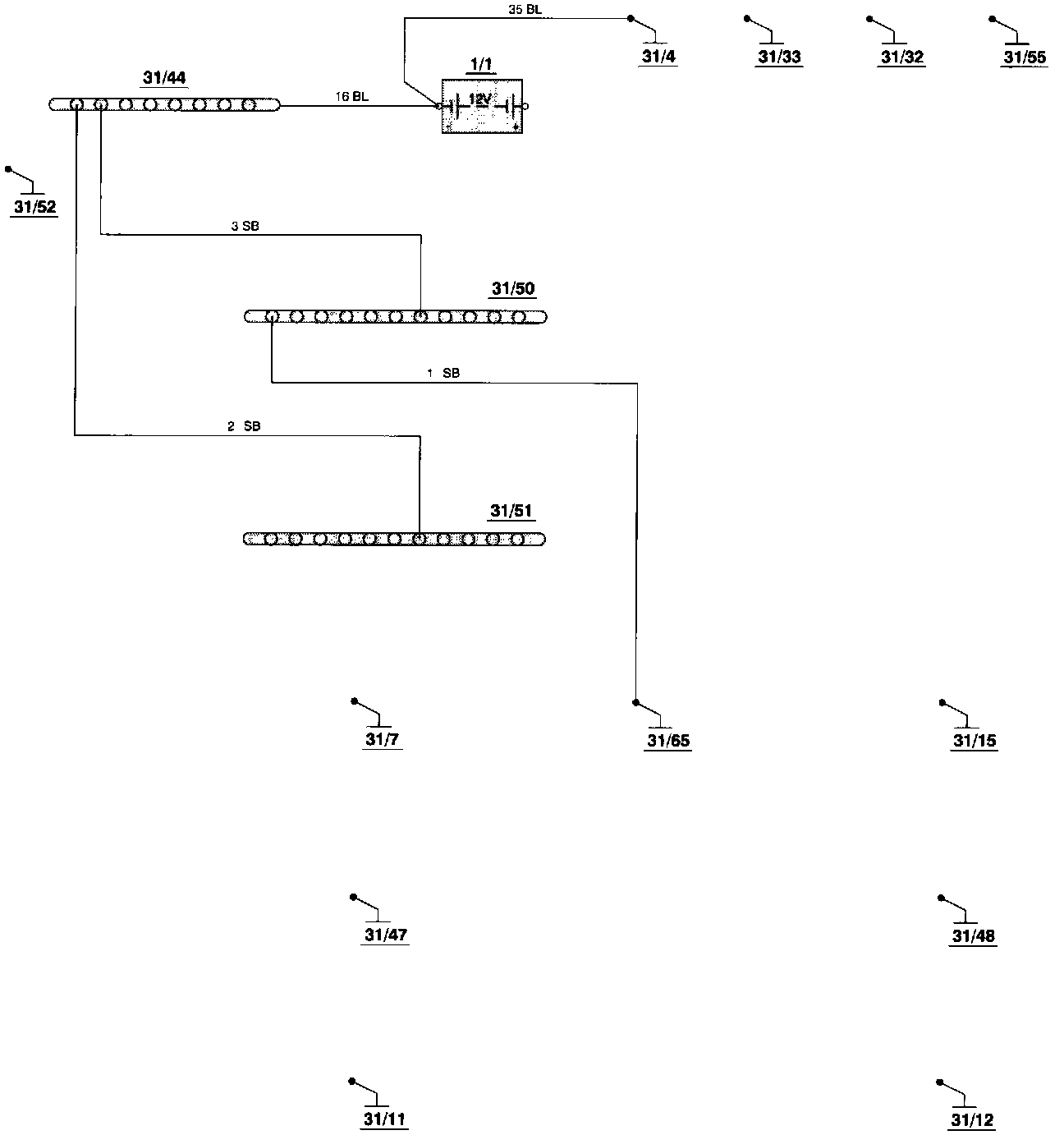

Ground Connections:

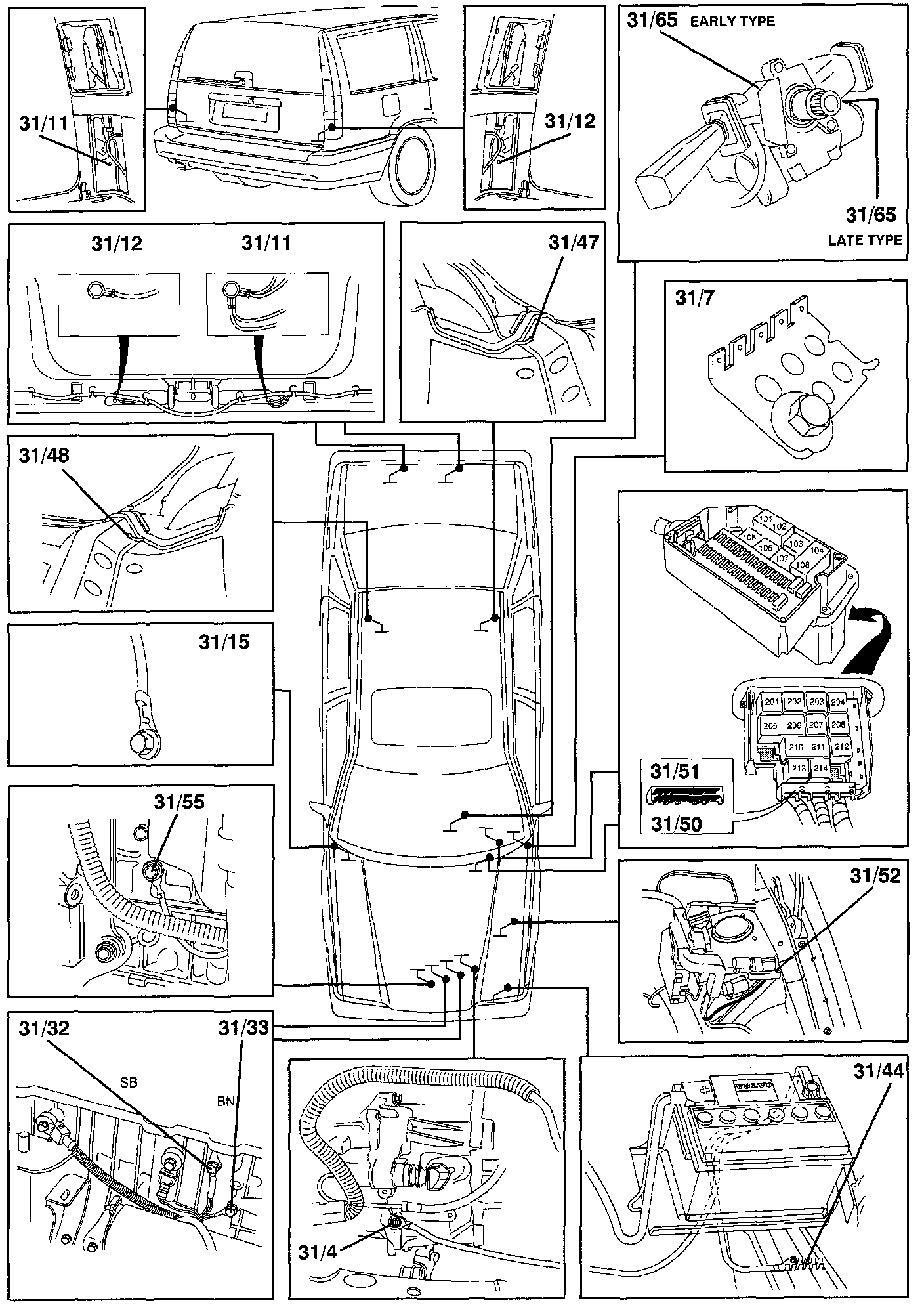

Ground Locations:
