Diagram Information and Instructions
>>
Harness and Connector Overview
Harness and Connector Overview

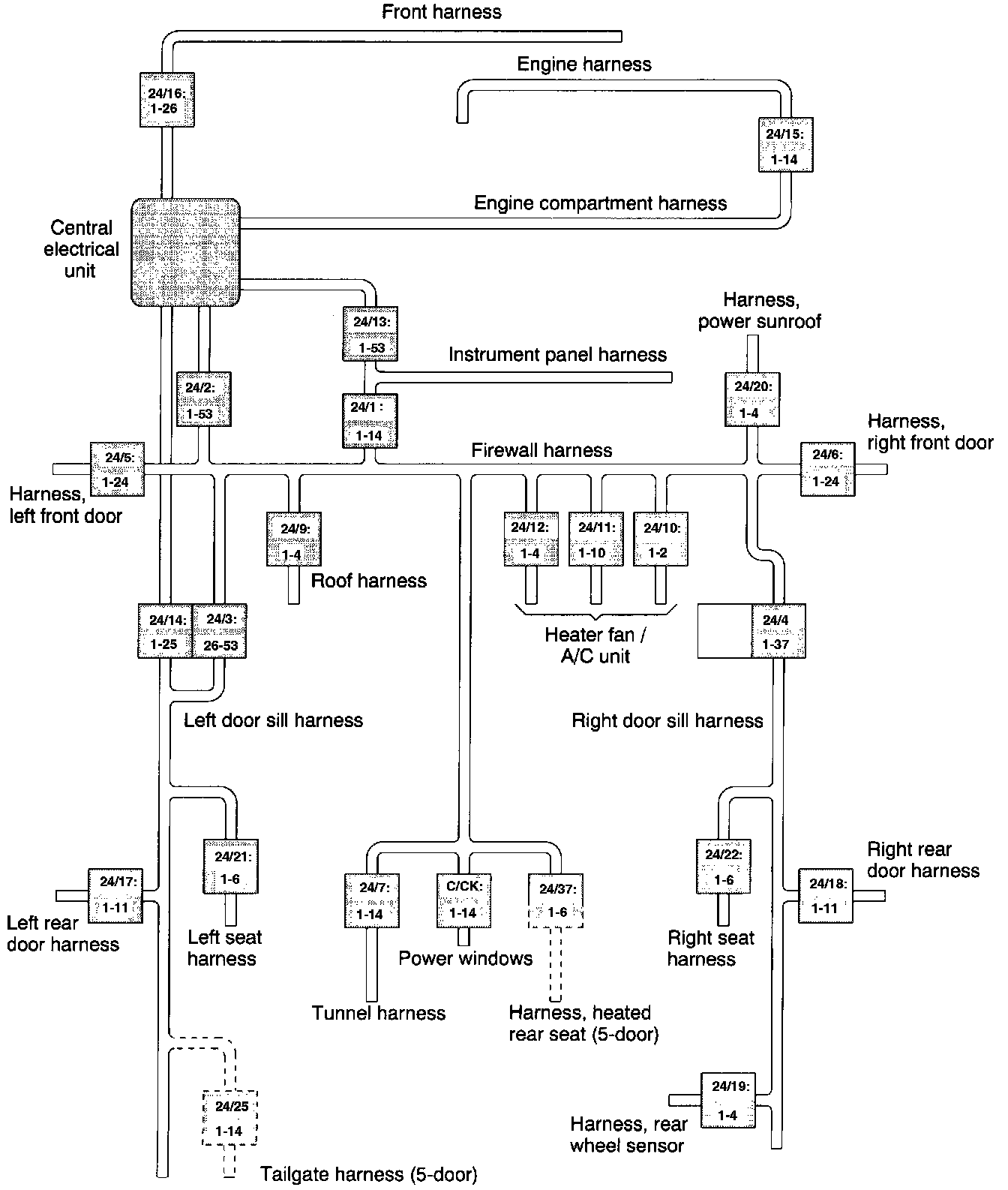

Harness And Connector Overview:
