Cylinder Block and Intermediate Section
RECONDITIONING THREADS, CYLINDER BLOCK AND INTERMEDIATESECTION

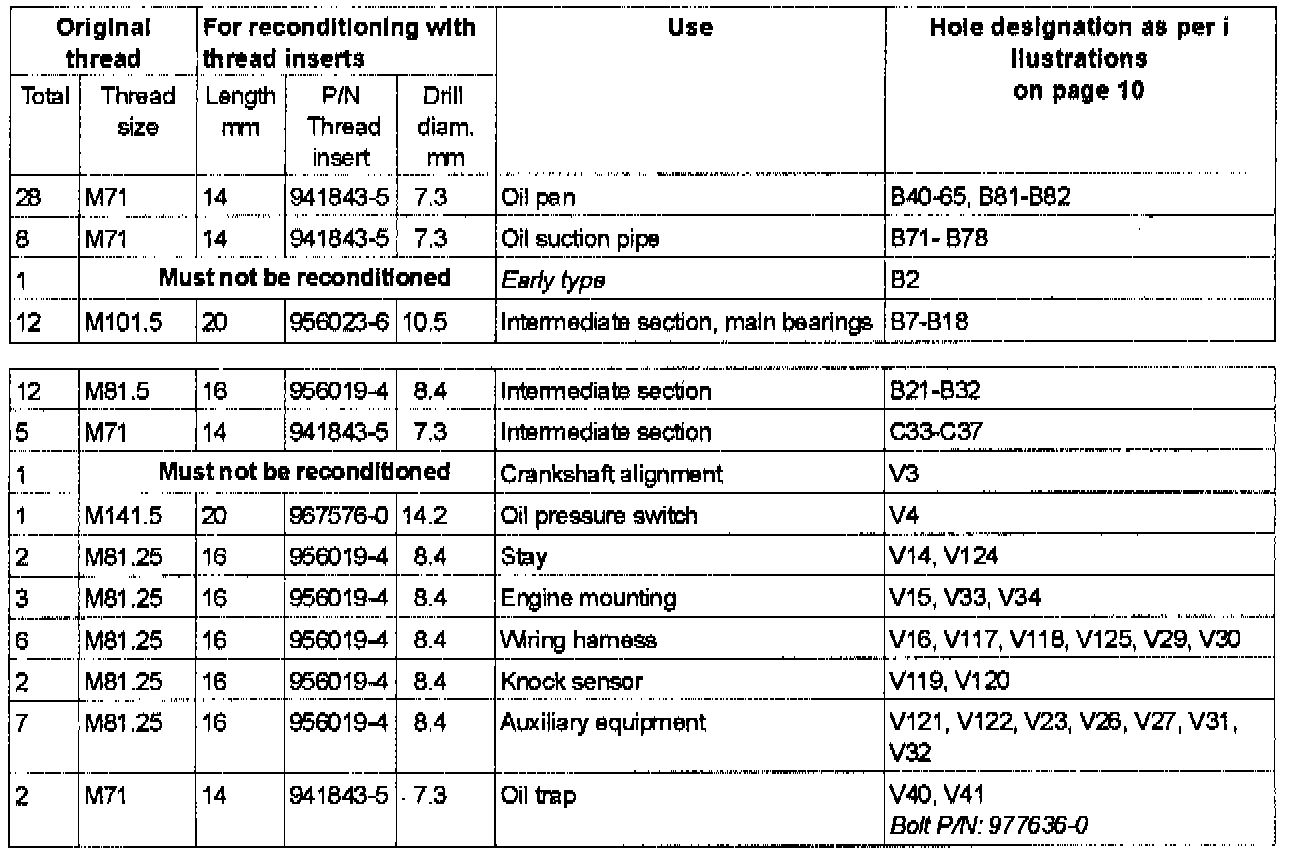

The table, which is continued, shows which threaded holes in the cylinder block and intermediate section can be reconditioned and which thread inserts to use.
The table also shows drill depth and drill diameter sizes, as well as the part number for the respective thread insert.
Note
Holes with the designation B2 and V3 must not be reconditioned with thread inserts (the part must be replaced).
CYLINDER BLOCK AND INTERMEDIATE SECTION

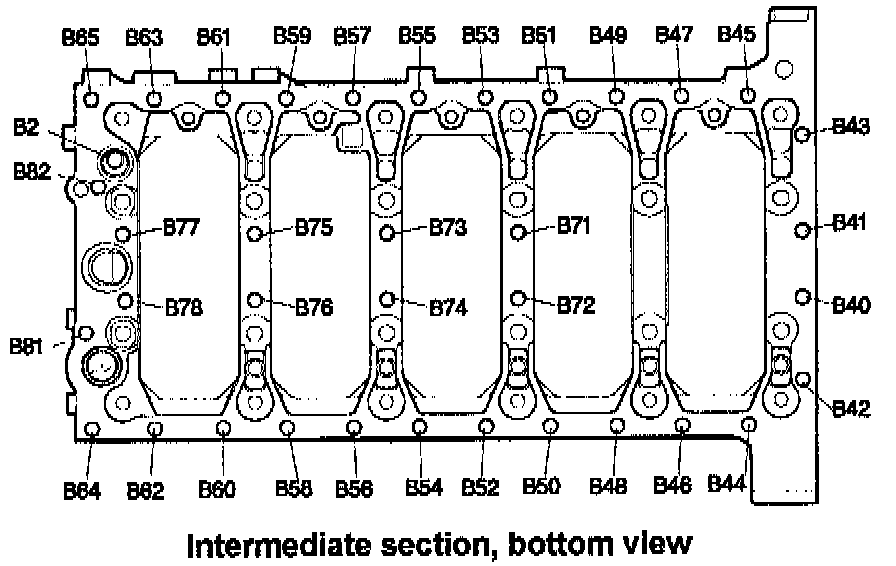

Intermediate Section, Bottom View

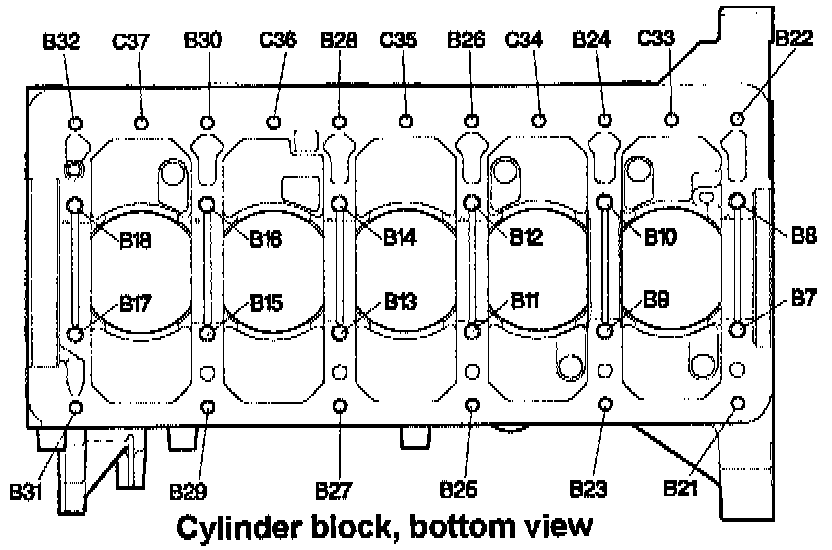

Cylinder Block, Bottom View
Cylinder Block and Intermediate Section, View From Left

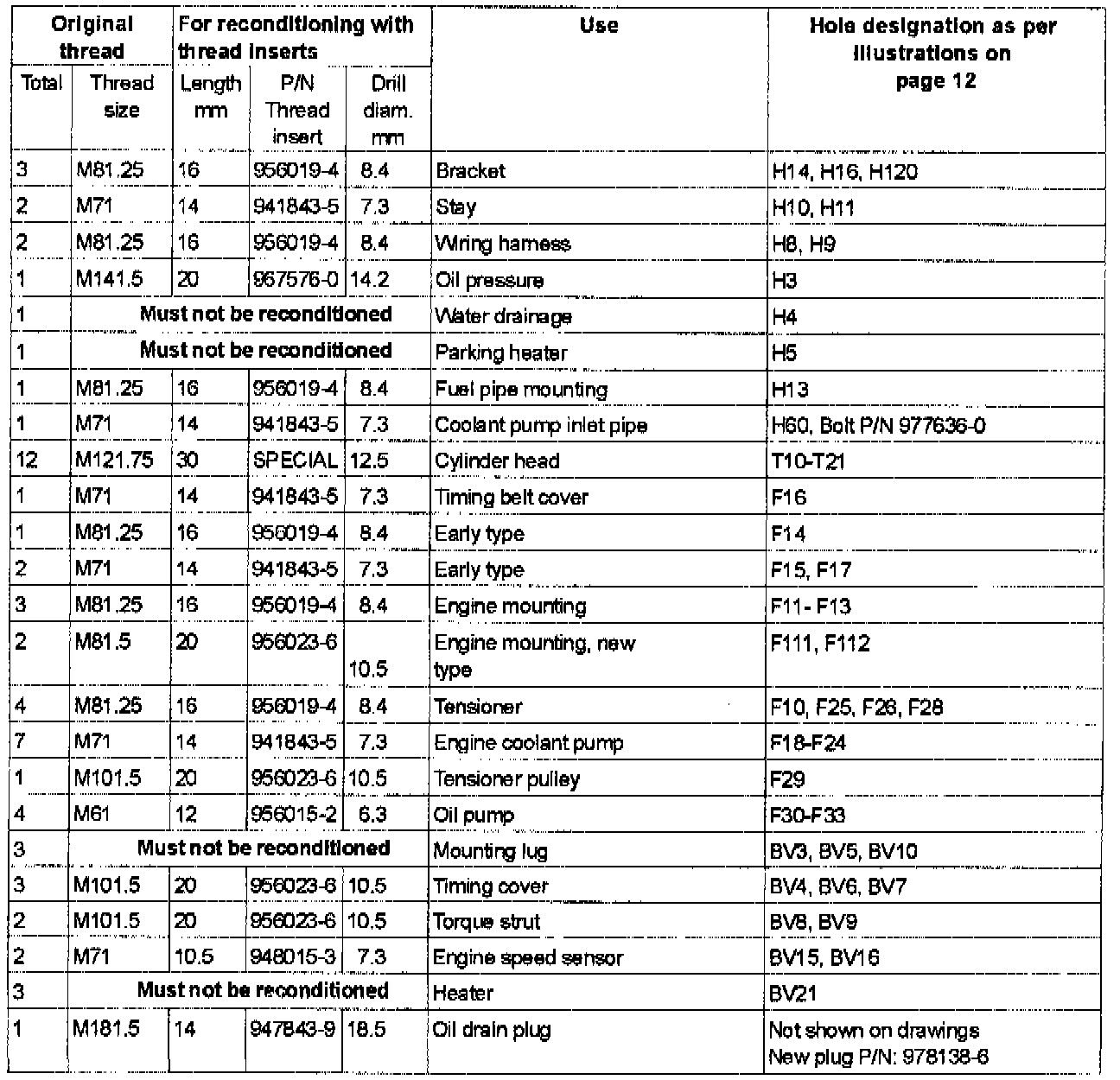

The table which is continued, shows which threaded holes in the cylinder block and intermediate section can be reconditioned and which thread inserts to use. The table also shows drill depth and drill size as well as the part number for the respective thread insert.
Note
Holes with the designation H4, H5, BV3, BV5, BV10 and BV21 must not be reconditioned with thread inserts (the part must be replaced).

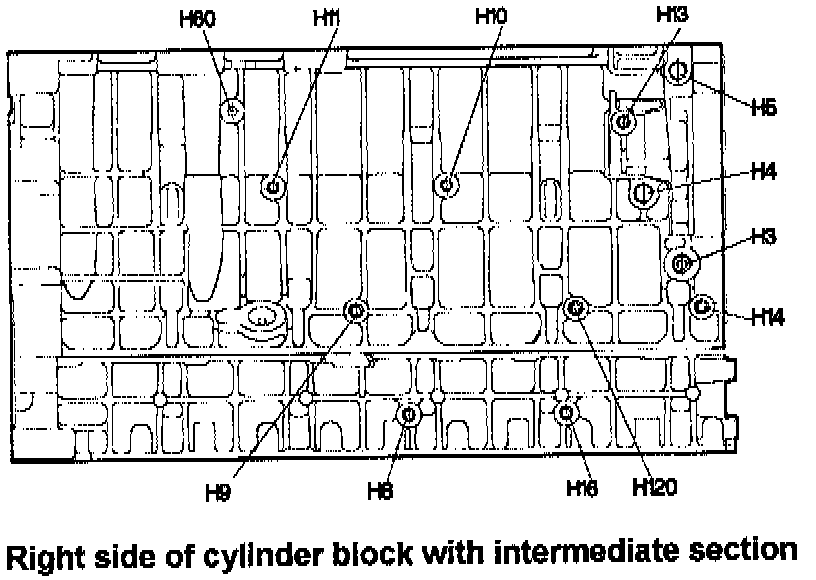

Right Side of Cylinder Block With Intermediate Section

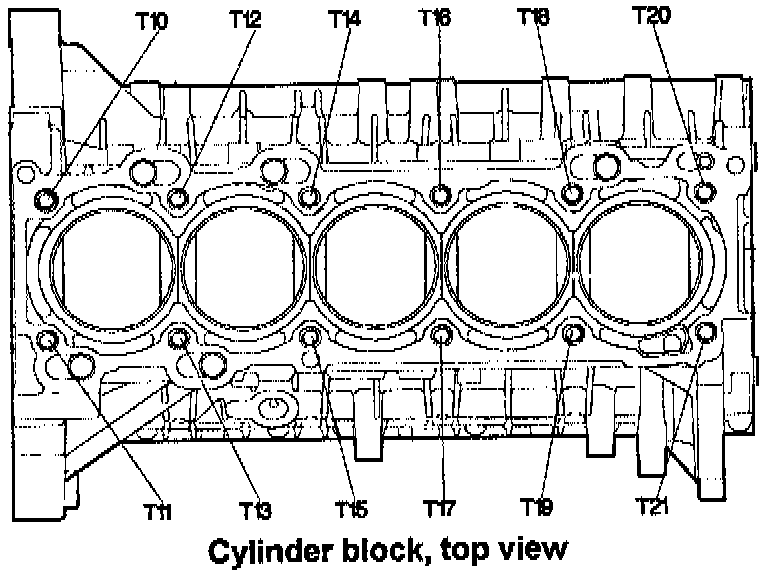

Cylinder Block, Top View

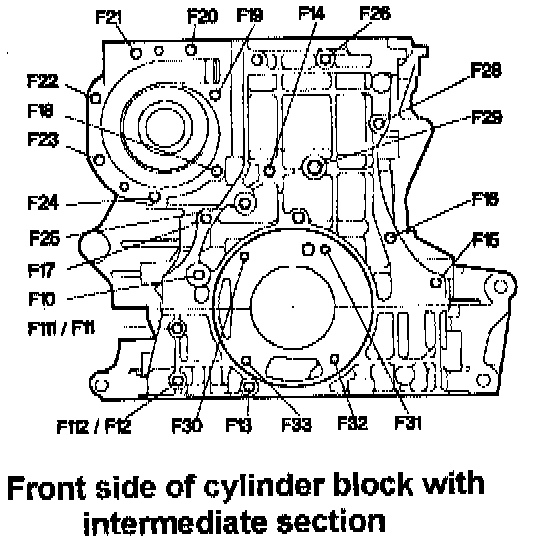

Front Side of Cylinder Block with Intermediate Section

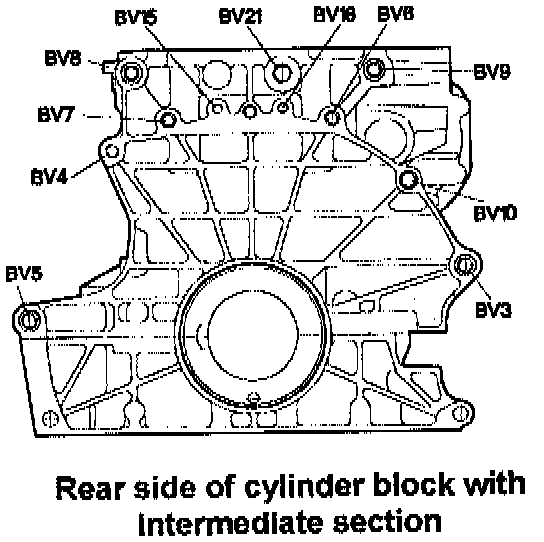

Rear Side of Cylinder Block with Intermediate Section
