Ignition Coil Pack: Service and Repair

REMOVE AND INSTALL
1. Disconnect battery ground cable.
2. Remove ignition coil cover screws and cover.

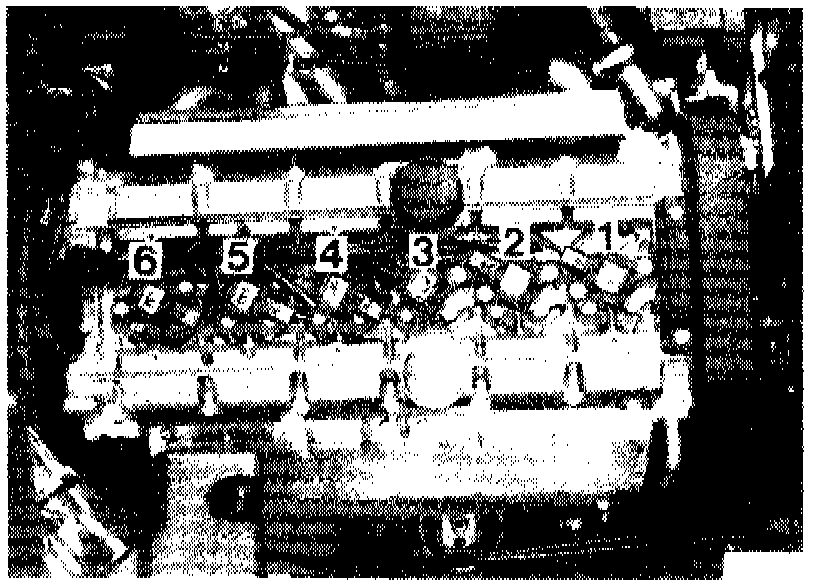

Fig. 1 Ignition Coils:

3. Mark positions of ignition coils, Fig.1 , then remove coil retaining bolts.
4. Disconnect coil electrical connectors and remove coils.
5. Reverse procedure to install.
