Electrical Diagrams

Wiring Diagram

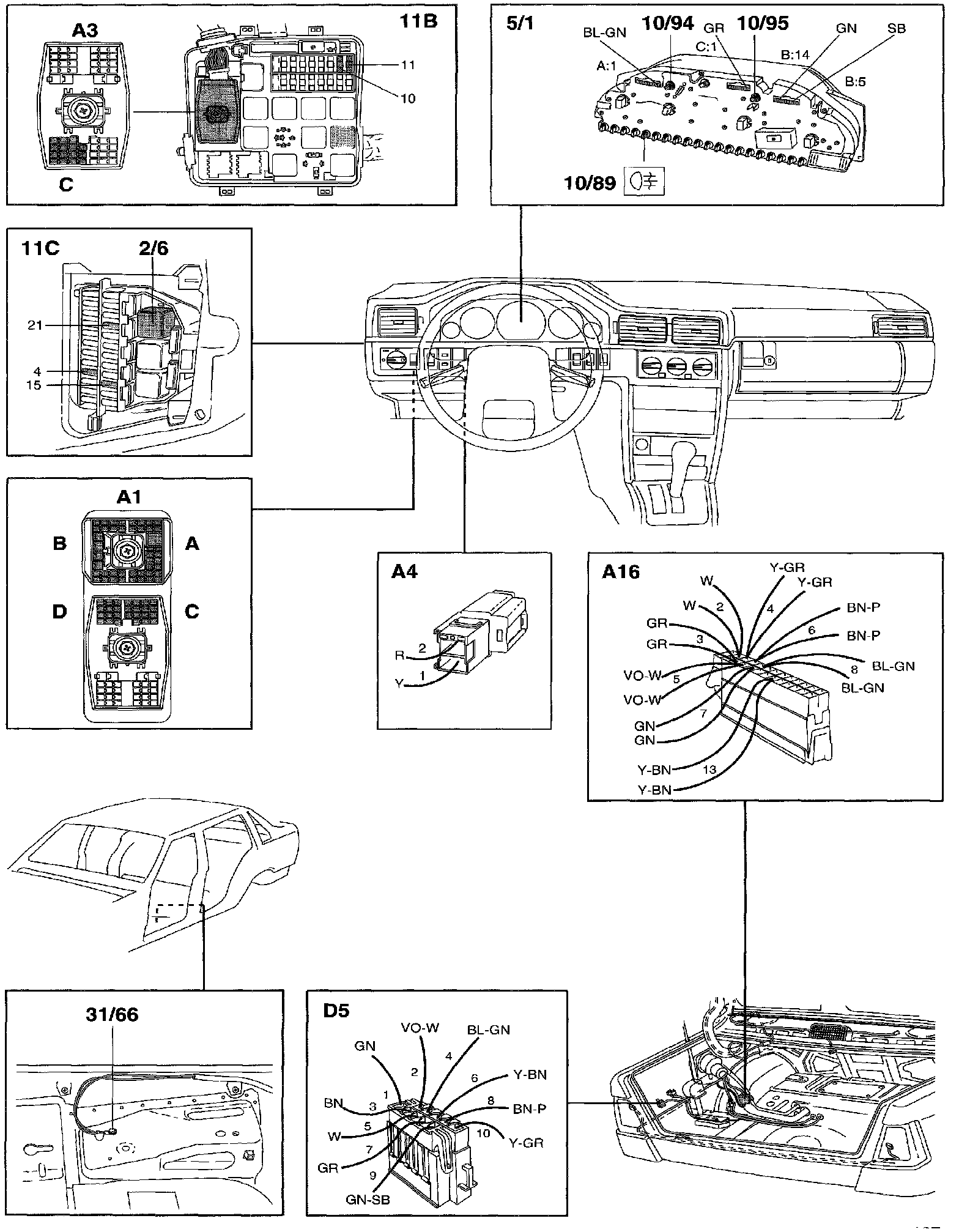

Component Location

Component I.D. List
A1 Multi connector left A-pillar
A3 Multi connector in relay-/fusebox engine compartment CH engine CH engine compartment
A4 2-pin connector left A-pillar CH engine compartment - CH in-car (white)
A16 24-pin connector CH in-car - CH rear
D5 Connector towing hook, 10-pin (not USA/CDN)
2/6 Overload relay 15I
5/1 Combined instrument panel
10/89 Indicator light rear tog lights
10/94 Indicator light right turn signal
10/95 Indicator light left turn signal
11B/1-18 Fuses in relay/fuse box engine compartment
11C/1-24 Fuses in fuse box
31/66 Ground connector left seat lift
