Ground Locations

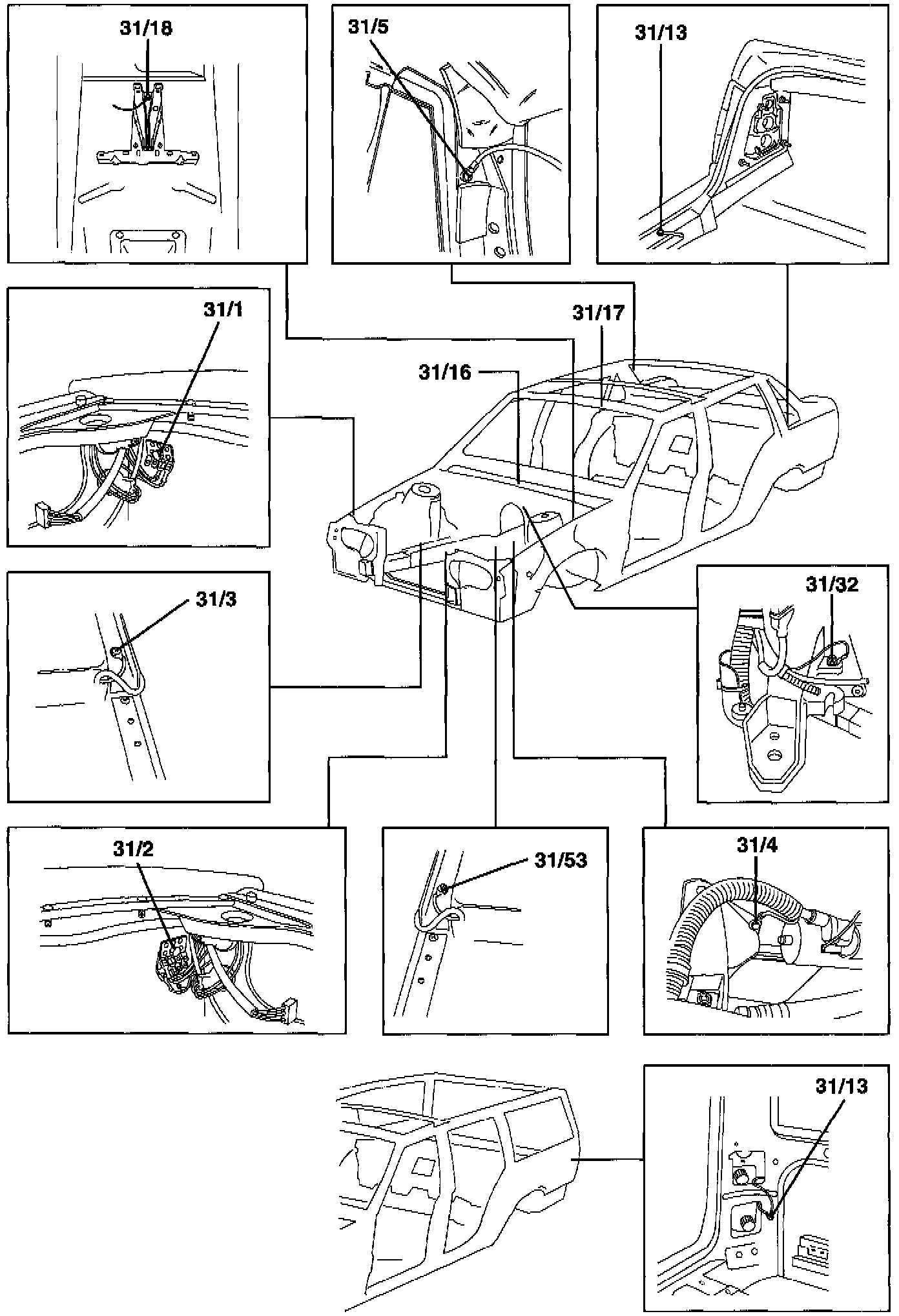

Ground Point Locations

Ground Point I.D. List
31/1 Ground terminal right front wing
31/2 Ground terminal left front wing
31/3 Ground point body
31/4 Ground point engine
31/5 Ground terminal, heated rear window
31/13 Ground terminal in cargo area
31/16 Ground terminal by windshield wiper motor
31/17 Ground terminal by sunroof motor
31/18 Ground terminal on tunnel (radio)
31/32 Ground point on engine (power ground)
31/53 Ground point left side member in engine compartment

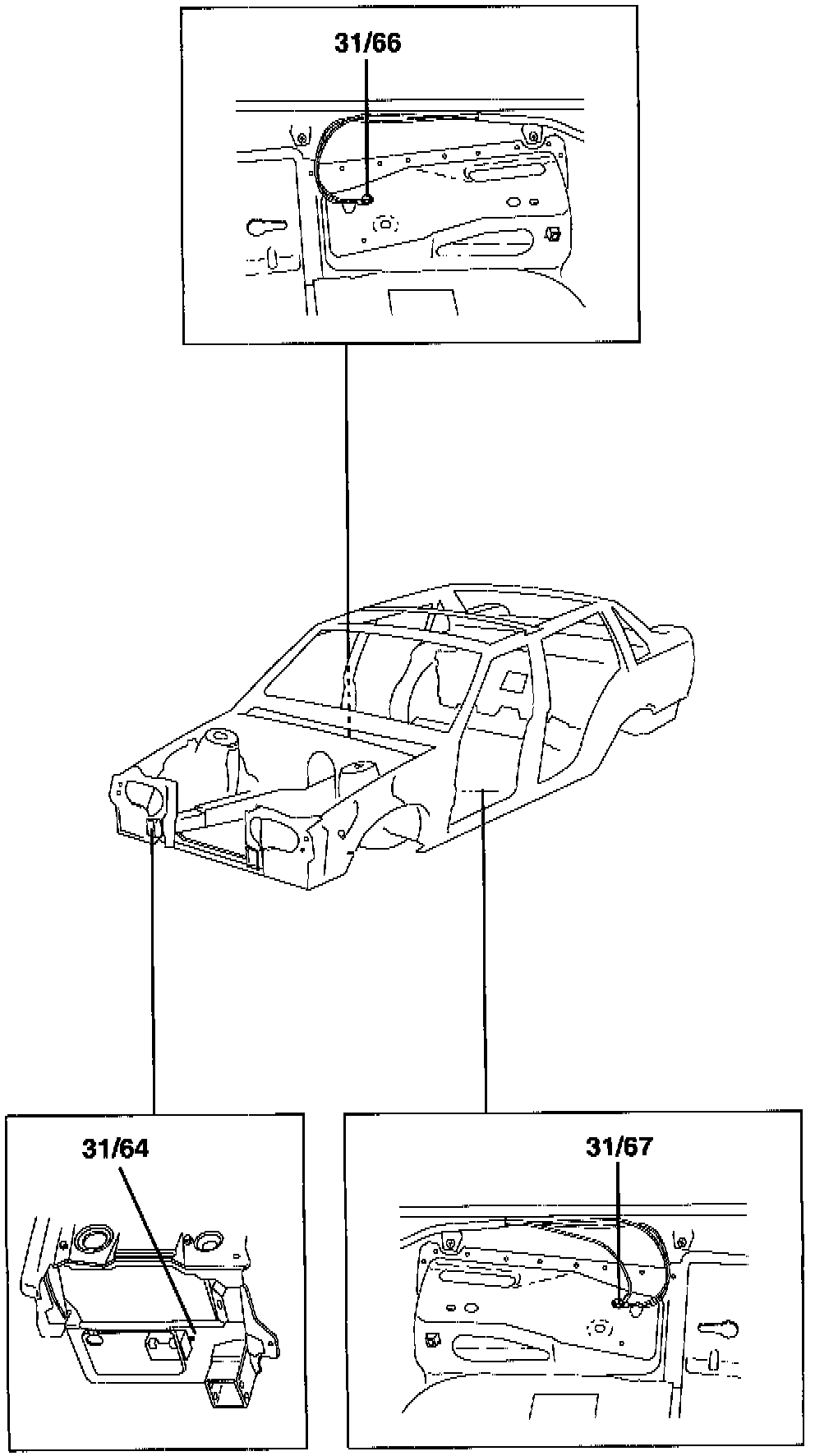

31/64 Ground point engine coolant fan (FC)
31/66 Ground point left seat support
31/67 Ground point right seat support
