Control Panel (MCC)

Control panel (MCC)

Removing control panel

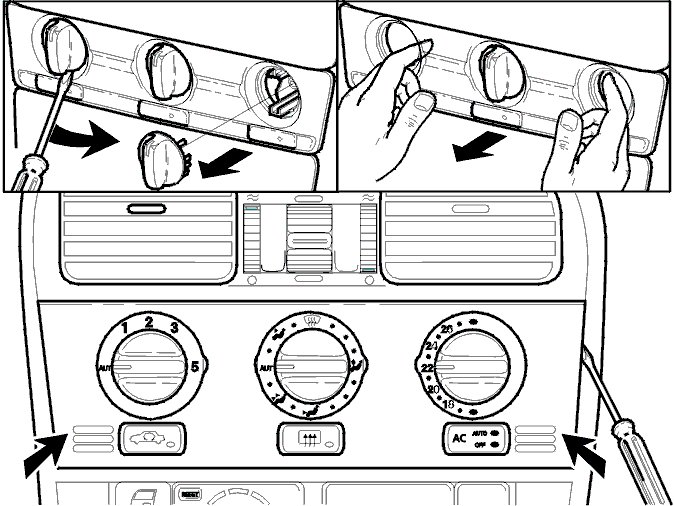

- Pull the knobs out from the control panel. Use a small screwdriver).




- Remove the front panel: Insert fingers in the opening. Pull carefully.
- Disconnect the cables.

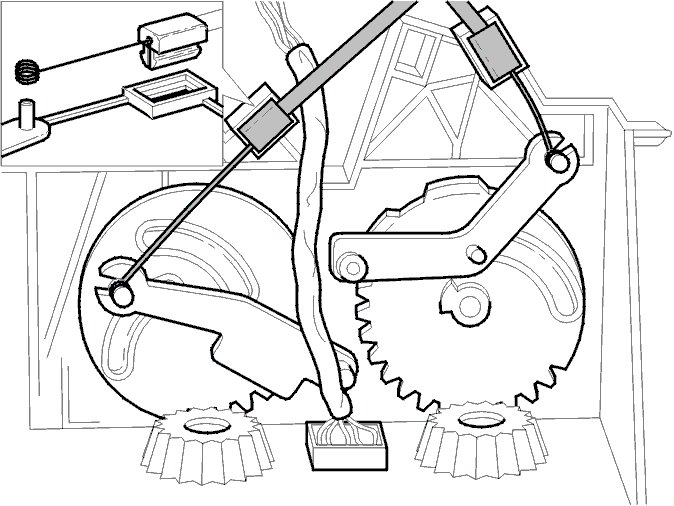

- Press out the locking. Disconnect the inner cables.

Installing the control panel

Install:
In reverse order.
Adjustment, see Adjusting control cables (MCC) Adjustments.
