Checking Engine Oil Level

CHECKING THE OIL LEVEL:

The oil level should be checked every time the car is refuelled. This is especially important during the period up to the first service.

CAUTION: Not checking the oil level regularly can result in serious engine damage if the oil level becomes too low.

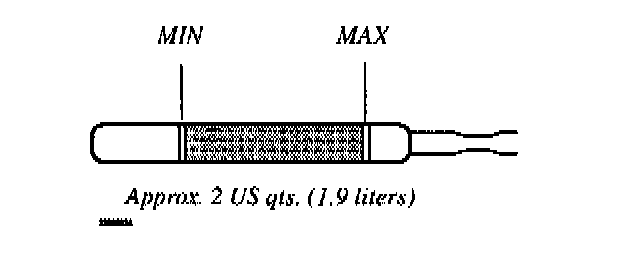

Park the car on a level surface and wait for at least 3 minutes after the engine has been switched off. Be sure the oil level is maintained between the upper and lower marks on the dipstick. If oil is added, it should reach the MAX mark on the dipstick. Low oil level can cause internal damage to the engine and overfilling can result in high oil consumption. The distance between the dipstick marks represents approx. 2 US qts (1.9 liters). The oil should preferably be checked when cold, before the engine has been started.

NOTE: The engine must be stopped when checking the oil. Do not fill to the max when the engine is hot.

WARNING! Oil spilled on a hot exhaust pipe constitutes a fire risk.
