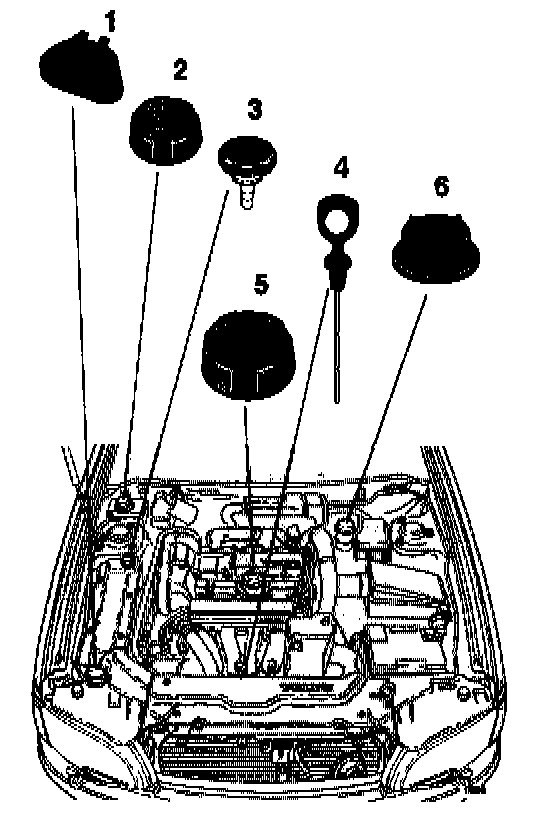

Fluid Level Check Points

1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze).

2 Coolant level should he between the expansion tank marks. Mixture: 50% antifreeze and 50% water.

3 Power steering - When cold, the level must not be above the MAX mark. Top up if necessary with ATF fluid.

4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx. 2 US qts. (1.9 liters).

5 Oil filler cap.

6 Brake fluid - check, without removing the cap, that the level is above the MIN mark. Use brake fluid DOT 4+.

NOTE: Engine oil should be checked each time the car is refuelled.
