Receiver

Receiver

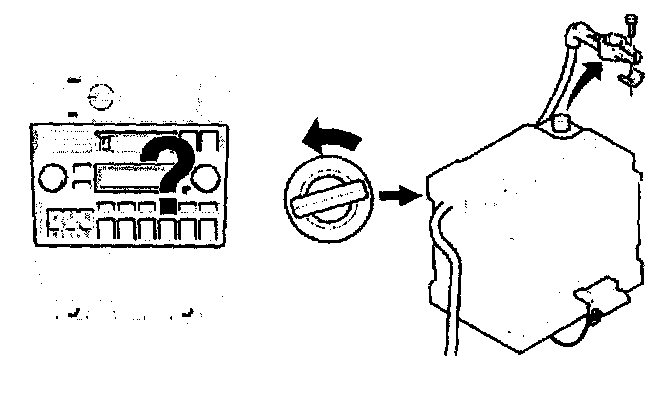

Preparation







- Make a note of the radio code.
- Turn ignition key to position 0.
- Remove the battery ground lead.

Replacing receiver







Remove:
- Remove combined instrument.

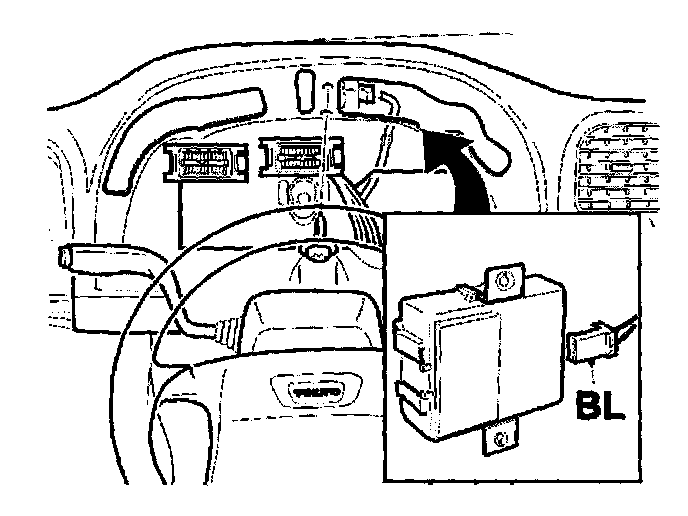

- Remove screws (2x) and turn the receiver out of the dashboard.
- Remove blue (BL) connector.

Install:
- Attach blue (BL) connector.
- Position receiver and install screws (2x).
- Install combined instrument.
- The receiver is connected to the VGLA electrical system and requires a software program unique to the car.
