Windshield Washer Motor: Service and Repair

Preparations







- Ignition off.
- Remove the bumper.







- Remove the pump and sensor from the reservoir.

NOTE: Windshield washer fluid runs out when removing the pump or sensor from the reservoir.

If the car is equipped with an evaporative emission (EVAP) system.

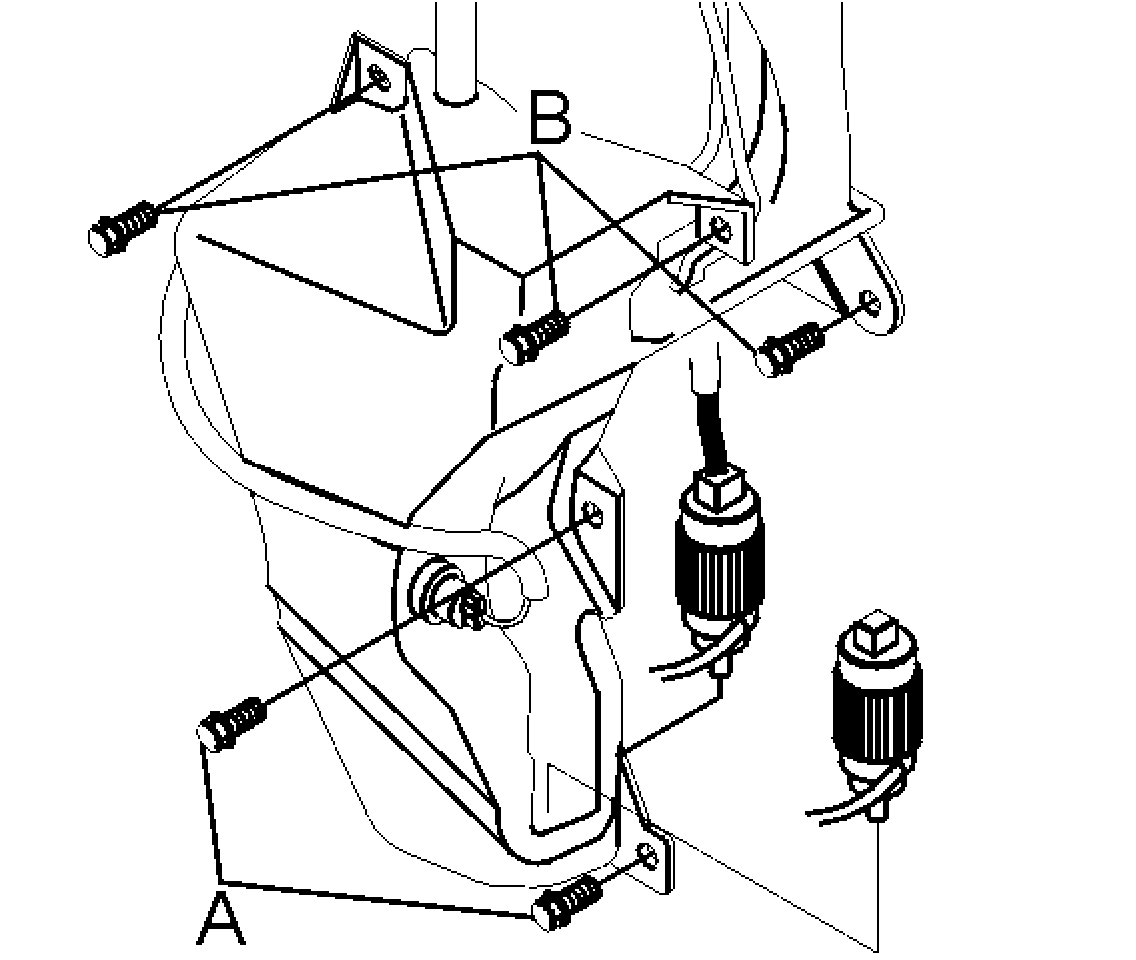

- Remove the two screws (A) securing the EVAP filter in the reservoir
- Remove the three (B) screws for the reservoir. Remove the reservoir.

Install
- the new washer reservoir
- the sensor and pumps
- the bumper.
