Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2007
>>
S80 L6-3.2L VIN 98 B6324S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
74/522
74/522

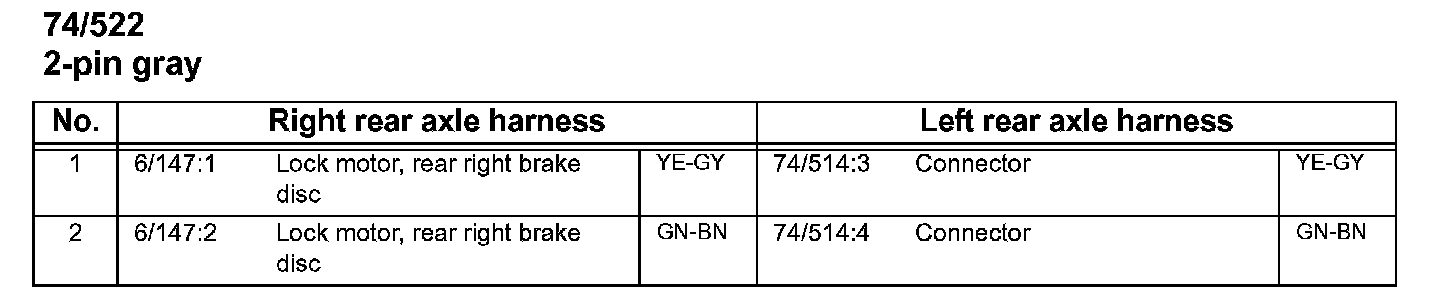

74/522:

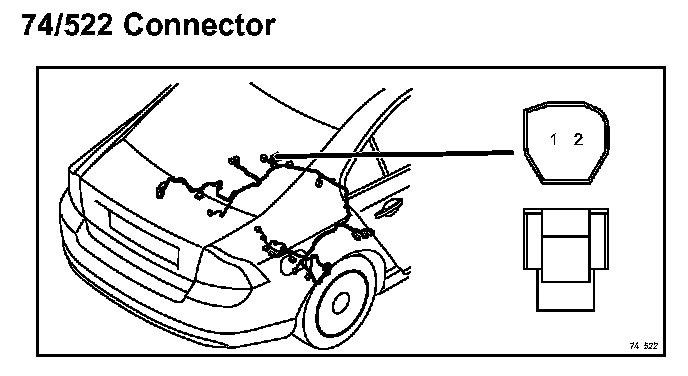

74/522 Connector:
