Rear Subframe

Rear subframe

Operation number: 65263-2

Removal

Note! Removal steps in this procedure may contain installation details.

Perform rear end, service position. Refer to: Rear suspension, service position. Rear Suspension, Service Position

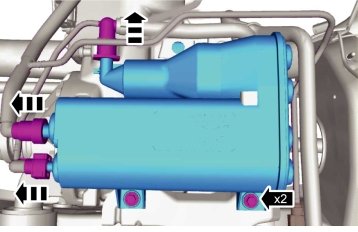

Vehicles with Evaporative Emission Canister




Torque: M6, 10 Nm

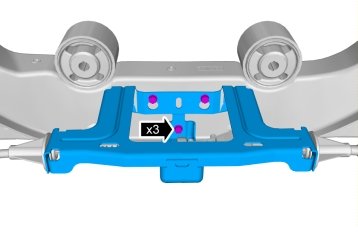

Vehicles with manual parking brake




Torque: M8, 24 Nm

All vehicles

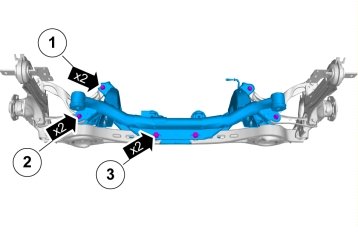

Remove the following items:
1. Torque: Upper arm rear to subframe, 110 Nm

2. Torque: Tie rod to subframe, 110 Nm

3. Torque: Lower arm rear to subframe, 90 Nm

Installation

To install, reverse the removal procedure.
