Engine Oil: Service and Repair

Engine Oil

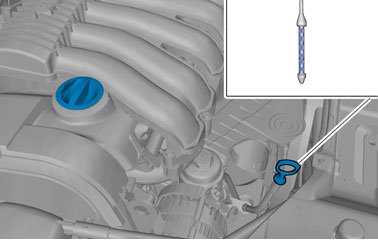

Removal

Note! Removal steps in this procedure may contain installation details.

See information about lifting points body Refer to: Jacking points body Locations




Torque: M6, 10 Nm




Torque: Cover oil filter, 25 Nm








Torque: Drain plug oil pan, 50 Nm

Installation

To install, reverse the removal procedure.





Caution! The fluid level must remain between the MAX and MIN marks.

See information about lubricants, engine Refer to: Lubricants, engine [1][2]Capacity Specifications
