Removal and Replacement

Luggage Compartment Lid

Operation number: 83210-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- lock mechanism Refer to: Door latch, luggage compartment lid Service and Repair
- handle Refer to: External handle, luggage compartment lid External Handle, Luggage Compartment Lid

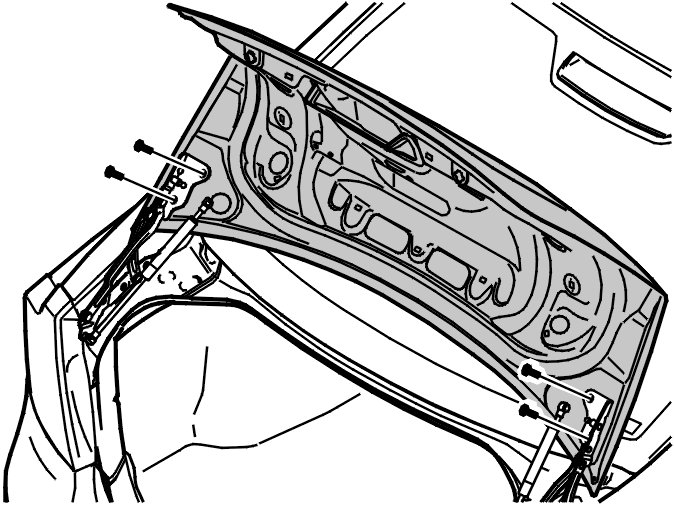

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
