System Specifications

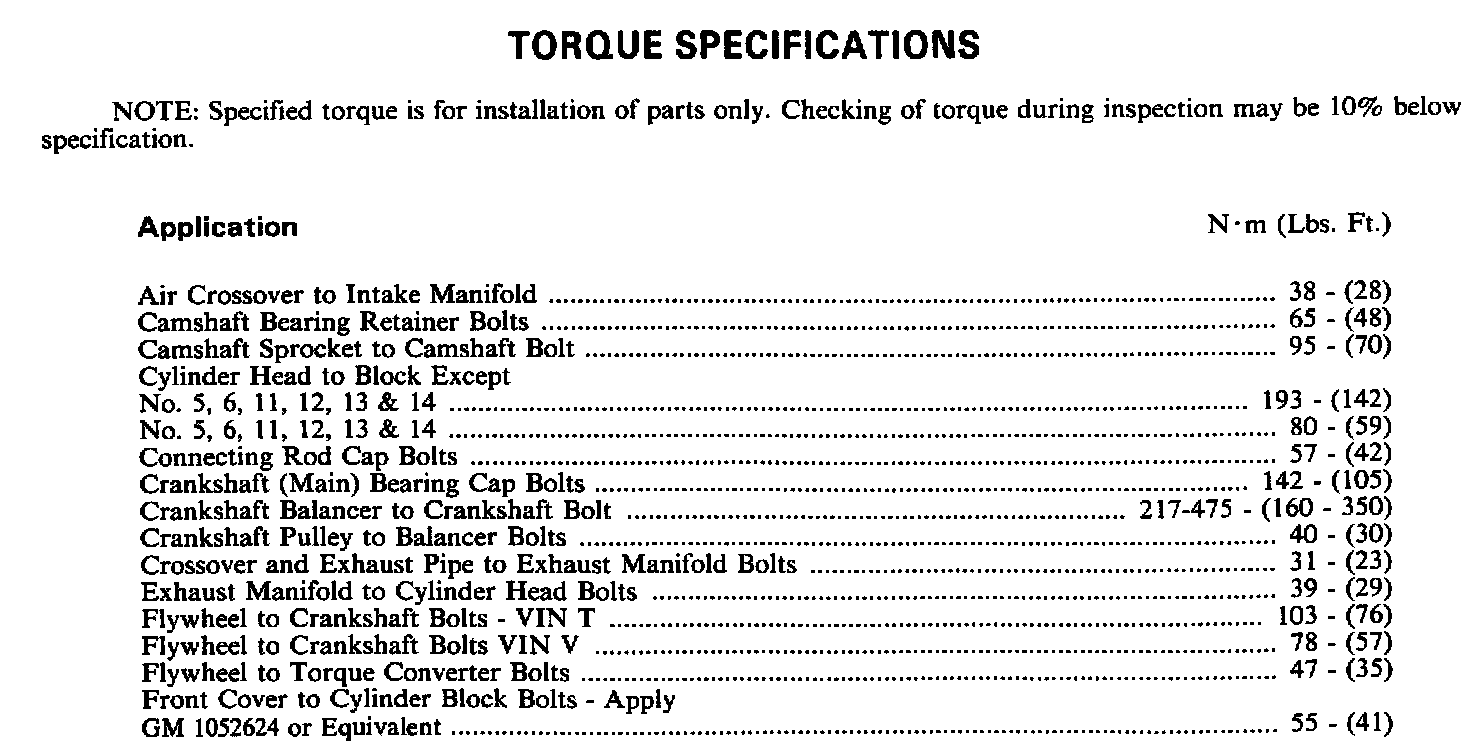

Torque Specifications:

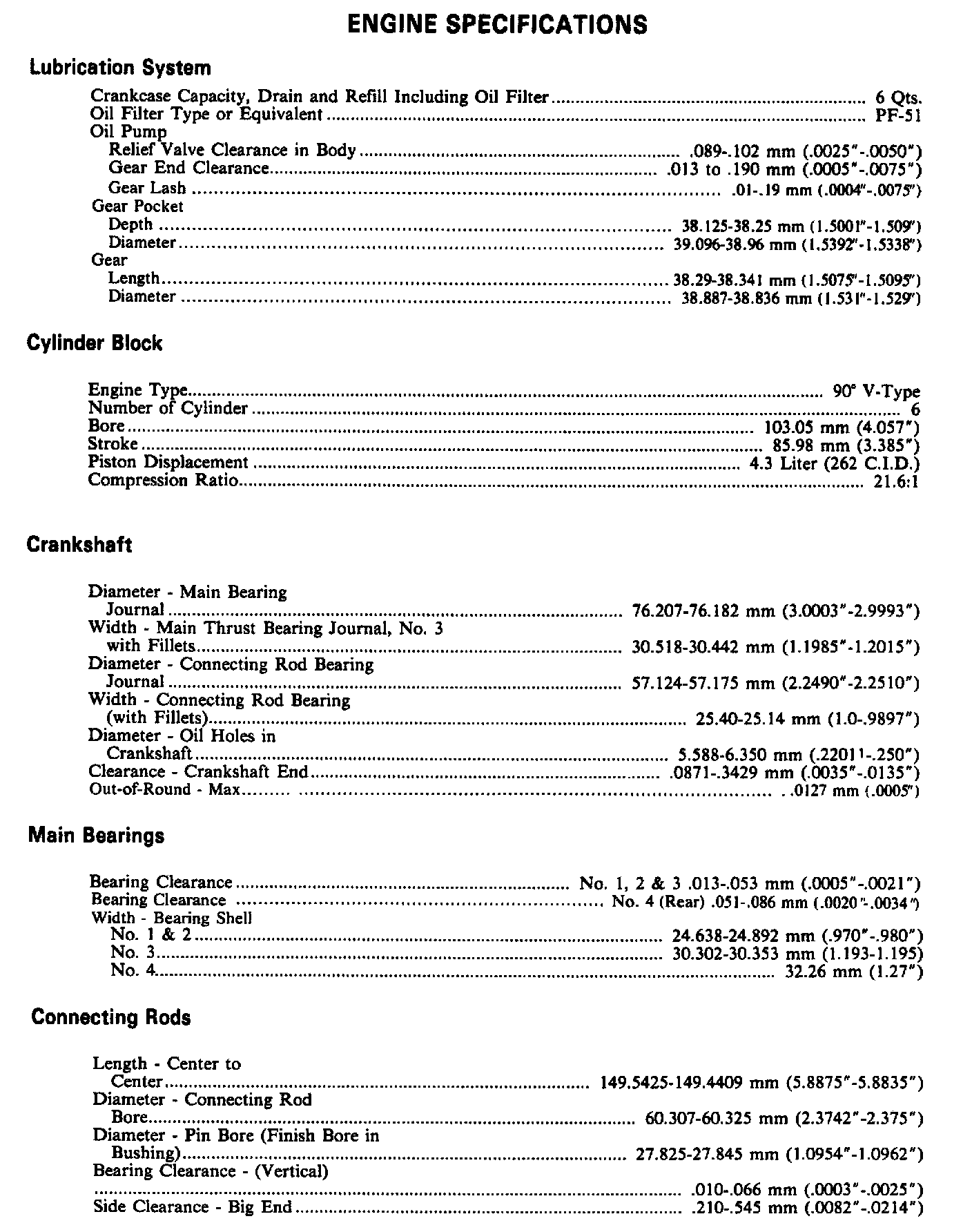

Continued Torque & Engine Specifications:

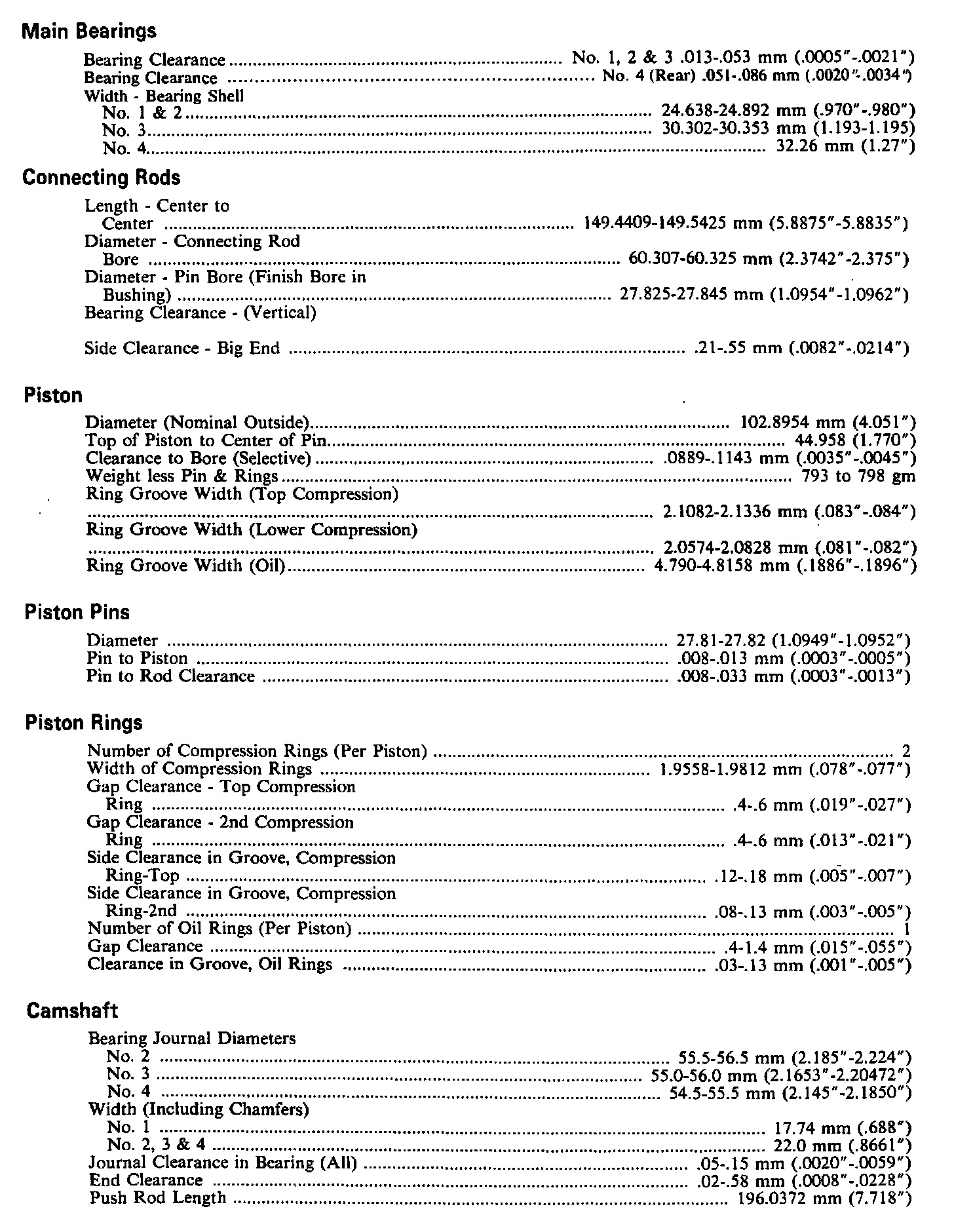

Continued Engine Specifications:

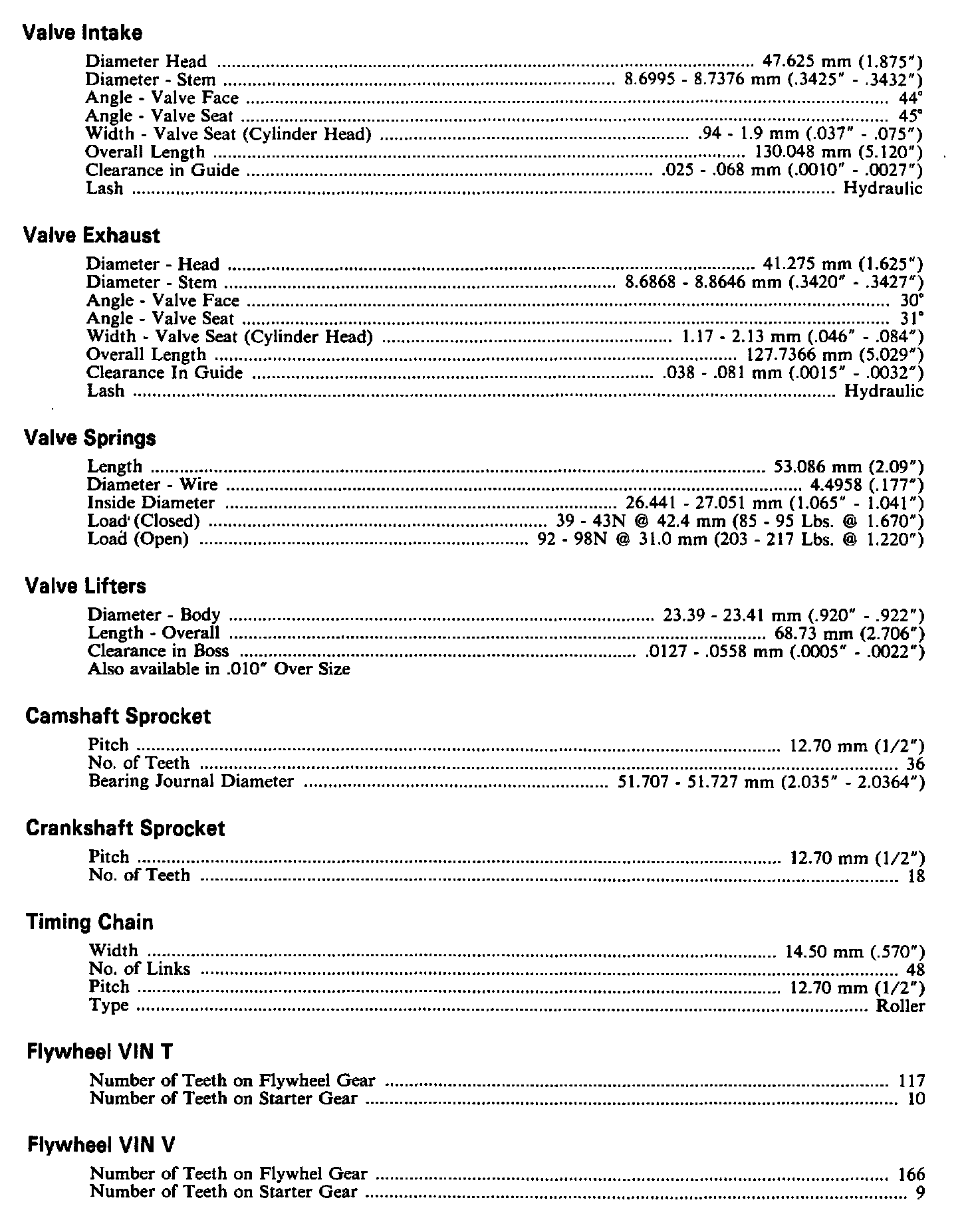

Continued Engine Specifications:

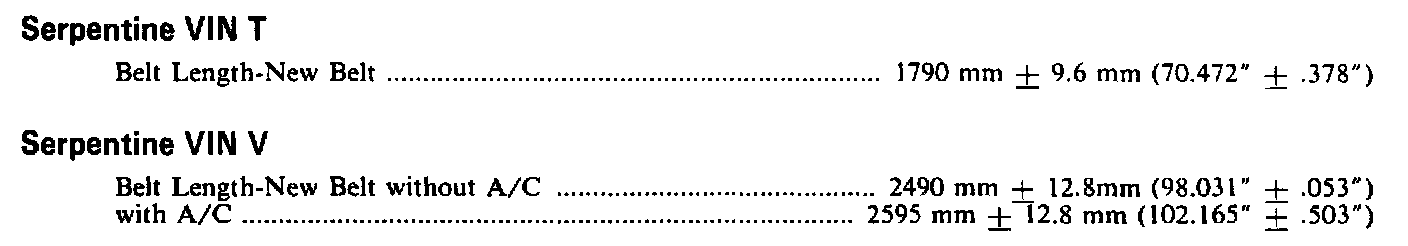

Continued Engine Specifications:

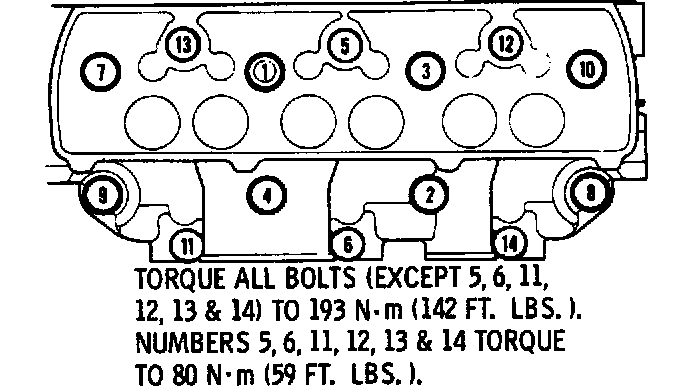

Cylinder Head Sequence:

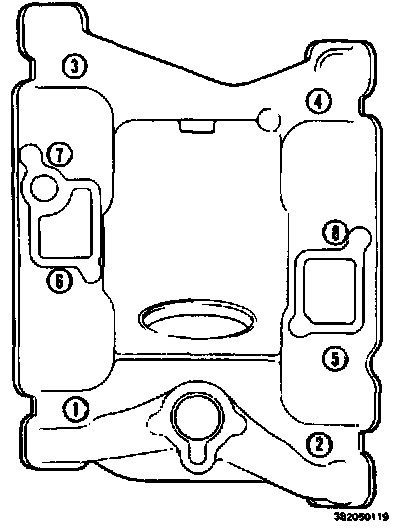

Intake Manifold Sequence:
