DERM Module Bracket
DERM Module Bracket

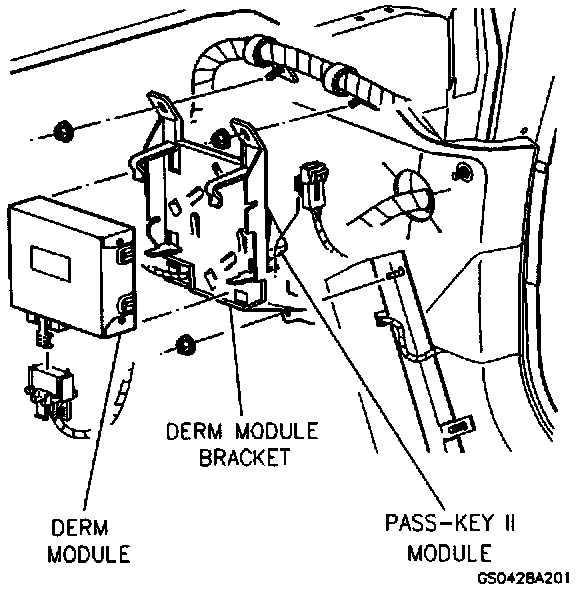

Below I/P, RH Side, DERM Area:

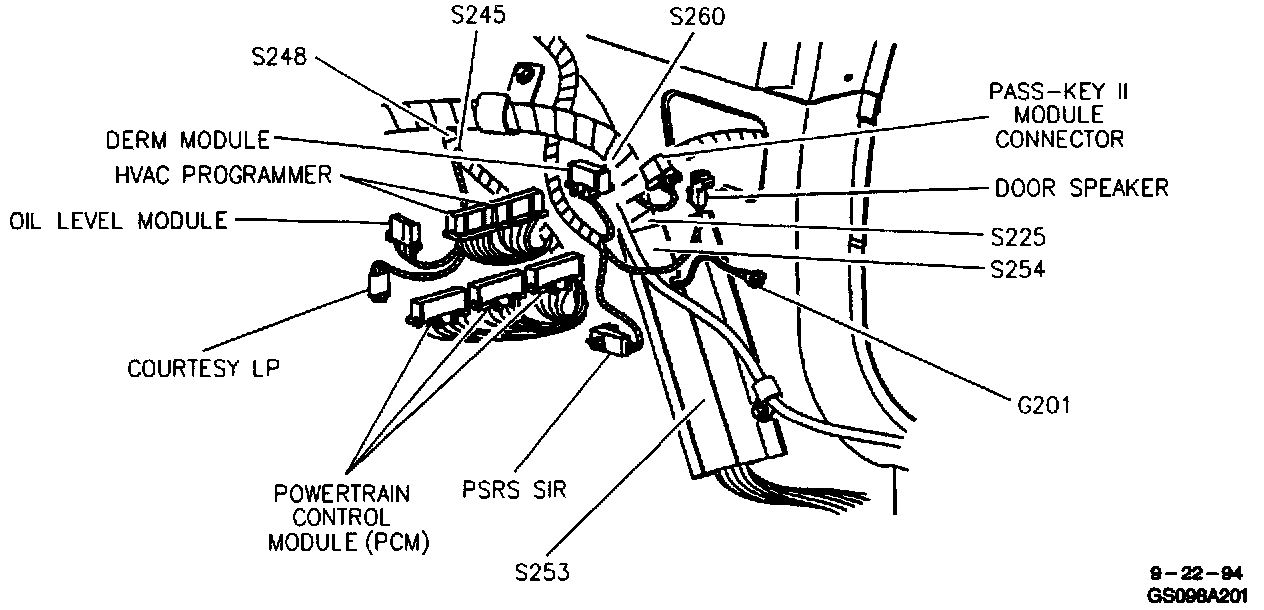

Harness Connectors, Below RH Side Of I/P:
