Home >> Buick >> 1996 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Ignition Control Module

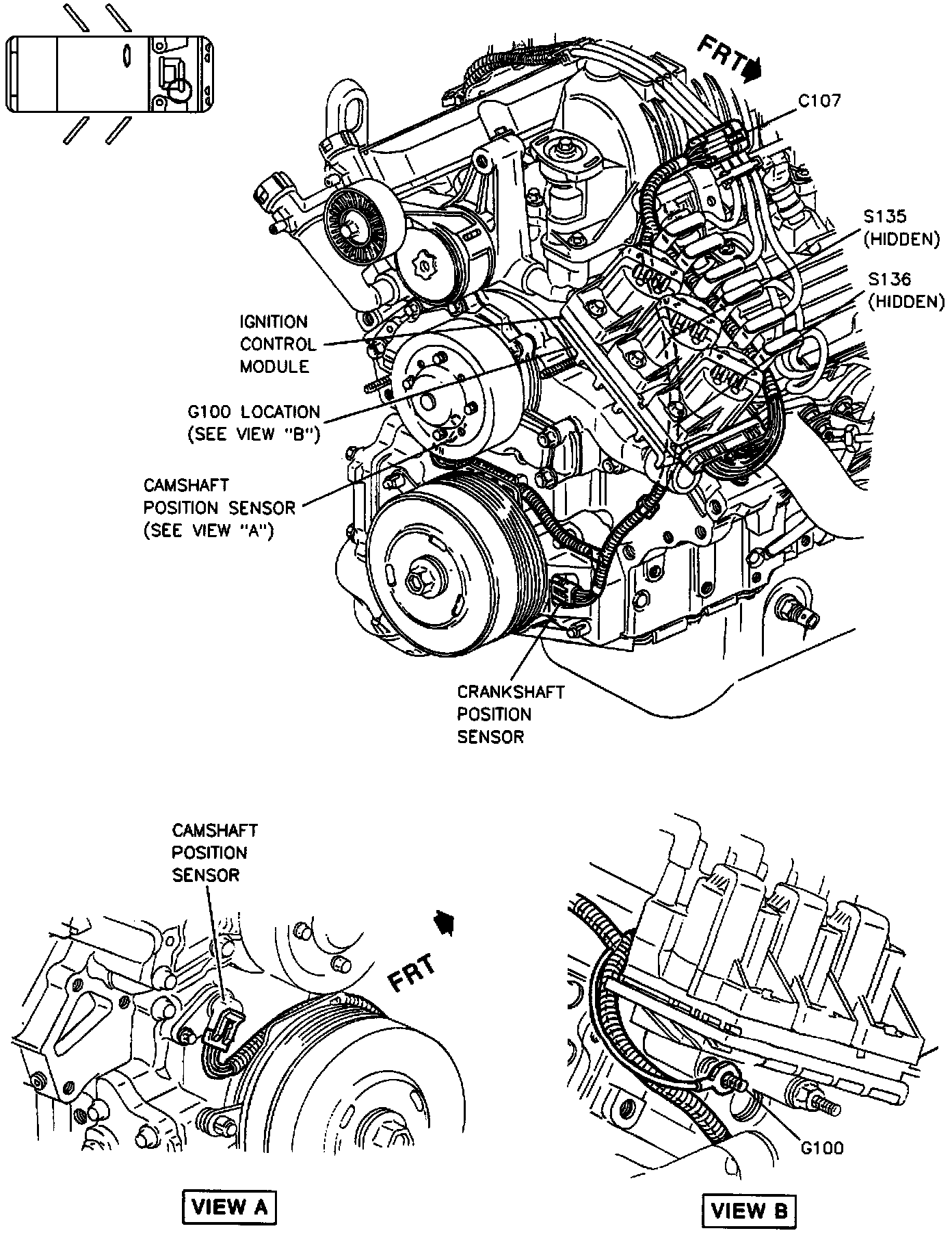

Ignition Control Module

RH Front Of Engine:
