Body Control Module
>>
Body Control Module (BCM) C2
Body Control Module (BCM) C2

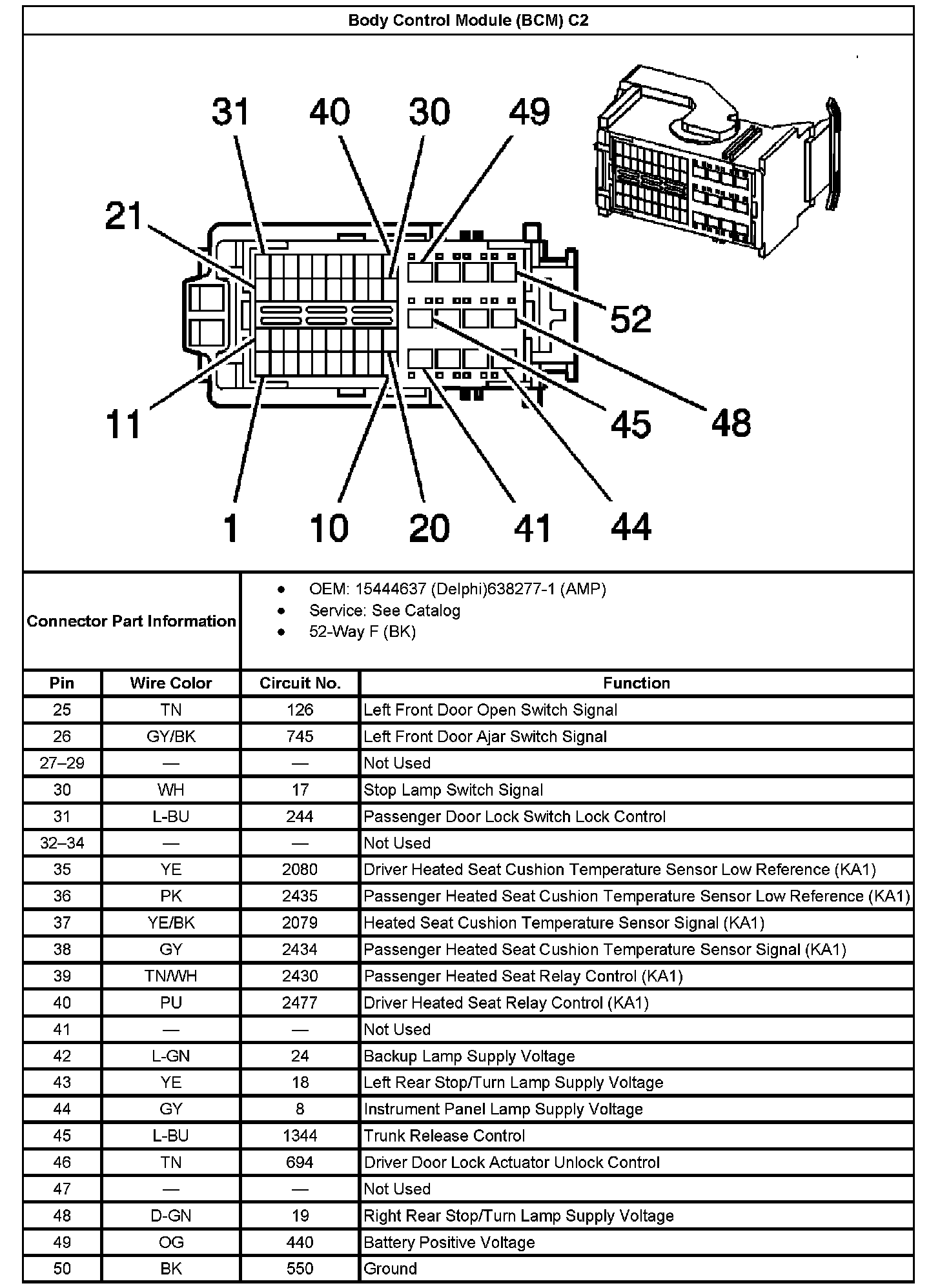

Body Control Module (BCM) C2 Part 1:

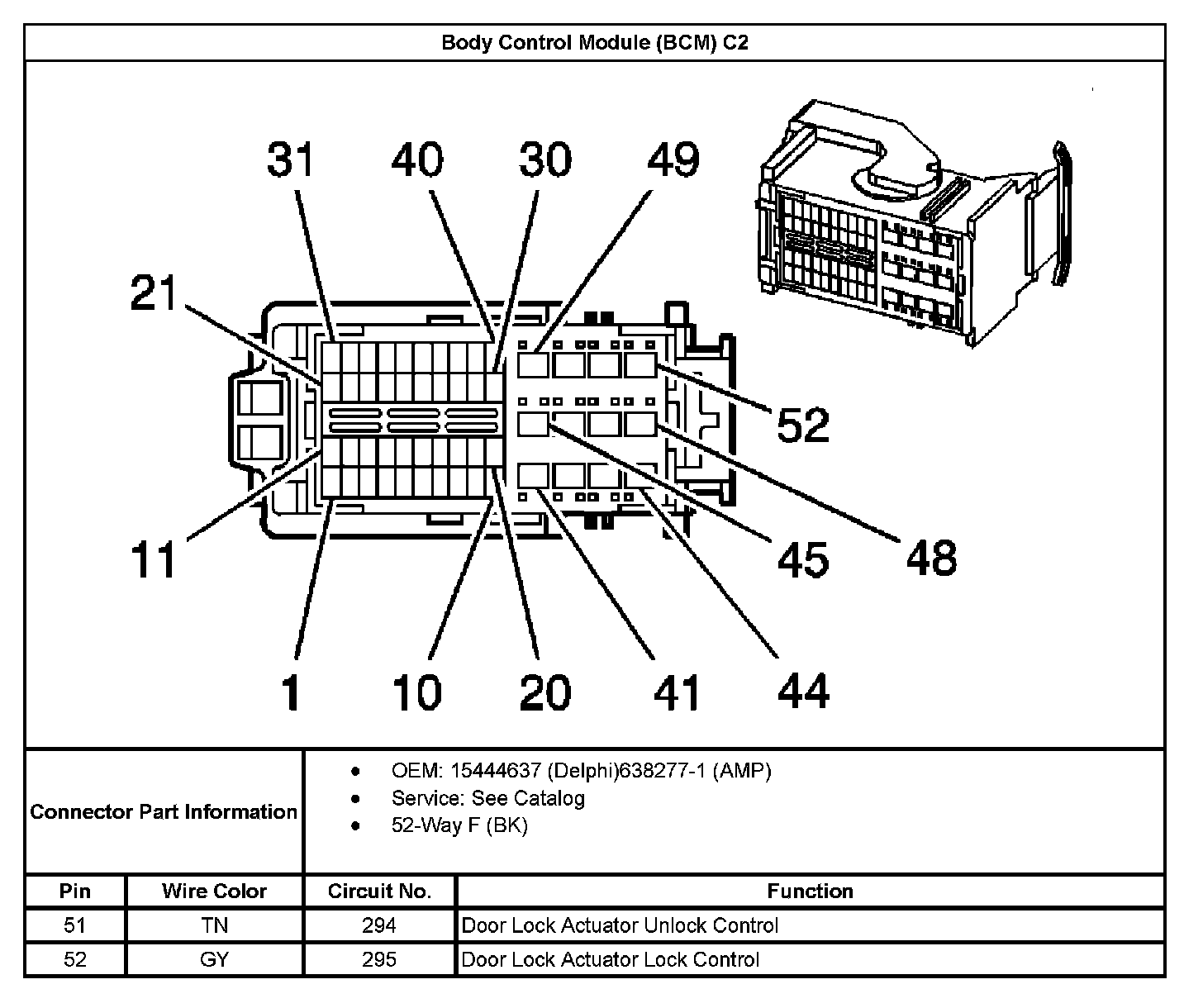

Body Control Module (BCM) C2 Part 2:

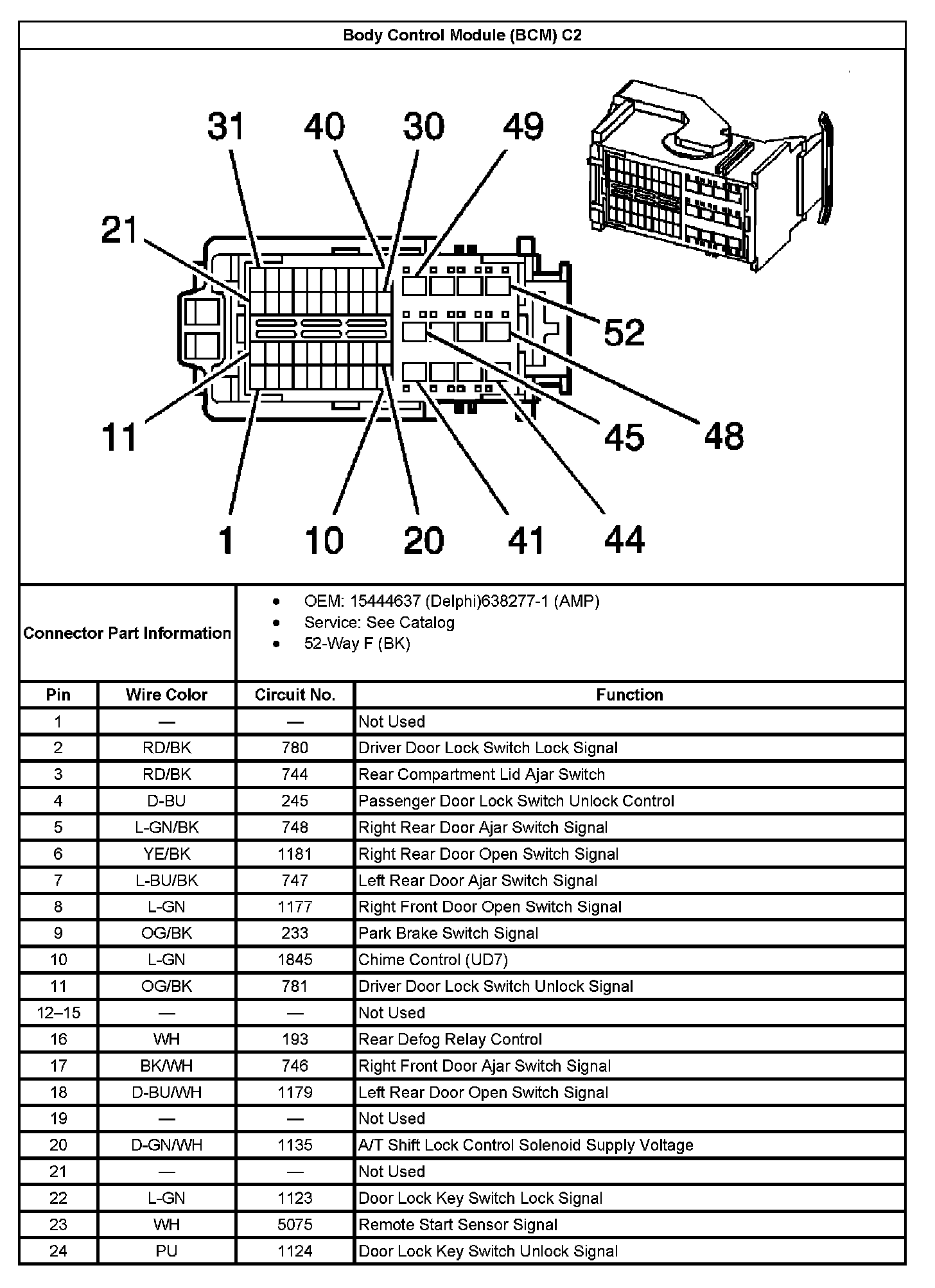

Body Control Module (BCM) C2 Part 3:
