Buick
>>
2005
>>
LaCrosse V6-3.8L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System Module
Global Positioning System Module

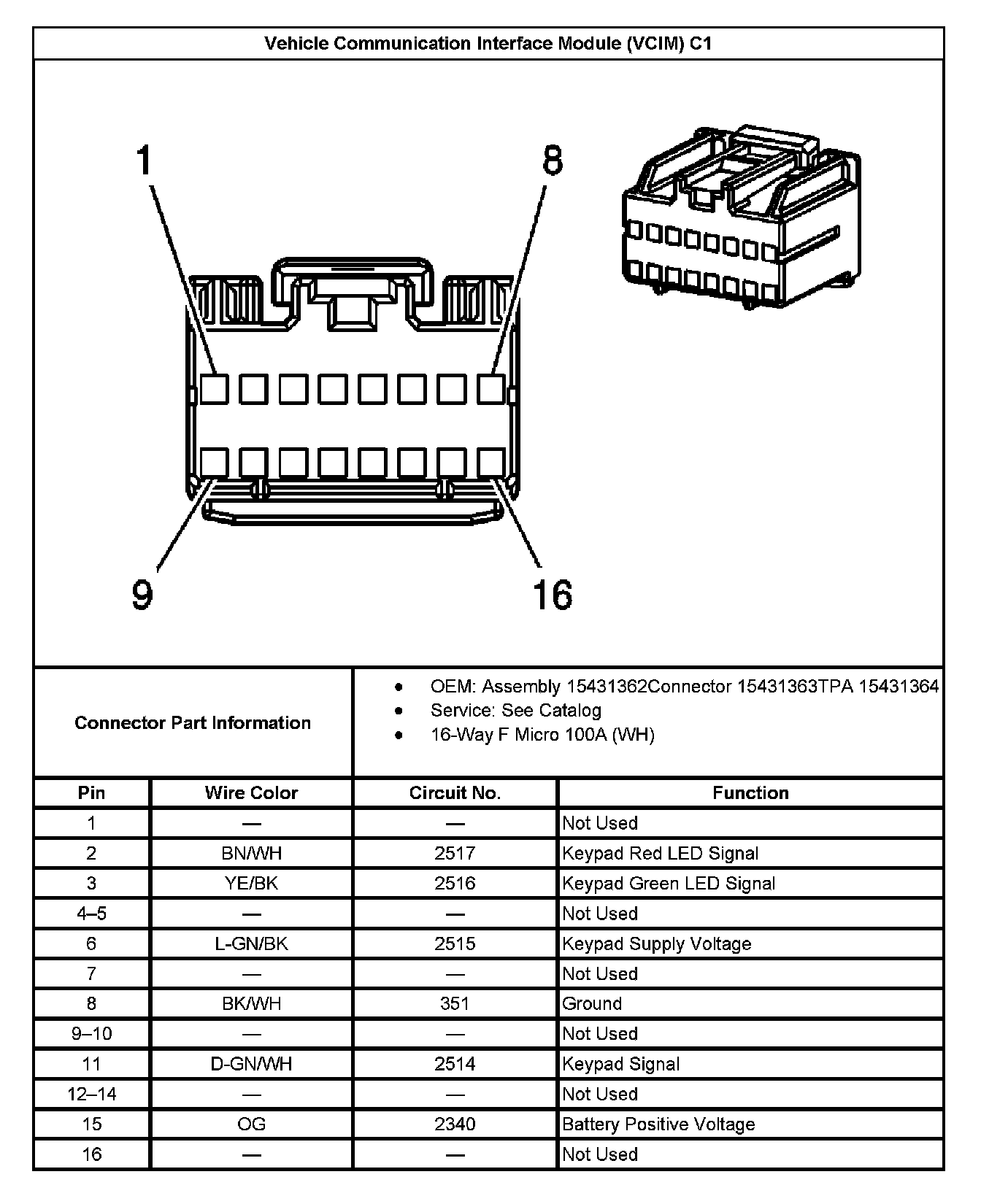

Vehicle Communication Interface Module (VCIM) C1:

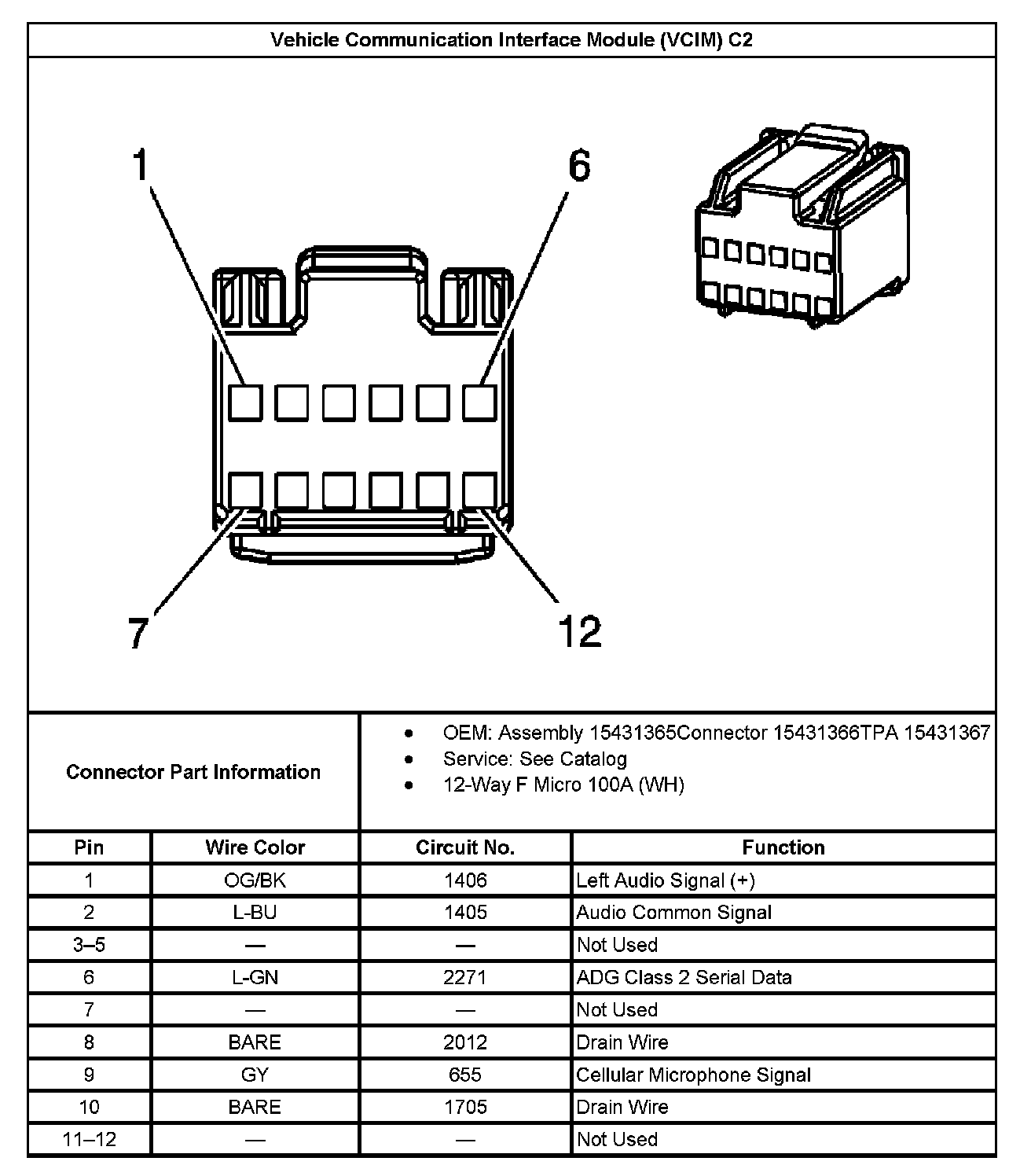

Vehicle Communication Interface Module (VCIM) C2:
