Home >> Buick >> 2005 >> LaCrosse V6-3.8L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

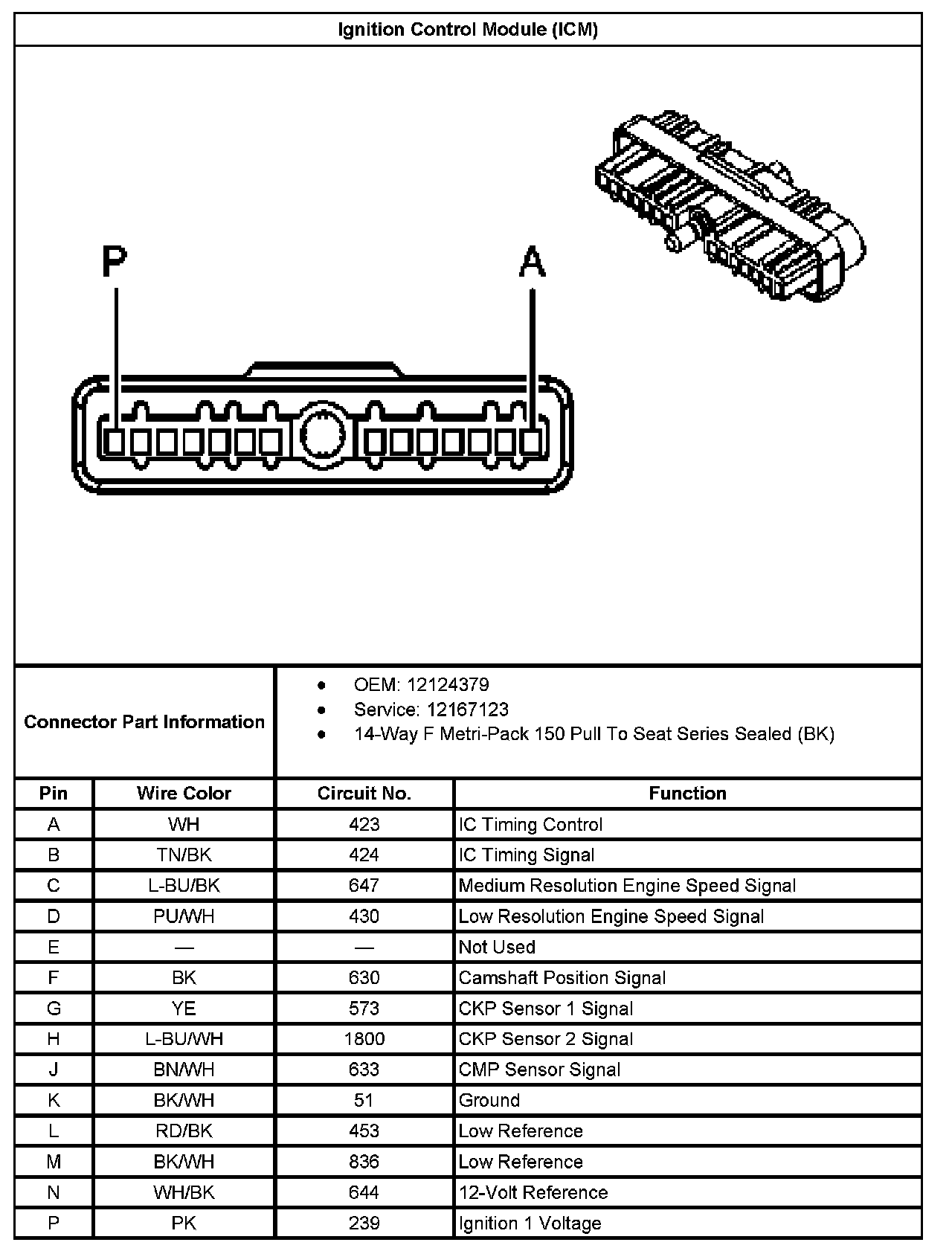

Ignition Control Module (ICM):
