Home >> Buick >> 2005 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Dash Integration Module (DIM) C3

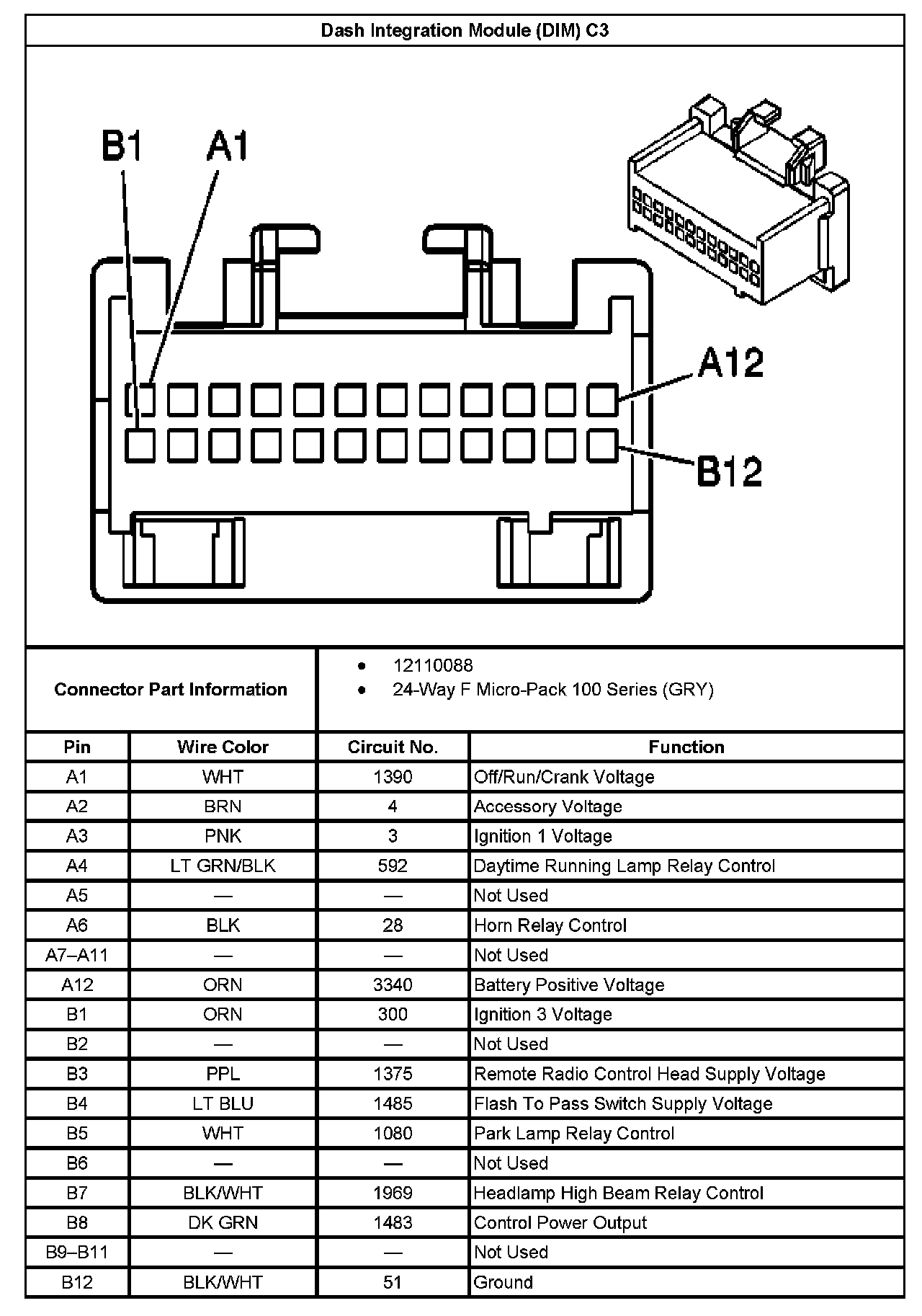

Dash Integration Module (DIM) C3

Dash Integration Module (DIM) C3:
