Powertrain Control Module (PCM) 80-Way Blue Connector C1 Details

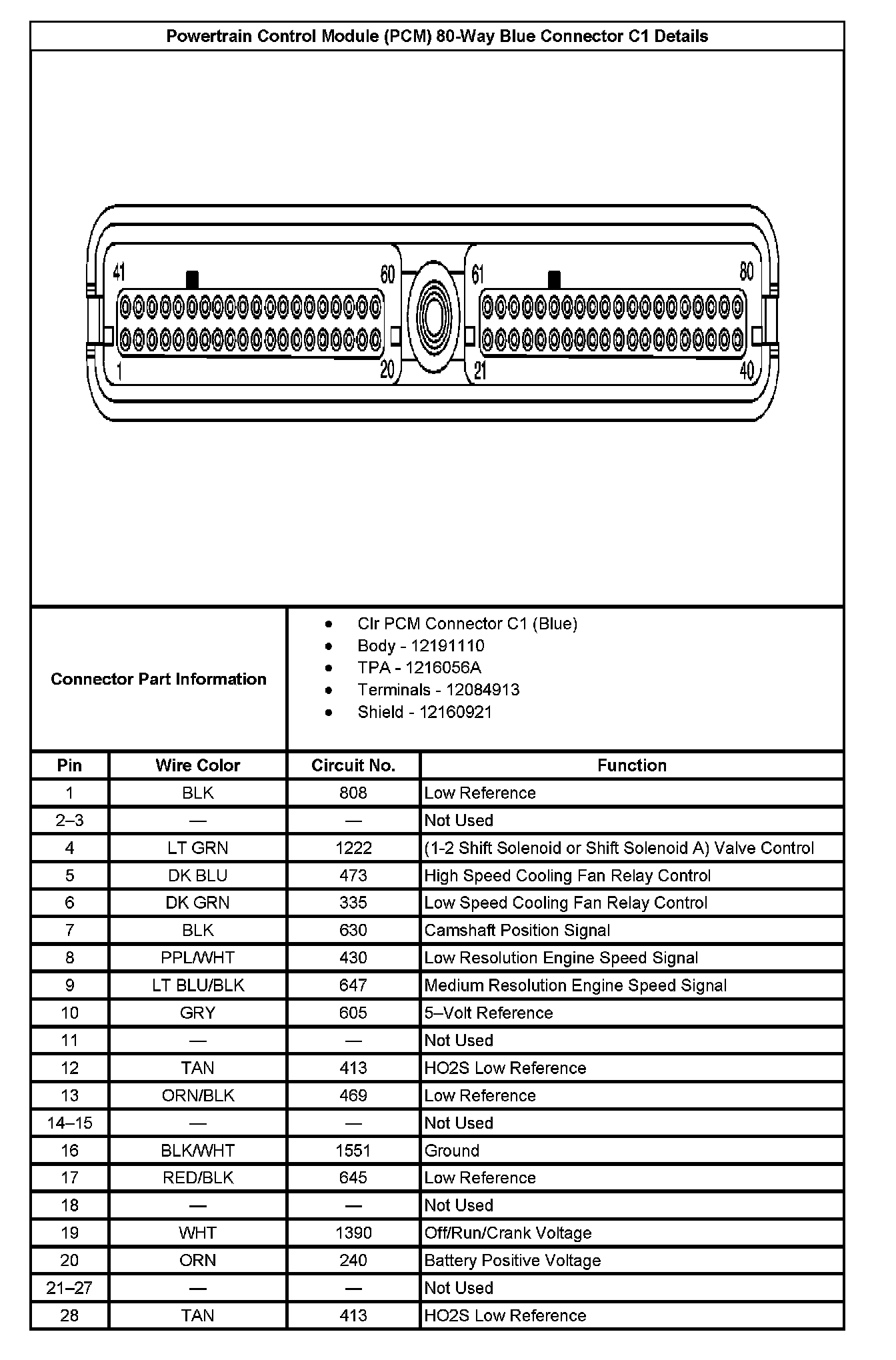

Powertrain Control Module (PCM) 80-Way Blue Connector C1 Details Part 1:

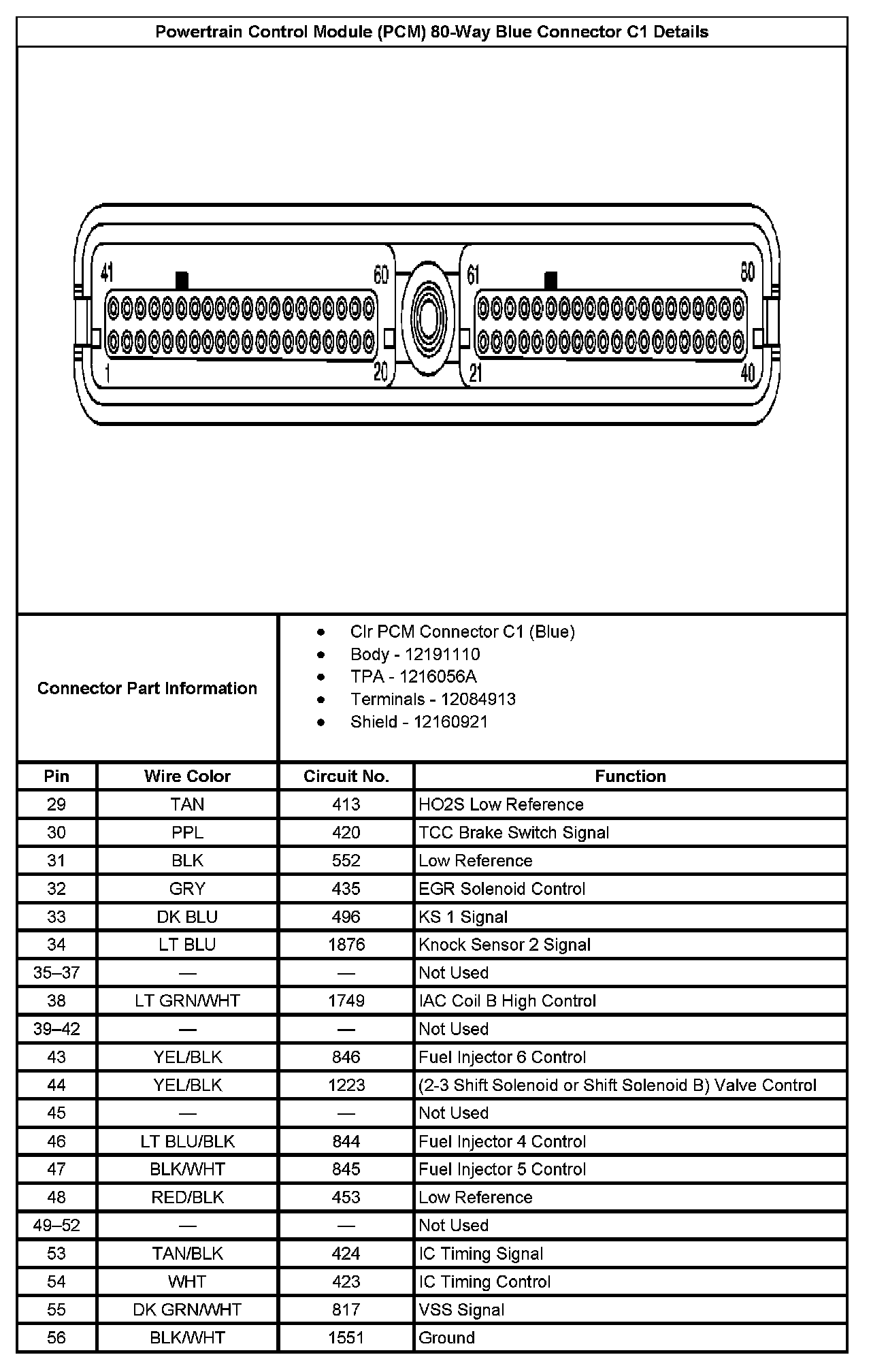

Powertrain Control Module (PCM) 80-Way Blue Connector C1 Details Part 2:



Powertrain Control Module (PCM) 80-Way Blue Connector C1 Details Part 3:

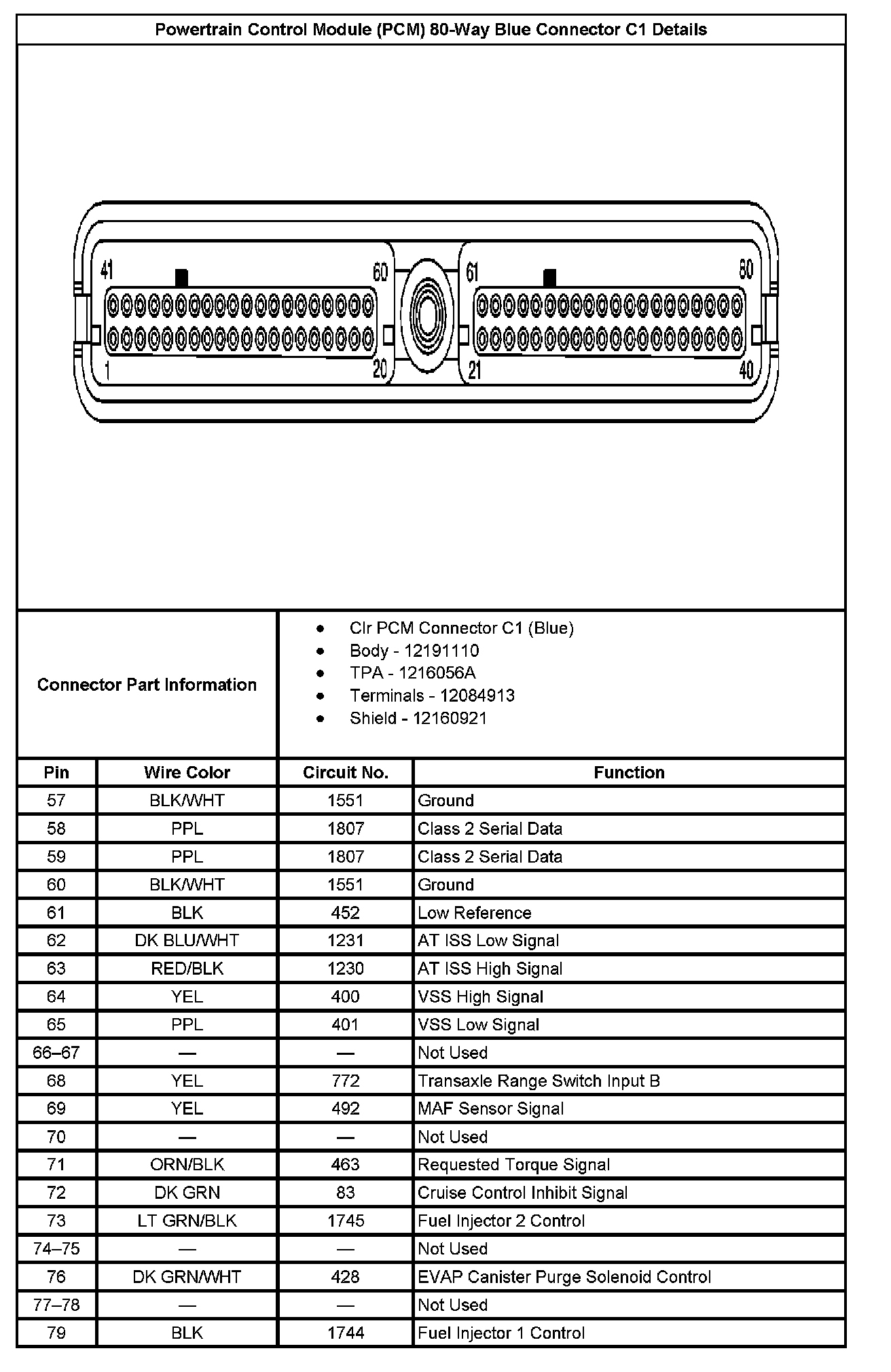

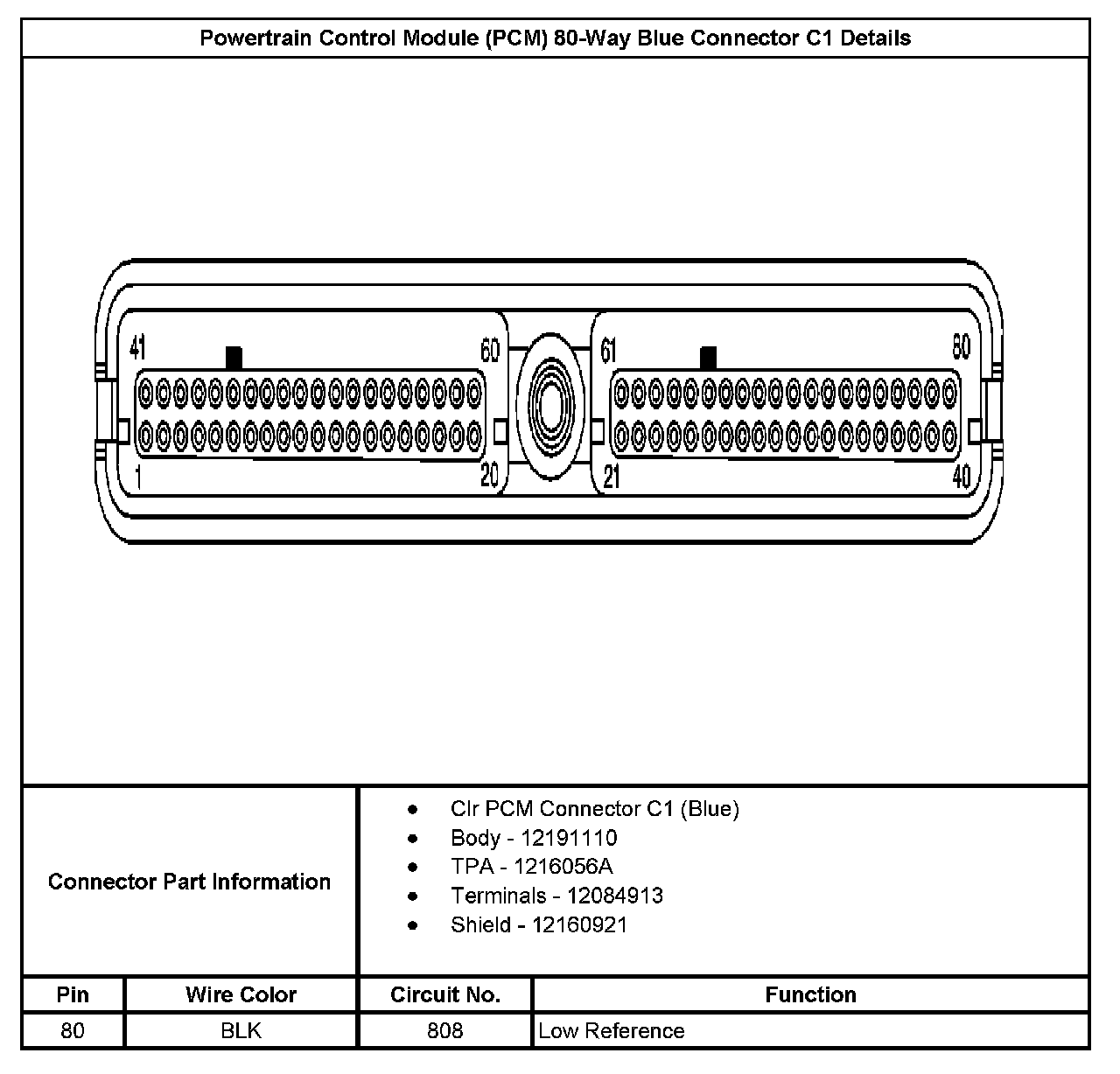

Powertrain Control Module (PCM) 80-Way Blue Connector C1 Details Part 4:
