Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Cruise Control Module

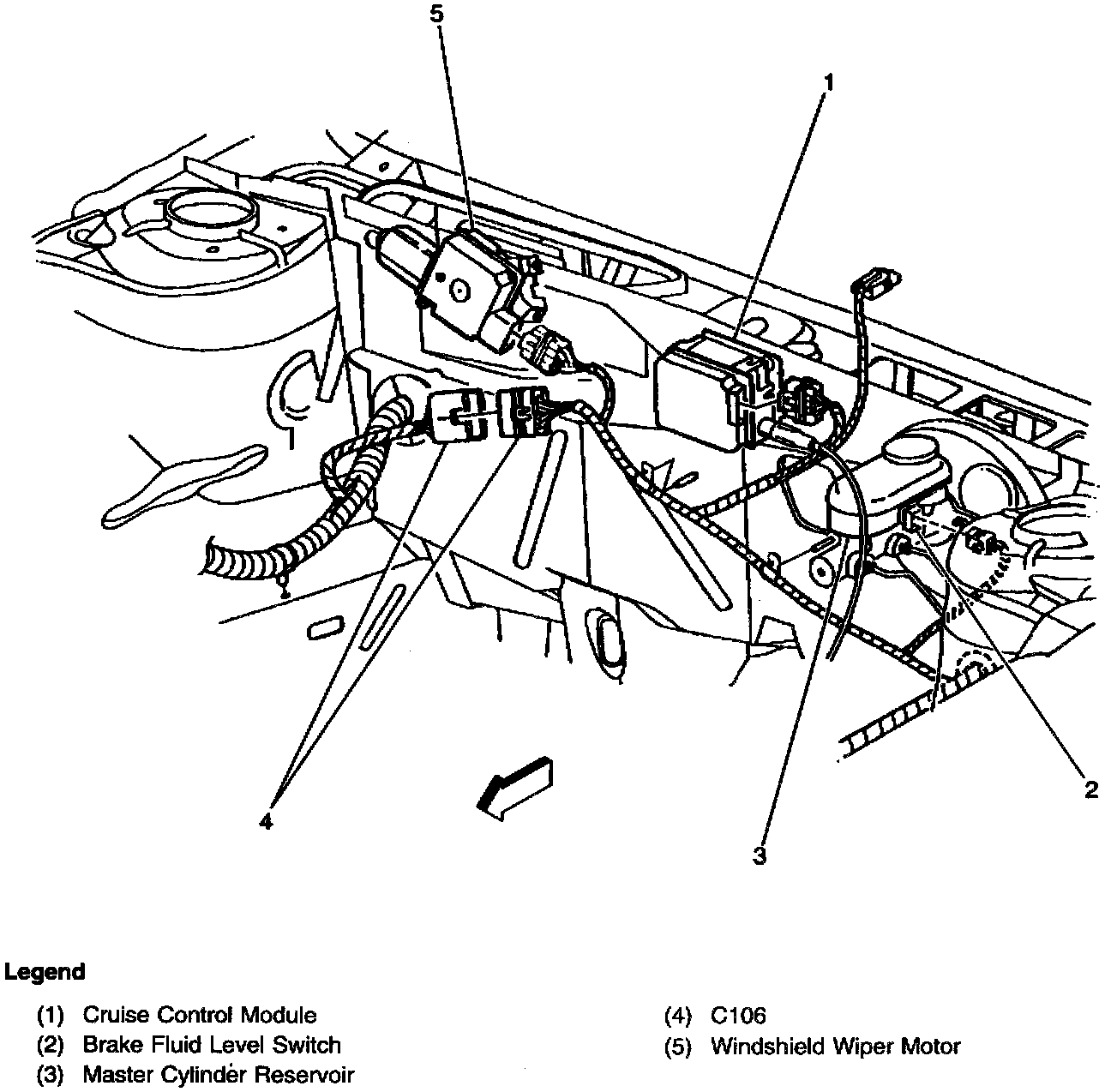

Cruise Control Module

Engine Compartment, Rear:






Center rear of the engine compartment, near the power brake booster
